Daewoo HC-4130X User Manual

3. Location of Users Controls
5
1. DOLBY DIGITAL indicator
2. Pro Logic II indicator
3. DTS indicator
4. TITLE indicator
5. DVD indicator
6. CHAPTER indicator
7. VCD indicator
8. TRACK indicator
9. MP3 indicator
10. DSP indicator
11. DRC indicator
12. SLEEP indicator
13. STEREO indicator
14. REPEAT indicator
15. RANDOM indicator
16. ALL indicator
17. TOTAL indicator
18. MUTE indicator
19. REMAIN indicator
20. PBC(Playback Control) indicator
21. EQ indicator
22. PBC(Playback Control) indicator
23. RDS indicator
24. PAUSE indicator
25. PLAY indicator
26. Multi-Function Information Displaying Area
1 4 13 15 18 20 21 232 6 8 10
3 5 7 9 11 12 14 16 17 19 22
25
24
26

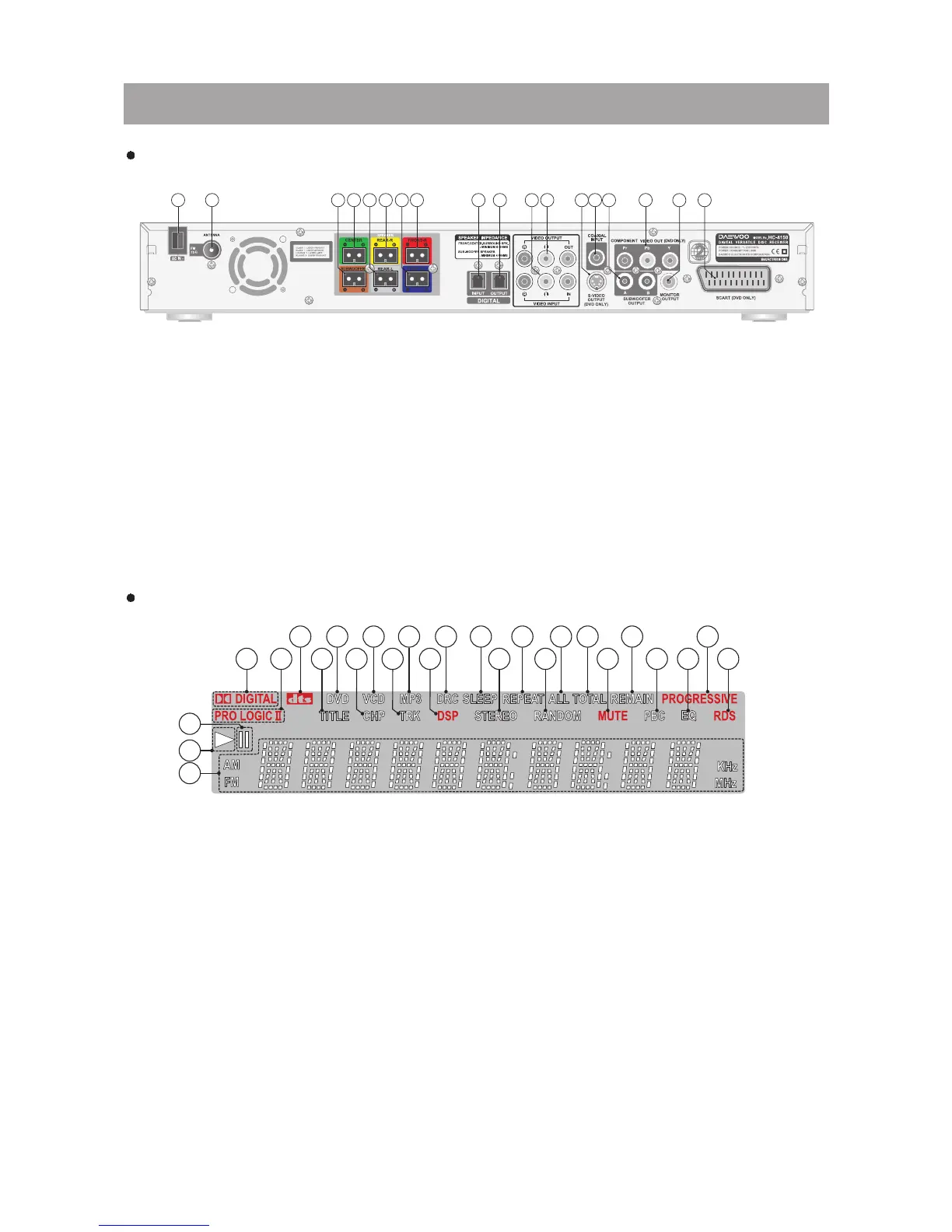

Rear Panel
Display
1. Power cord
2. FM ANTENNA connector
3. SUBWOOFER SPEAKER connectors
4. CENTER SPEAKER connectors
5. REAR-L SPEAKER connectors
6. REAR-R SPEAKER connectors
7. FRONT-L SPEAKER connectors
8. FRONT-R SPEAKER connectors
9. DIGITAL INPUT jack
3 5 7
1 2 4 6 8
11
12
13 15 18
14
17
169 10
10. DIGITAL OUTPUT jackj
11. VIDEO IN jacks
12. VIDEO OUT jacks
13. S VIDEO MONITOR OUT jack
14. COAXIAL INPUT jack
15. SUBWOOFER OUTPUT A/B connectors
16. COMPONENT VIDEO OUTPUT Y/Pb/Pr jacks (Optional)
17. MONITOR OUT jack
18. SCART jack

Daewoo HC-4130X Specifications

General

Brand	Daewoo
Model	HC-4130X
Category	Home Theater System
Language	English
