Daewoo KOG-3605 - High Voltage Component Removal

18

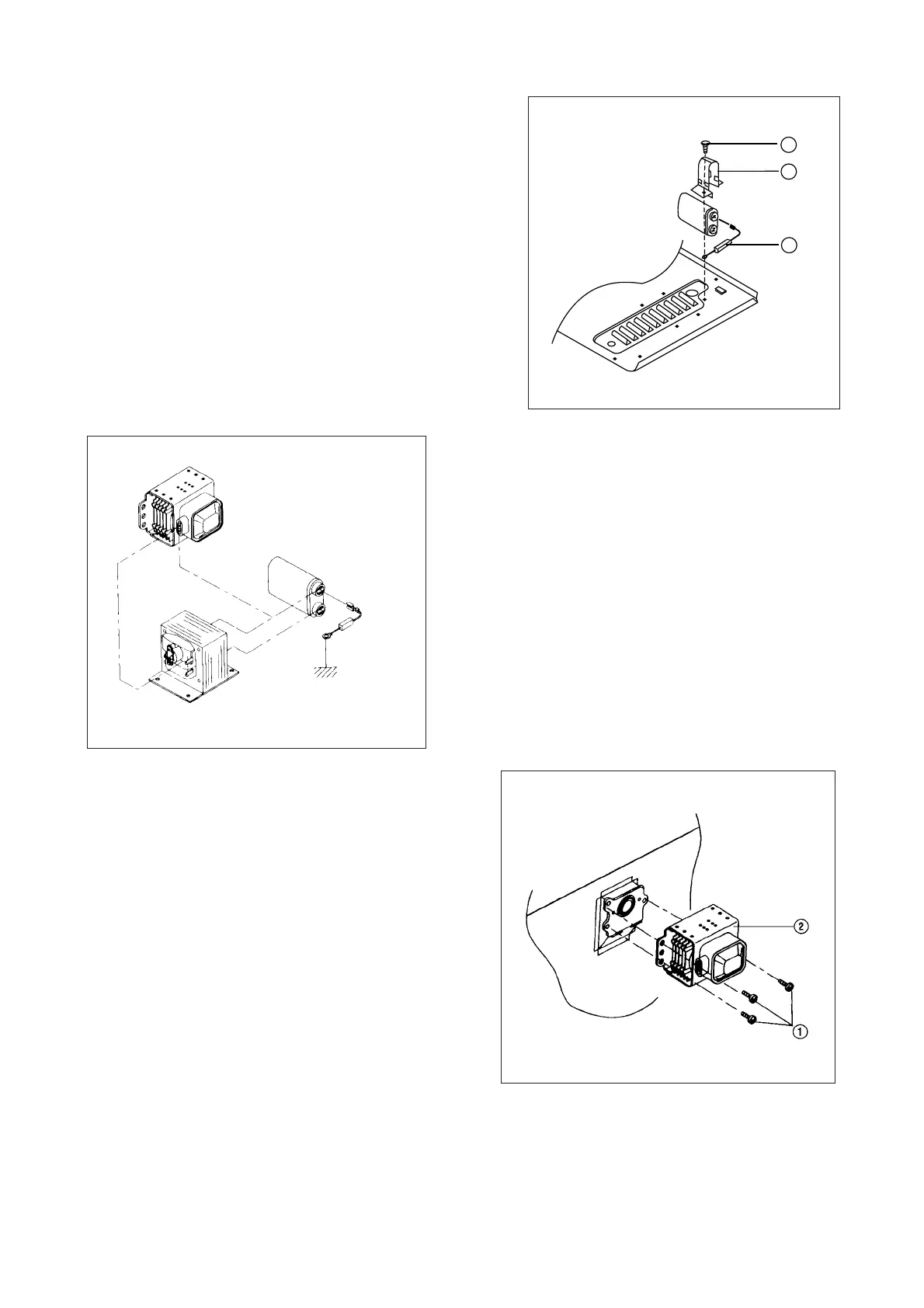

6. To remove high voltage capacitor.
(1) Remove a screw ¤ which secure the grounding ring
terminal of the H.V. diode ¤Ł and the capacitor holder ¤Ø.
(2) Remove the H.V. diode ¤Ł from the capacitor holder ¤Ø.
(3) Reverse the above steps for reassembly.
High voltage circuit wiring
7. To remove magnetron.
(1) Remove three screws ¤ which secure the
magnetron ¤Ł.
(2) Remove the magnetron ¤Ł.
(3) Reverse the above steps for reassembly.
1
3
2
Magnetron
H.V. Capacitor
H.V. Transformer
H.V. Diode
