Daewoo KOG-3605 - Control Panel Parts List

28
REF NO PART CODE PART NAME DESCRIPTION Q’TY REMARK
3516903610 KOG-3605
1B1 BUTTON DOOR OPEN ABS
B2
4416D55061
BUTTON SPRING
SWPA 1 KOG-3605
3513402610KOG-3605
B3 KNOB VPC ABS
1
3516711400 KOG-3605
B4 CONTRON-PANEL ABS 1
B5
3513701400
LEVER DOOR OPENPOM
1 KOG-3605
B6 4415A66910 SW MICRO VP-531A-OF 1
B7 7121301511 SCREW TAPPING T2S PAN 3X15 MFZN 1
B8 4415A17352 SW MICRO VP-533A-OF 1
B9 7121301511 SCREW TAPPING T2S PAN 3X15 MFZN 1
B10 3517400500 COUPLER VPC KNOB POM 1
B11 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 1
B12 3517400400 COUPLER TIMER POM 1
3513402510KOG-3605
B13 KNOB ABS 1
B14 3518203800 TIMER KN35MKD 24E-P 1
B15 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 1
B16 3512764200 HARNESS TIMER KOG-36150S 1

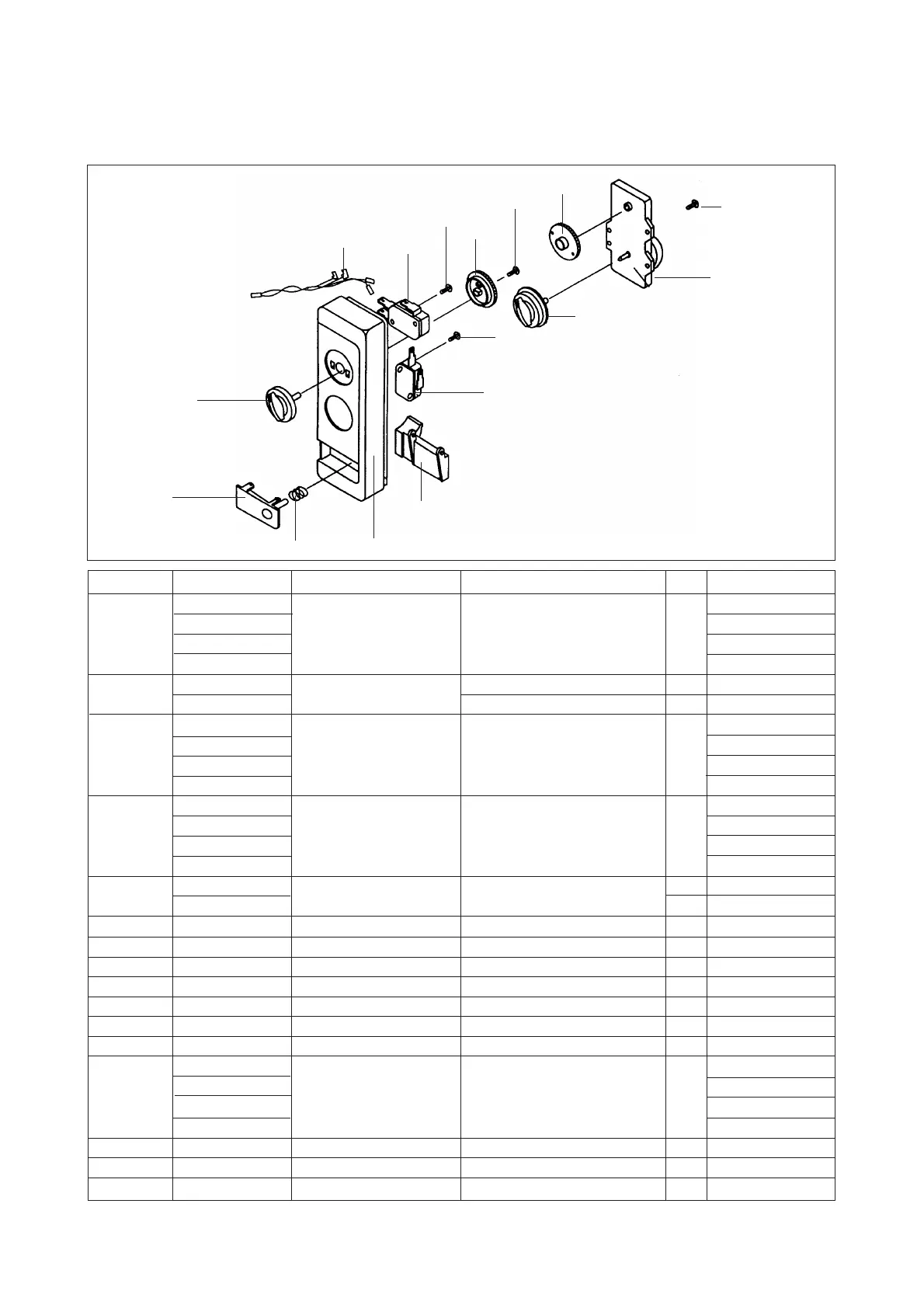

2. Control Panel Ass’y
CONTROL PANEL ASSEMBLY :3516713840
B16
B6
B7
B10
B11
B12
B15
B14
B13
B9
B8
B5
B4B2
B1
B3
