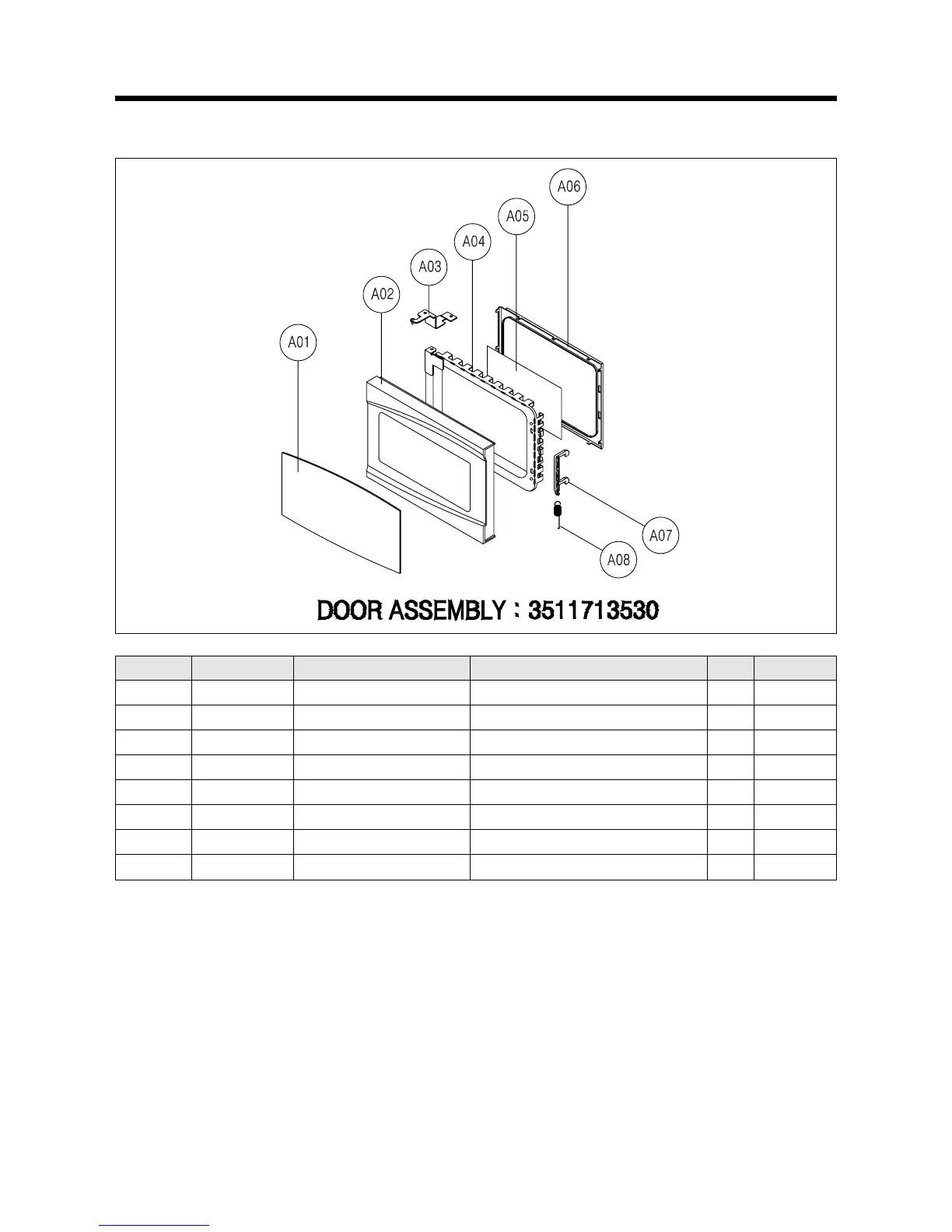

3. To remove door parts.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
A01 3517009920 BARRIER SCREEN *O SAN T1.5 1
A02 3511718720 FRAME DOOR KOR-137H9A27 SILICON 1
A03 3515202900 STOPPER HING *T AS KOR-121M0A 1
A04 3511713600 DOOR PAINTING AS KOR-131G0A 1
A05 3517006400 BARRIER SCREEN *I PE T1.0 1
A06 3512302200 GASKET DOOR PP 5113MF6 1
A07 3513101400 HOOK POM 1
A08 3515101900 SPRING PW-1 1
(1) Remove the gasket door from the door painting assembly.
(2) Remove the barrier screen inner from the door painting assembly.
(3) Remove the frame door from the door painting assembly.
(4) Remove the stopper hinge top assembly from the door painting assembly.
(5) Remove the spring hook and the hook from the door painting assembly.
(6) Remove the barrier screen outer from the frame door.
(7) Reverse the above steps for reassembly.
