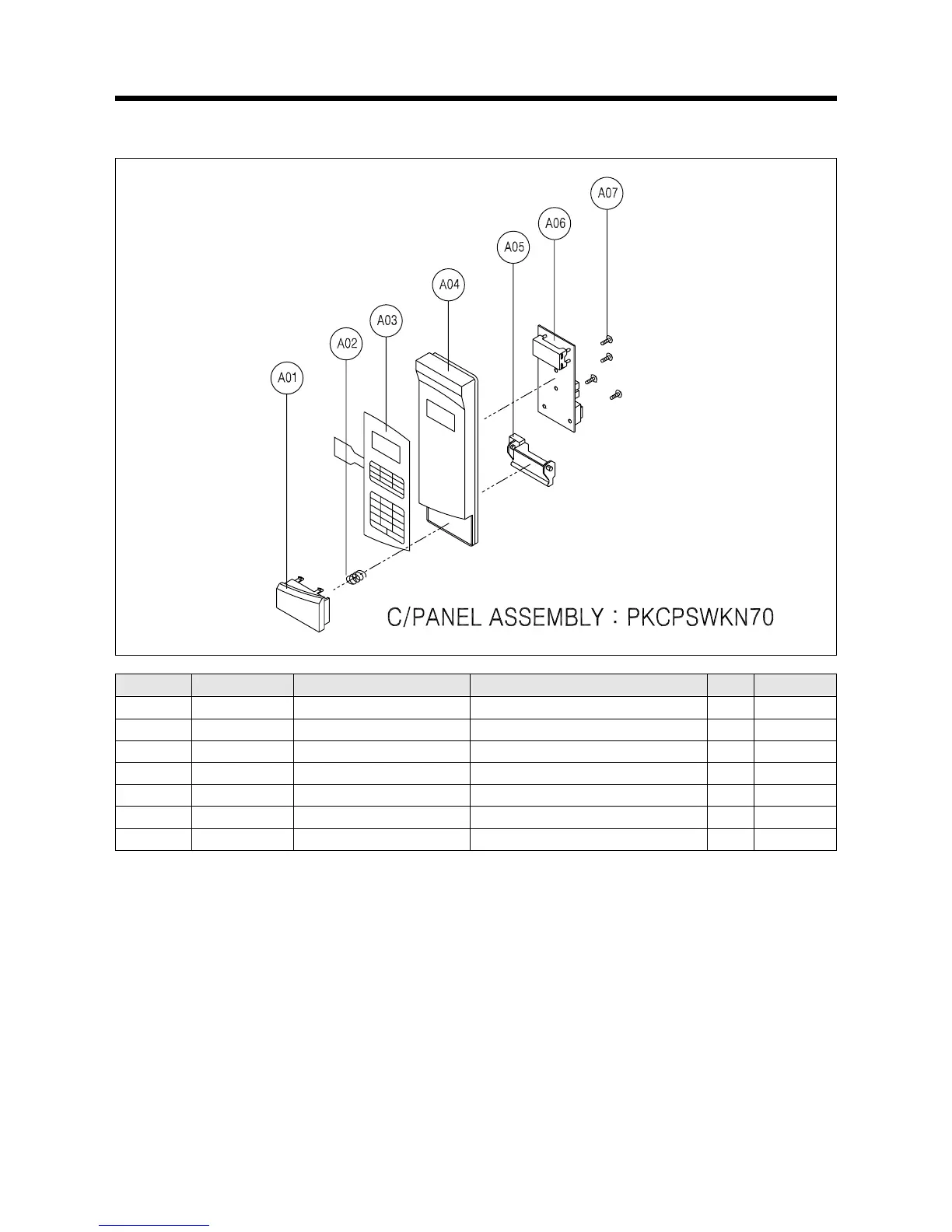

5. To remove control panel parts.
1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
2) Remove four screws which secure the PCB assembly to control panel.
3) Disconnect wire flat from the connector of the PCB assembly.
4) Remove the PCB from the control panel.
5) Remove the membrane, lever door open, spring button and button door open from the control panel.
6) Reverse the above steps for reassembly.
REF NO. PART CODE PART NAME DESCRIPTION QāTY REMARK
B01 3516908910 BUTTON DOOR OPEN ABS SG-0760K, SG-175 1
B02 441G430171 SPRING BUTTON SWP DIA. 0.7 1
B03 3518523120 SWITCH MEMBRANE KOR-137H9A27 1
B04 3516733210 CONTROL PANEL ABS SG-0760D, SG-175 1
B05 3513702310 LEVER DOOR OPEN PP 1
B06 PKMPMSKN50 PCB MAIN MANUAL AS KOR-137H9A27 1
B07 7122401211 SCREW TAPPING T2 TRS 4X12 MFZN 4
