11

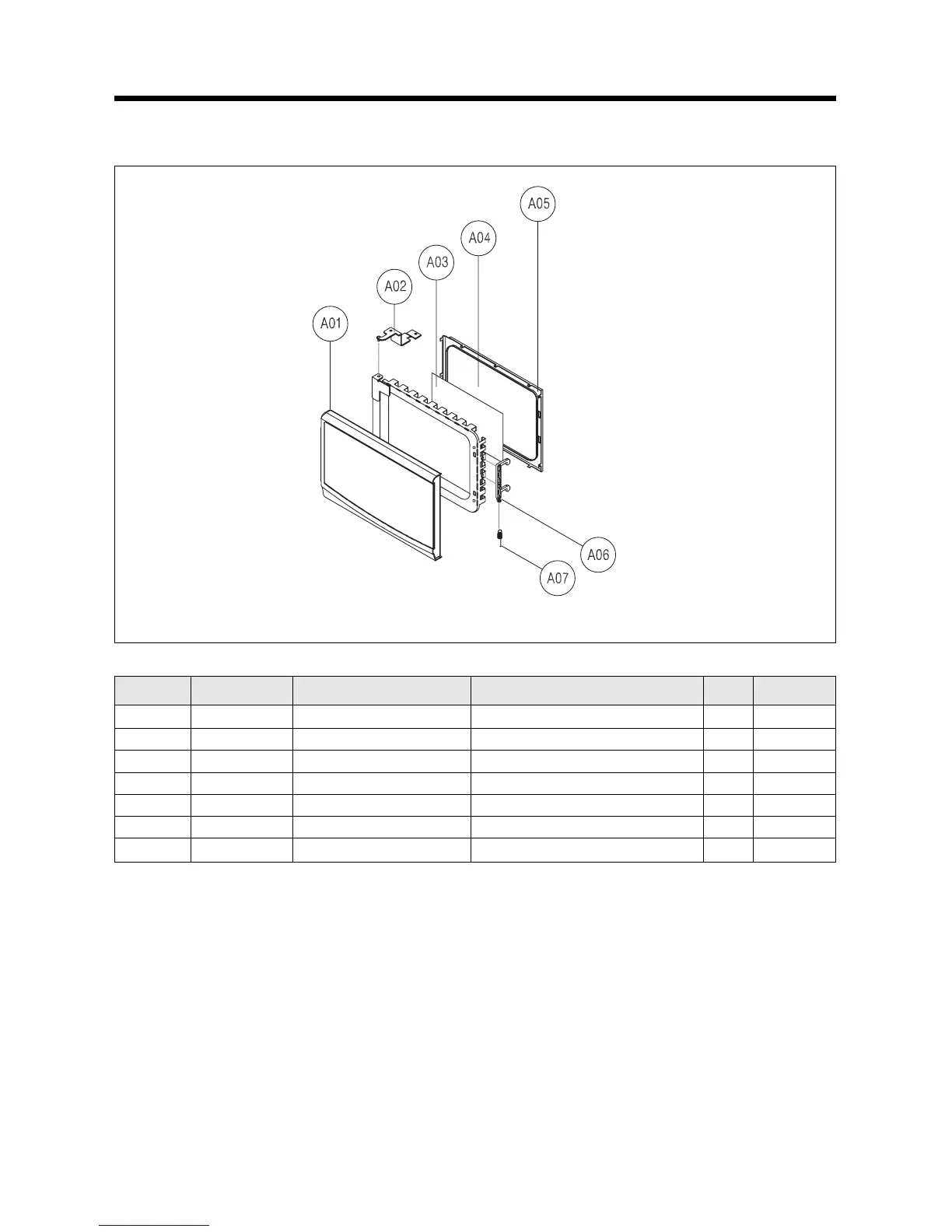

DOOR ASSEMBLY : 3511713550
KOR-146HS
(1) Remove the gasket door from the door painting assembly.
(2) Remove the barrier screen inner from the door painting assembly.
(3) Remove the frame door from the door painting assembly.
(4) Remove the stopper hinge top assembly from the door painting assembly.
(5) Remove the spring hook and the hook from the door painting assembly.
(6) Reverse the above steps for reassembly.
A01 3512211010 FRAME DOOR KOR-136H9A52 SILICON SPRAY 1
A02 3515202900 STOPPER HINGE *T AS KOR-121M0A 1
A03 3511713600 DOOR PAINTING AS KOR-131G0A 1
A04 3517006400 BARRIER SCREEN *I PE T1.0 1
A05 3512302200 GASKET DOOR PP 5113MF6 1
A06 3513101400 HOOK POM 1
A07 3515101900 SPRING PW-1 1
REF. NO PART CODE PART NAME DESCRIPTION Q'TY REMARK
