13

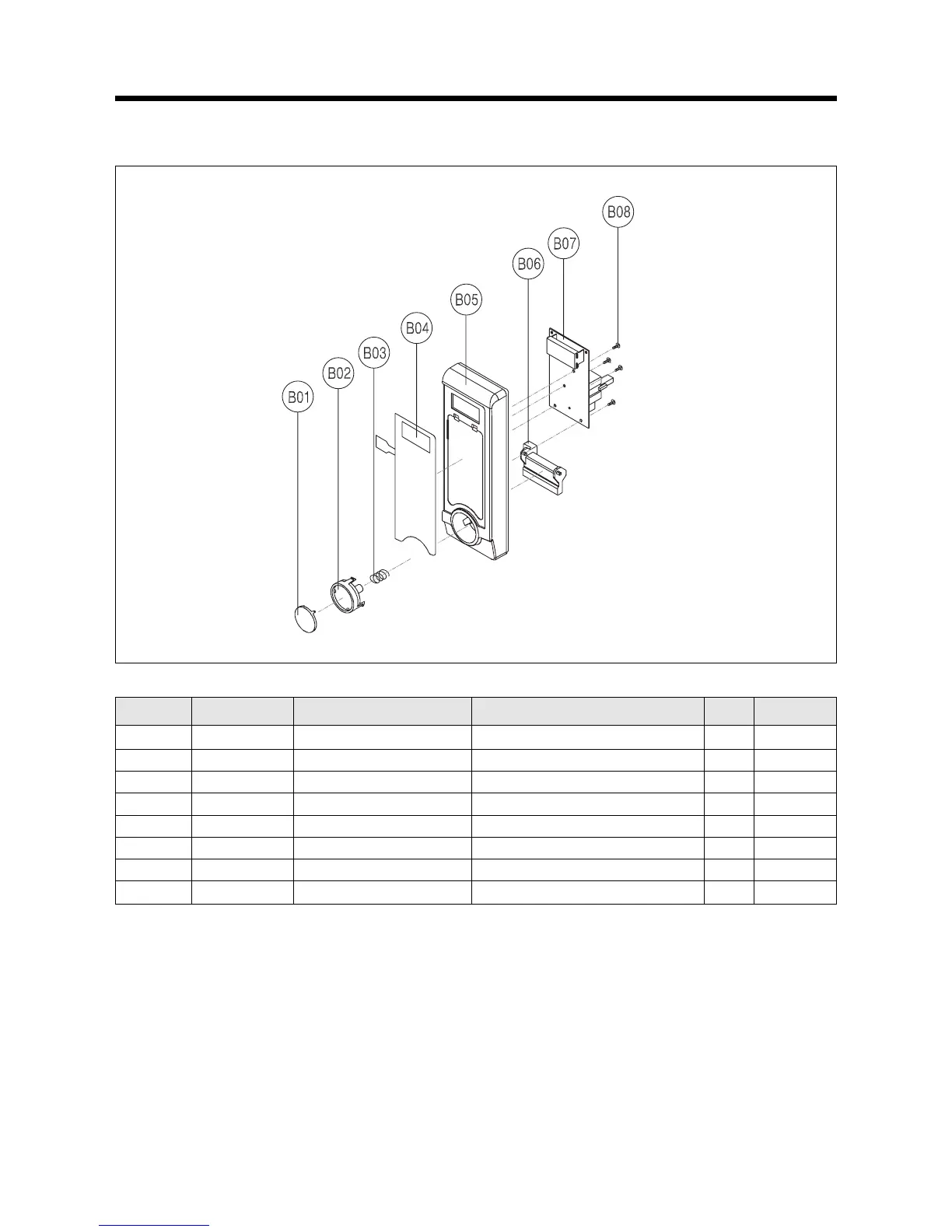

5. To remove control panel parts.
KOR-146HW
1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
2) Remove four screws which secure the PCB assembly to control panel.
3) Disconnect wire flat from the connector of the PCB assembly.
4) Remove the PCB from the control panel.
5) Remove the membrane, lever door open, spring button and button door open from the control panel.
6) Reverse the above steps for reassembly.
B01 3511618320 DECORATOR BUTTON ABS SG-0760D, SG-175 COATING 1
B02 3516916060 BUTTON DOOR OPEN ABS SG-0760D, SG-175 1
B03 441G430171 SPRING BUTTON SWP DIA. 0.7 1
B04 3518573210 SWITCH MEMBRANE KOR-136H9A27 1
B05 3516738500 CONTROL PANEL ABS SG-0760D, SG-175 1
B06 3513702800 LEVER DOOR OPEN PP 1
B07 PKMPMSZZ30 PCB MAIN MANUAL AS KOR-136H9A27 1
B08 7122401211 SCREW TAPPING T2 TRS 4X12 MFZN 4
REF. NO PART CODE PART NAME DESCRIPTION Q'TY REMARK
C/PANEL ASSEMBLY : PKCPSWXX20
To Next Page
