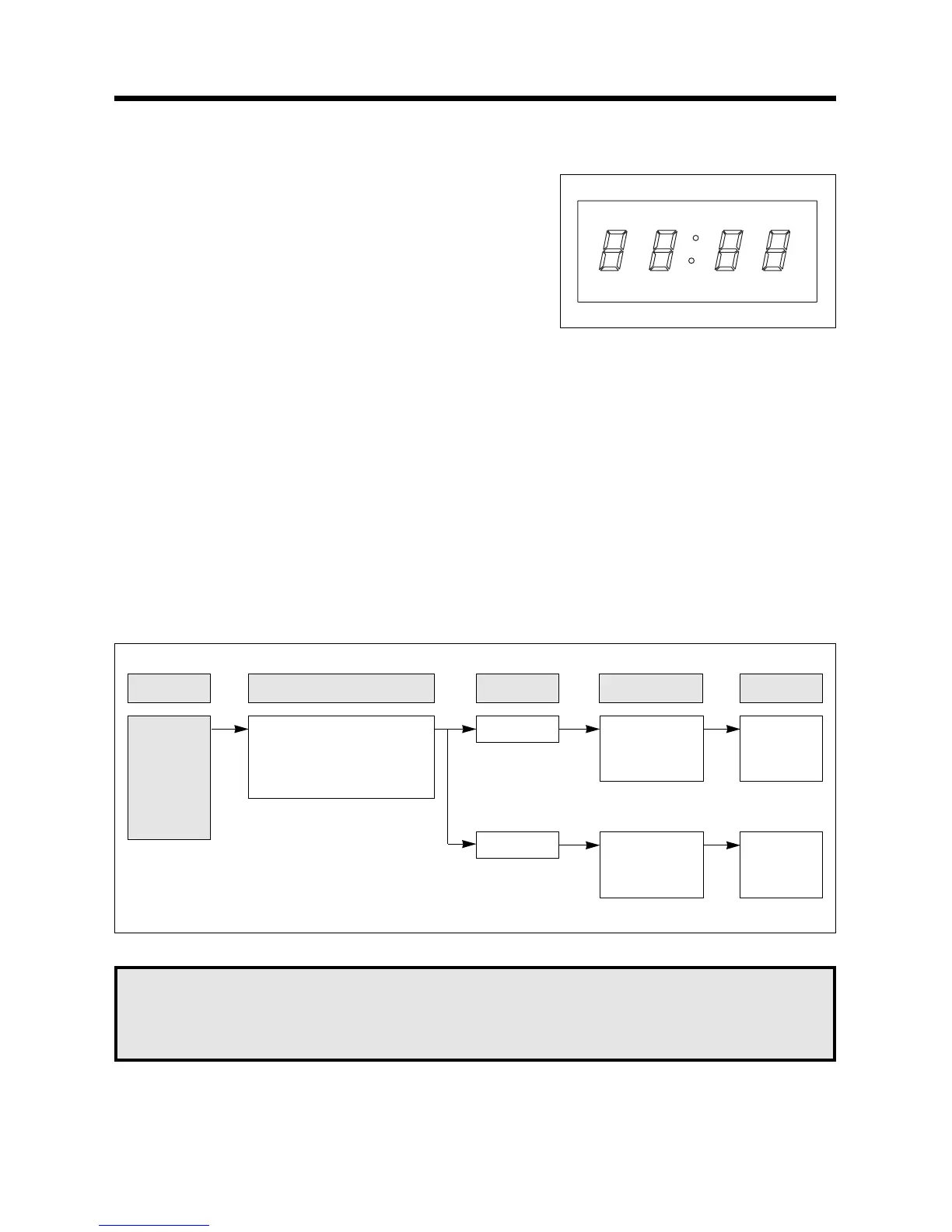

(TROUBLE 4) The following visual conditions indicate a probable defective touch control circuit
1. Incomplete segments
(1) Segments missing
(2) Partical segments missing
(3) Digit flickering other than normal display slight flickering
(4) “ :0” does not display when power is on.
2. A distinct change in the display is not on when it should be.
3. One or more digits in the display are not on when they should be.
4. Display indicates a number different from one touched.
5. Specific numbers (for example 2 or 3) will not display when the panel is touched.
6. Display does not count down or up with time cooking or clock operation.
7. Oven is programmable and cooks normally but no display shows.
8. Display obviously jumps in time while counting down.
9. Display counts down noticeably too fast while cooking.
10. Display does not show the time of day when the STOP/CLEAR pad is touched. (in case of setting the present time)
11. Oven lamp and turntable motor do not stop although cooking is finished. Check if the RELAY 2 contacts close.
If they close, replace P.C.B assembly.
CONDITION CHECK
Check each pad for continuity of
the membrane keyboard for the
following keyboard check
procedure
Malfunction of the
control circuit
board
RESULT
Normal
CAUSE REMEDY
Replace the
control circuit
board
Display does
not show
programming
at all, even if
keyboard is
pressed
Malfunction of the
membrane
keyboard
Abnormal
Replace the
membrane
keyboard
NOTE
Before following the particular steps listed above in the trouble shooting guide for the membrane keybo-rad’s,
failure, please check for the continuity of each wire-harness between the membrane keyboard and P.C.B.
assembly.
