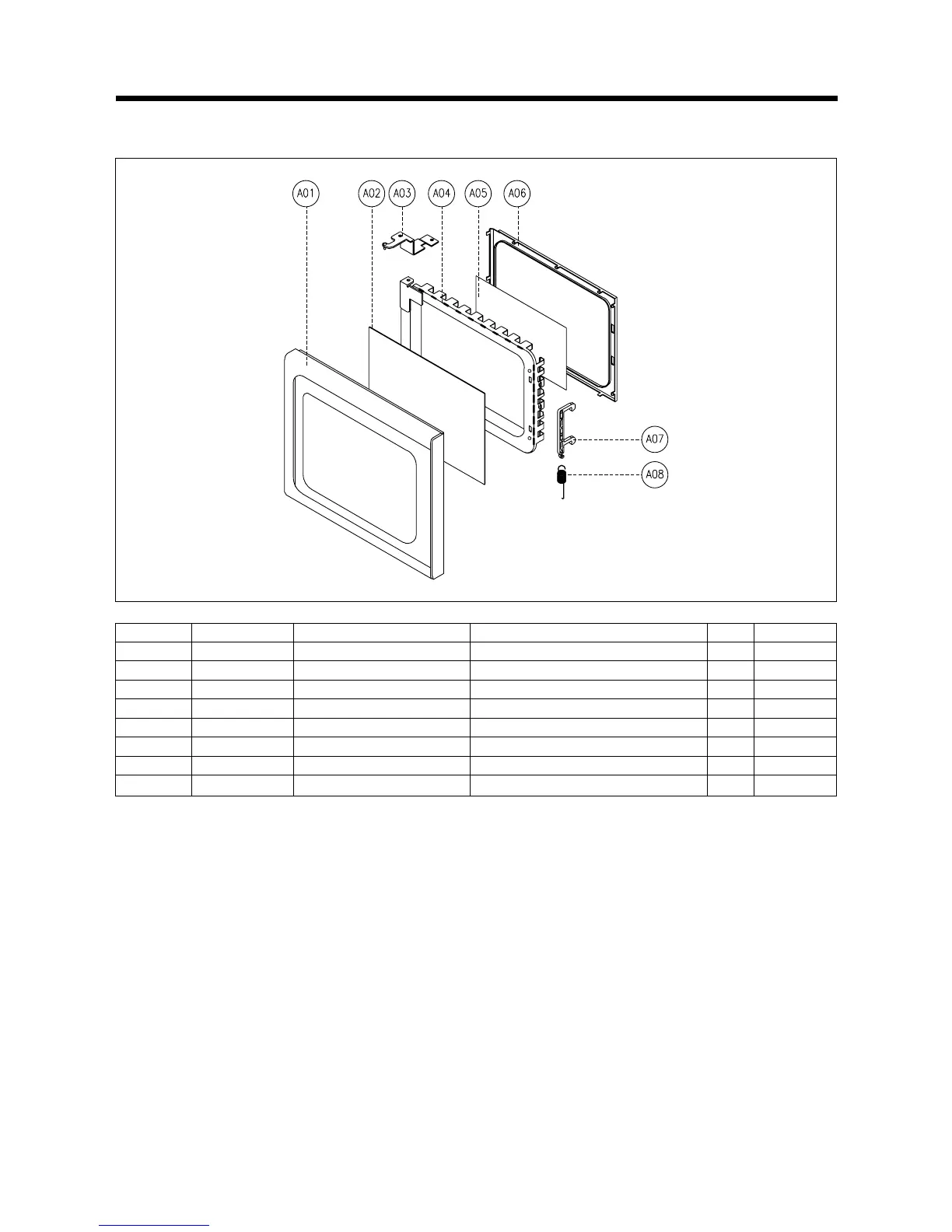

3. To remove door parts.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
A01 3512205100 FRAME DOOR ABS SG-175, SG-0760D 1
A02 3517007400 BARRIER-SCREEN*O SAN T1.5 1
A03 3515204400 STOPPER HINGE *T AS KOR-162JOA 1
A04 3511715500 DOOR AS KOR-180A 1
A05 3517005200 BARRIER-SCREEN*I PE T0.1 1
A06 3512301800 GASKET DOOR PP 1
A07 3513101400 HOOK POM 1
A08 3515101900 SPRING HOOK RW-1 1
(1) Remove the gasket door from door plate.
(2) Remove the barrier screen inner from door plate.
(3) Remove the door frame from door plate.
(4) Remove the stopper hinge top from door plate.
(5) Remove the spring and the hook.
(6) Remove the barrier screen outer from door frame.
(7) Reverse the above steps for reassembly.
