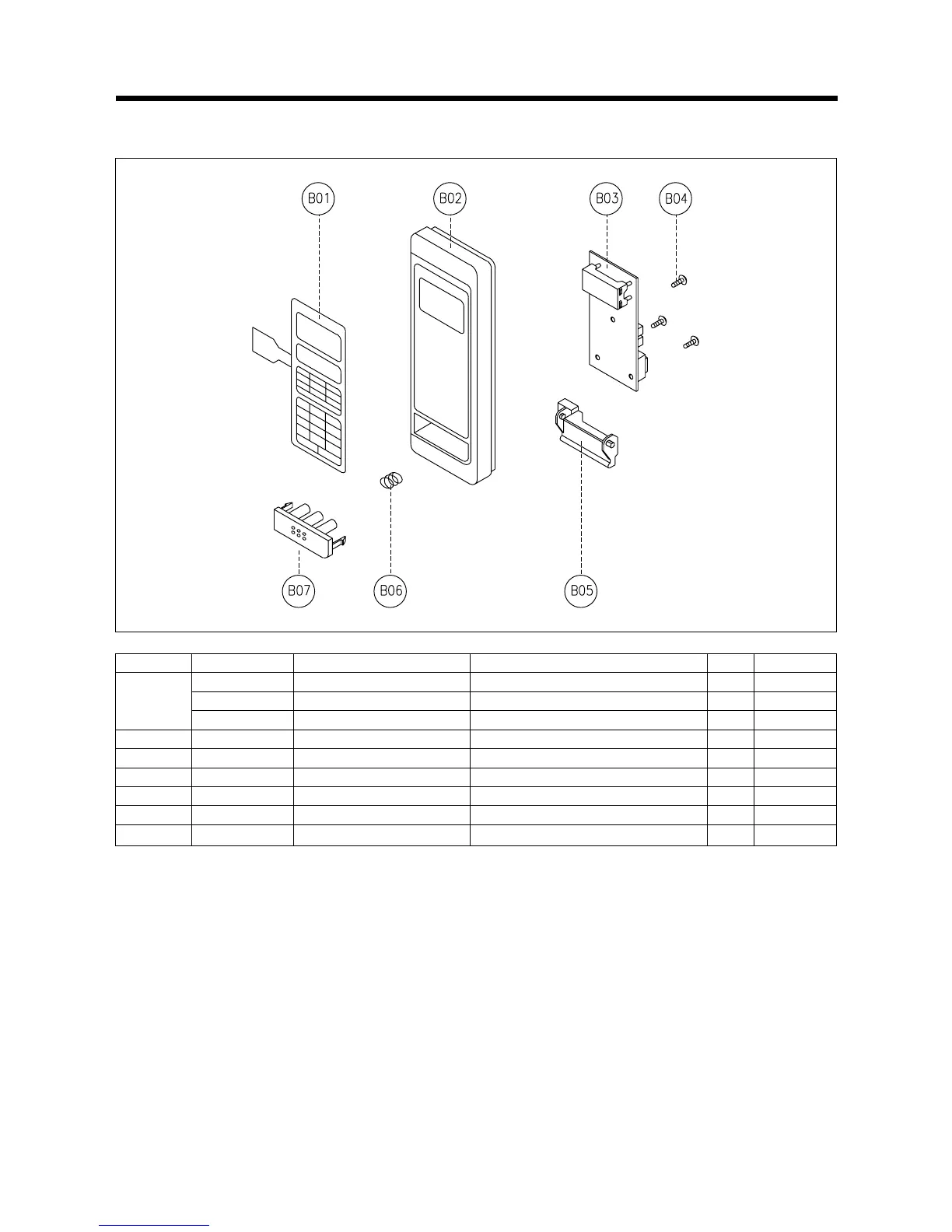

5. To remove control panel parts.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
3518522800 SWITCH MEMBRANE KOR-180A0A 1
B01 3518522810 SWITCH MEMBRANE KOR-181G2A 1
3518522820 SWITCH MEMBRANE KOR-181H2A 1
B02 3516726000 CONTROL PANEL ABS AF-348, VT-0826 1
B03 3514325010 PCB AS KOR-180A2A 1
B04 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 3
B05 3513702800 LEVER DOOR OPEN PP 1
B06 441G430171 BUTTON SPRING SWP DIA 0.7 1
B07 3516909600 BUTTON DOOR OPEN ABS AF-348, VT-0826 1
(1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
(2) Remove the door open lever from the control panel.
(3) Remove four screws which secure the PCB assembly to control panel.
(4) Disconnect membrane tail from the connector of the PCB assembly.
(5) Detach membrane from the control panel.
(6) Remove door open button and button spring from the control panel.
(7) Reverse the above steps for reassembly.
