Daewoo KOR-63D7 - HIGH VOLTAGE COMPONENTS; REMOVING HIGH VOLTAGE CAPACITOR; HIGH VOLTAGE CIRCUIT DIAGRAM; REMOVING MAGNETRON

11

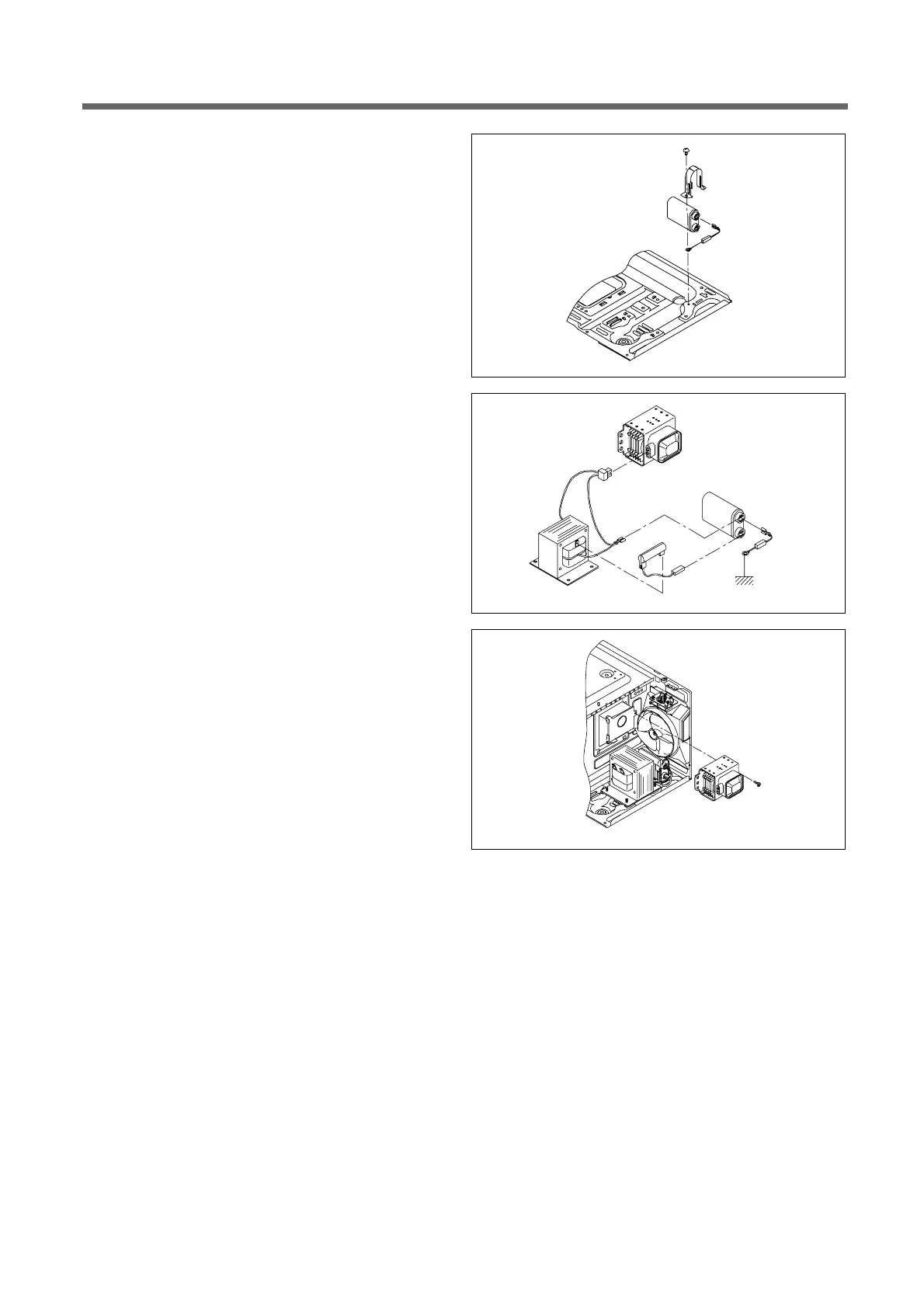

6. To remove high voltage capacitor.
1) Remove a screw which secure the grounding ring
terminal of the H.V. diode and the capacitor holder.
2) Remove the H.V. diode from the capacitor holder.
3) Reverse the above steps for reassembly.
◆ High voltage circuit wiring
7. To remove magnetron.
1) Remove a screw which secure the magnetron.
2) Remove the magnetron.
3) Reverse the above steps for reassembly.
