EXTERNAL VIEW

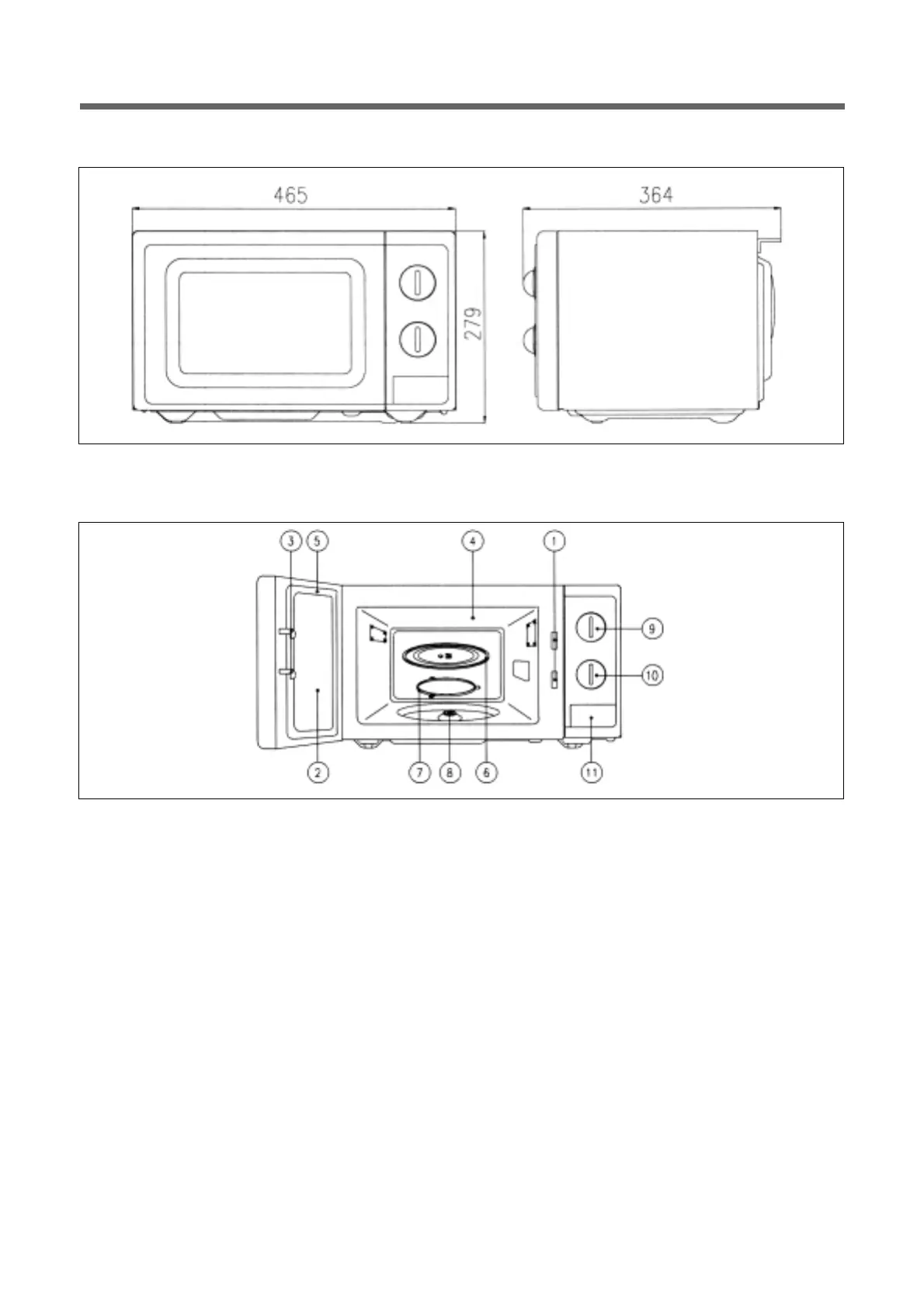

1. OUTER DIMENSION
2. FEATURE DIAGRAM
1. SAFETY INTERLOCK SYSTEM
2. DOORVIEWING SCREEN
Allos viewing of food. The screen is designed so that
light can pass through, but not the microwave.
3. DOOR HOOK
When the door is closed, it will automatically lock shut.
If door is opened while oven is operating, magnetron
tube will immediately stop operating.
4. OVEN CAVITY
5. DOOR SEAL
Door seal maintains the microwave within the oven cav-
ity and prevents microwave leakage.
6. GLASS COOKING TRAY
Made of special heat resistant glass. Food in a proper
receptacle is placed on this tray for cooking.
7. ROLLER GUIDE
This must always be used for cooking together with the
glass cooking tray.
8. COUPLER
This fits over the shaft in the center of the ovens cavity
floor. This is to remain in the oven for all cooking.
9. KNOB V.P.C.
Used in setting cooking time for all functions.
10. KNOB TIMER
Used in setting cooking time for all functions.
11. DOOR RELEASE BUTTON-
By pushing this button the latch system cut off all cir-
cuits and stops the oven before the door is opened.
