4. Method to reduce the gap between the door seal and the oven front surface.

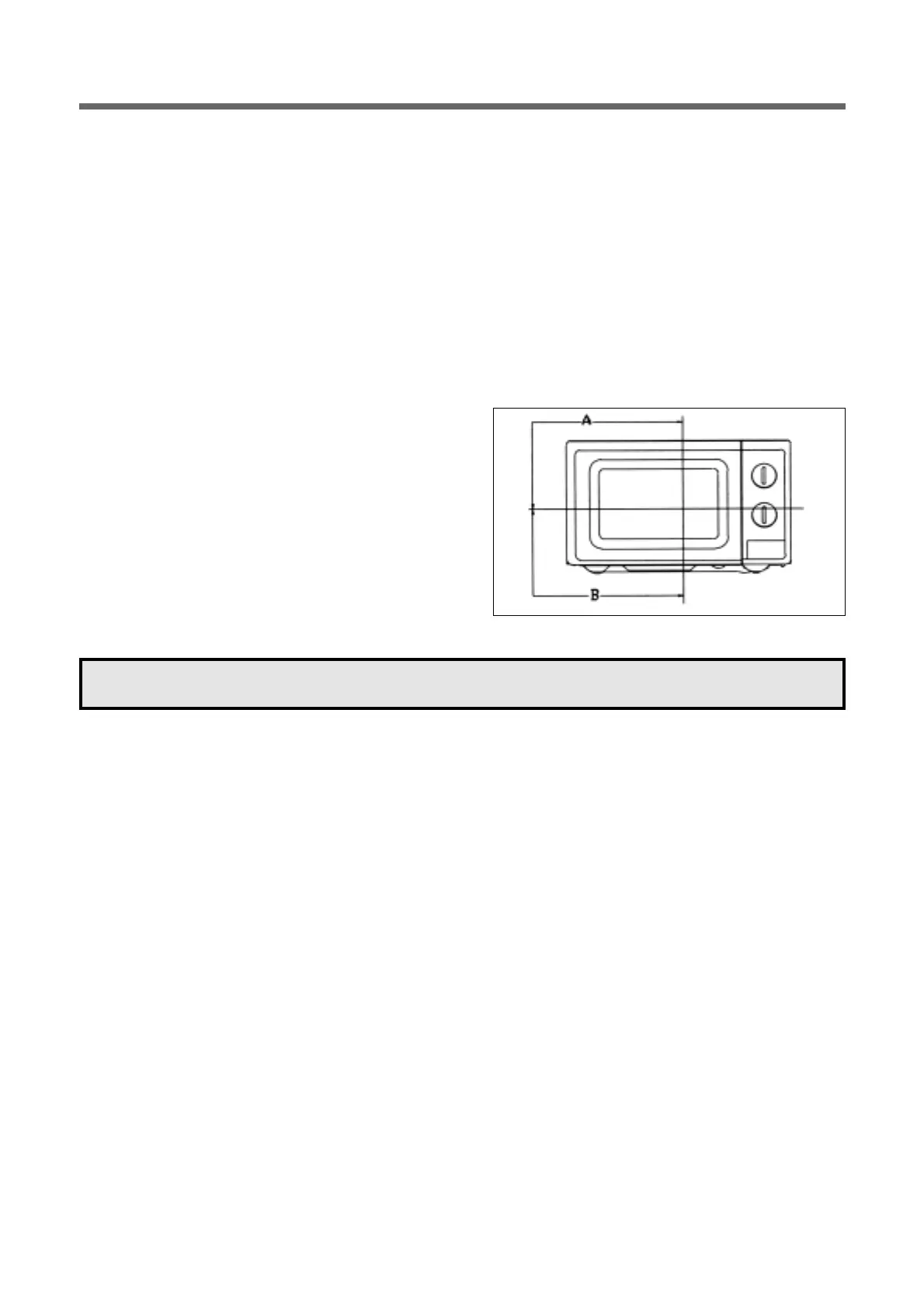

(1) To reduce gap located on part ‘A’
Loosen a screws on stopper hinge top, and then push
the door to contact the door seal to oven front surface.
Tighten two screws.
(2) To reduce gap located on part ‘B’
Loosen two screws on stopper hinge under, and then
push the door to contact the door seal to oven front
surface.
Tighten two screws.
(1) Remove the gasket door from door weld as.
(2) Remove the door frame from door weld as.
(3) Remove the stopper hinge top from door weld as.
(4) Remove the spring and the hook.
(5) Remove the barrier screen outer from door frame.
(6) Reverse the above steps for reassembly.
NOTE : A small gap may be acceptable if the microwave leakage does not exceed 4mW/cm
2
.
