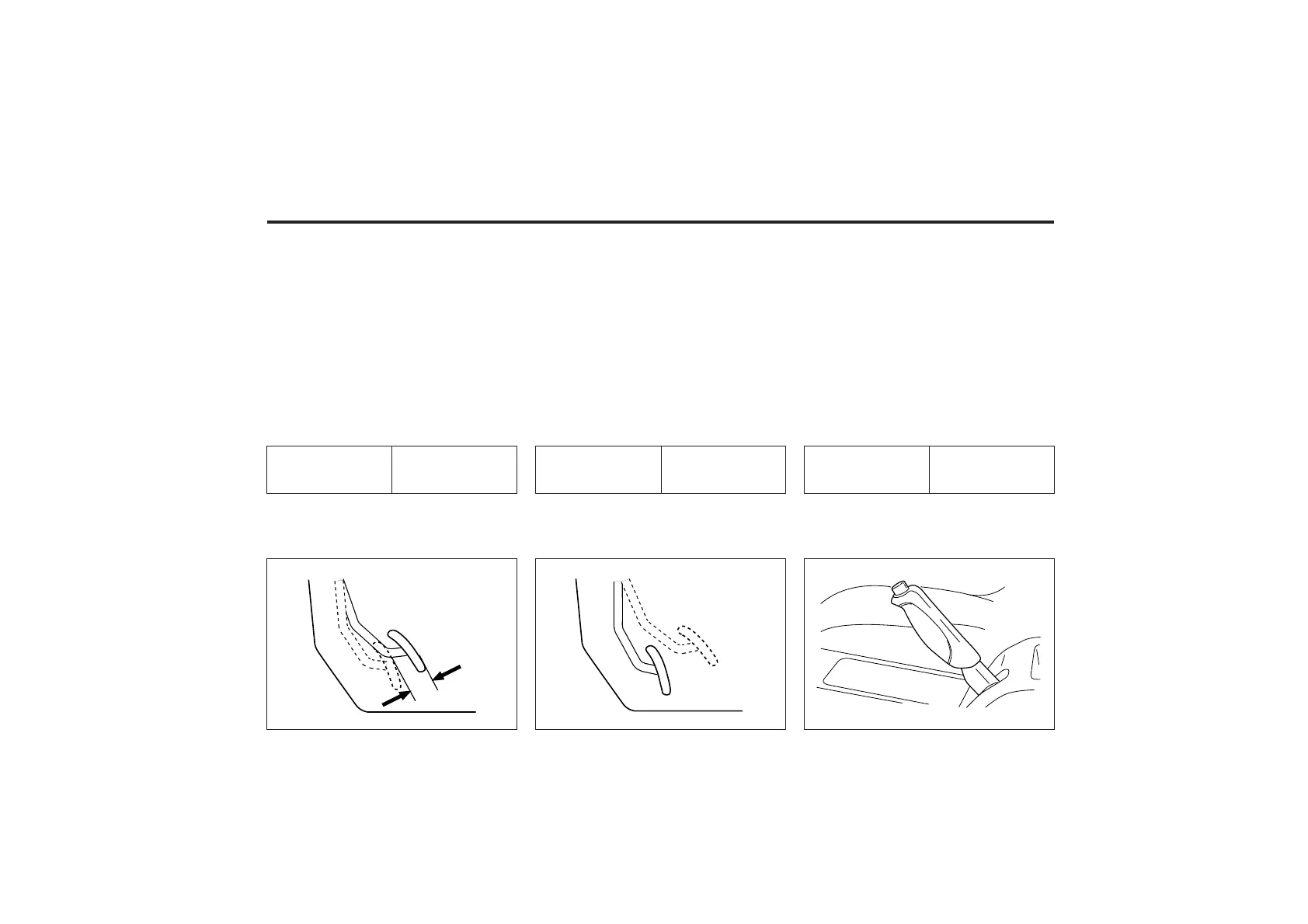

SERVICE AND MAINTENANCE 7–17
BRAKE PEDAL
Checking pedal free play
Turn off the engine and depress the brake
pedal several times to deplete the vacuum
in the brake system. Gently depress the
brake pedal by hand and measure the dis-
tance it moves until slight resistance is felt.
If the free play is more or less than speci-
fied, have the brakes adjusted by a Daewoo
Dealer or Daewoo Authorized Service Op-
eration.
Brake pedal
free play
1~8mm
CLUTCH PEDAL
Checking pedal free play
Depress the pedal by hand until clutch re-
sistance is felt; ensure free play is within
specification.
If the free play is more or less than speci-
fied, have the clutch or linkage adjusted by
Daewoo Dealer or Daewoo Authorized Ser-
vice Operation.
Clutch pedal
free play
6~12mm
PARKING BRAKE
Check the stroke of the parking brake by
counting the number of notch clicks heard
while fully applying it from the released po-
sition.
Also, the parking brake alone should se-
curely hold the vehicle on a fairly steep
grade. If the number of clicks is more or
less than specified, have the parking brake
adjusted by a Daewoo Dealer or Daewoo
Authorized Service Operation.
6~9 notches at a
force of 20kg
Stroke
