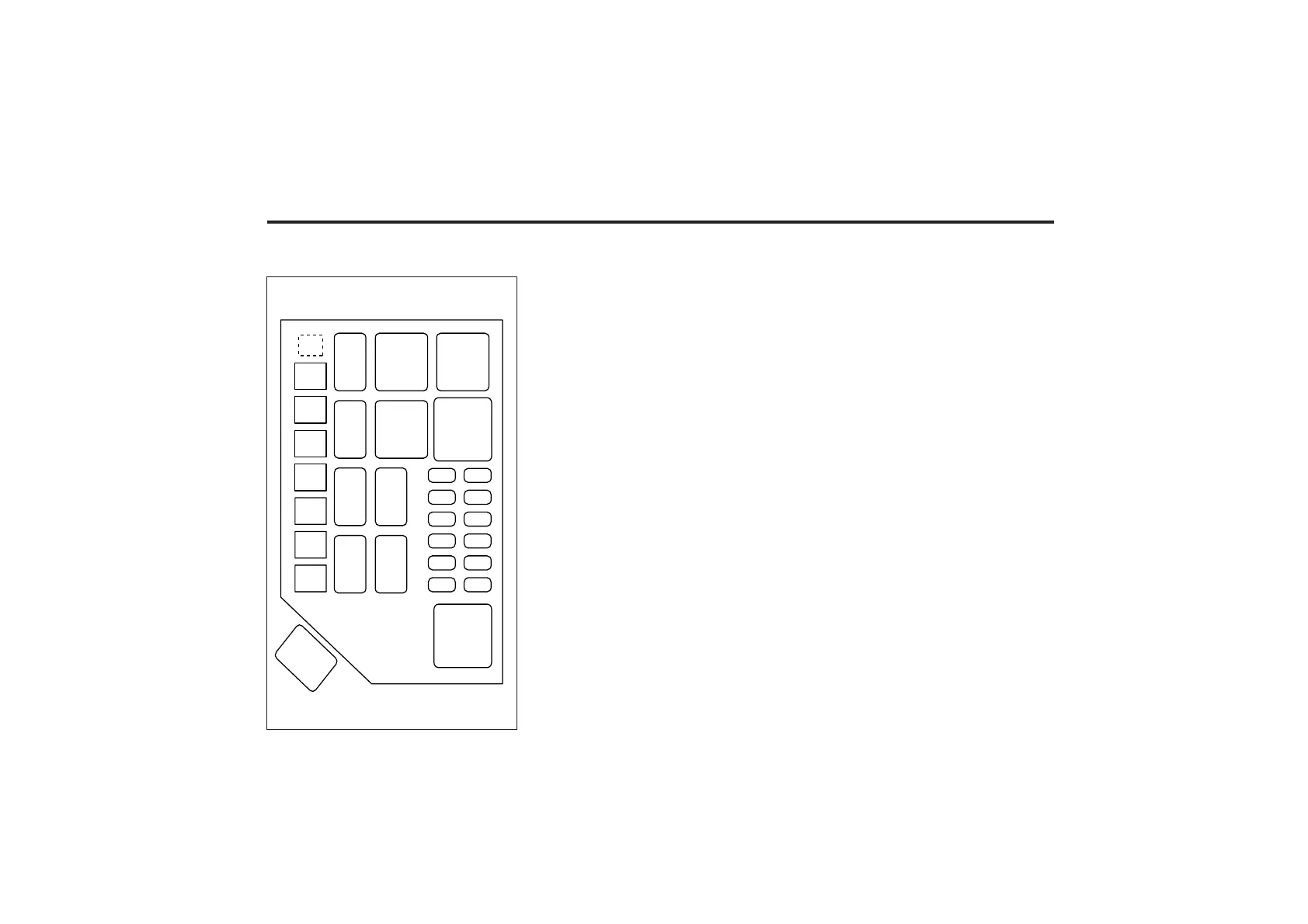

FUSE AND RELAY BOX IN THE ENGINE COMPARTMENT
Fuse
F1. Main power 80A
F2. Ignition 1 30A
F3. Ignition 2 30A
F4. Radiator fan-A 30A
F5. Power window* 30A
F6. EBCM* 40A
F7. Rear window demister 30A
F8. Blower motor 4 speed 30A
F10. High beam 20A
F11. Low beam (left) 10A
F12. Low beam (right) 10A
F13. Tail lamp (left) 10A
F14. Tail lamp (right) 10A
F15. Front fog lamp 15A
F16. Fuel pump 15A
F17. Horn 10A
F18. A/C compressor* 10A
F19. High beam 25A
F20. Illumination 20A
Relay and others
A. Fuel pump relay
B. Fog lamp relay
C. Horn relay
D. Illumination relay
E. Headlamp relay
F. Rear window demister relay
G. Power window relay*
H. A/C compressor relay*
I. Radiator fan control relay
J. Radiator fan relay A
K. Radiator fan relay B
L. Fuse tongs
D9. Diode
