Daewoo MC-5210SU - Part List; MC-5210 SU Bill of Materials

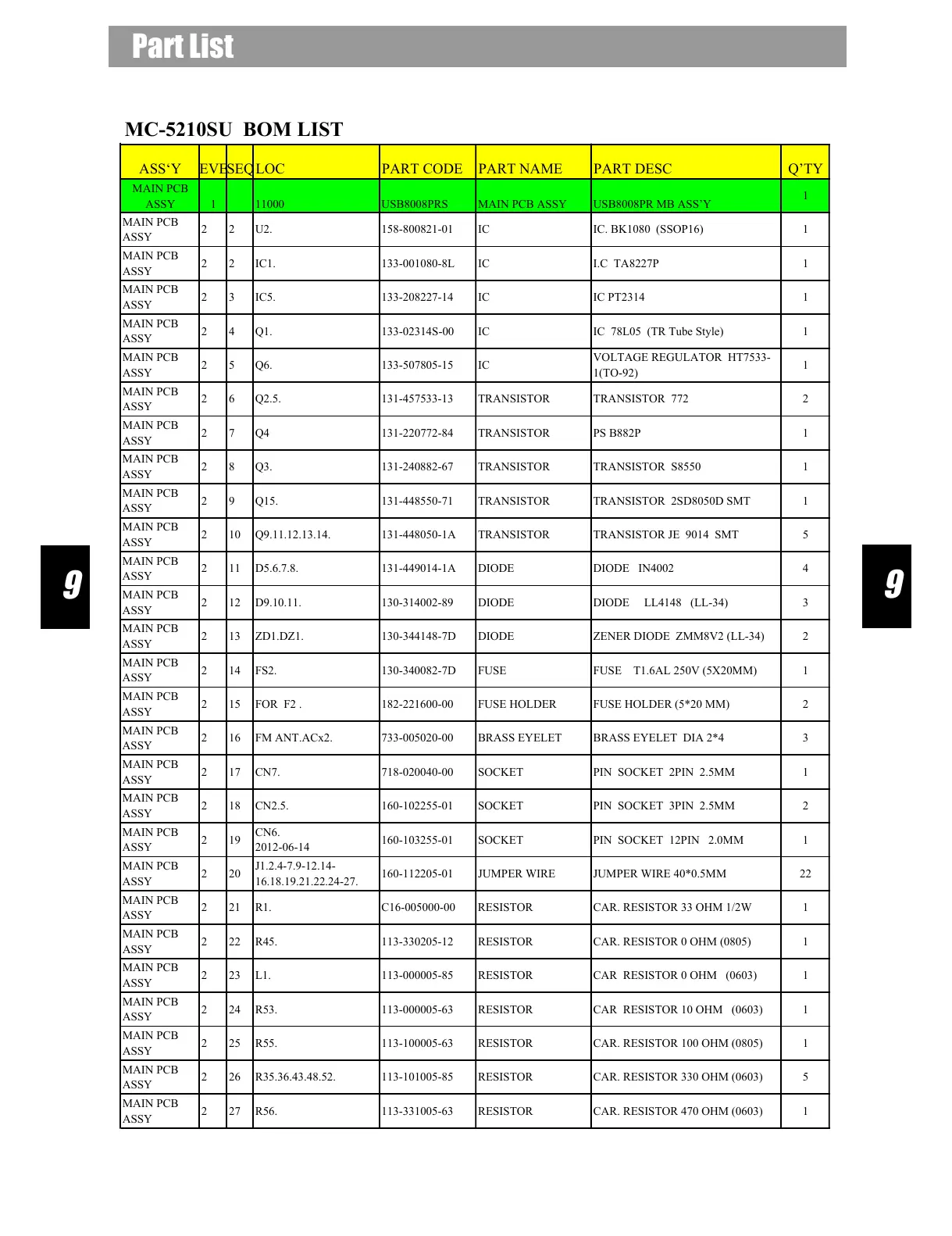

MC-5210SU BOM LIST
ASS‘Y
E
V
E
SE
Q
LOC PART CODE PART NAME PART DESC Q’TY
MAIN PCB
ASSY 1 11000 USB8008PRS MAIN PCB ASSY USB8008PR MB ASS’Y
1
MAIN PCB
ASSY
2 2 U2. 158-800821-01 IC IC. BK1080 (SSOP16) 1
MAIN PCB
ASSY
1P7228AT C.ICIL8-080100-331.1CI22
MAIN PCB
ASSY
14132TP CICI41-722802-331.5CI32
MAIN PCB
ASSY
2 4 Q1. 133-02314S-00 IC IC 78L05 (TR Tube Style) 1
MAIN PCB
ASSY
2 5 Q6. 133-507805-15 IC
VOLTAGE REGULATOR HT7533-
1(TO-92)
1
MAIN PCB
ASSY
2 6 Q2.5. 131-457533-13 TRANSISTOR TRANSISTOR 772 2
MAIN PCB
ASSY
1P288B SPROTSISNART48-277022-1314Q72
MAIN PCB
ASSY
2 8 Q3. 131-240882-67 TRANSISTOR TRANSISTOR S8550 1
MAIN PCB
ASSY
2 9 Q15. 131-448550-71 TRANSISTOR TRANSISTOR 2SD8050D SMT 1
MAIN PCB
ASSY
2 10 Q9.11.12.13.14. 131-448050-1A TRANSISTOR TRANSISTOR JE 9014 SMT 5
MAIN PCB
ASSY
42004NI EDOIDEDOIDA1-410944-131.8.7.6.5D112
MAIN PCB
ASSY
2 12 D9.10.11. 130-314002-89 DIODE DIODE LL4148 (LL-34) 3
MAIN PCB
ASSY
2 13 ZD1.DZ1. 130-344148-7D DIODE ZENER DIODE ZMM8V2 (LL-34) 2
MAIN PCB
ASSY
2 14 FS2. 130-340082-7D FUSE FUSE T1.6AL 250V (5X20MM) 1
MAIN PCB
ASSY
2 15 FOR F2 . 182-221600-00 FUSE HOLDER FUSE HOLDER (5*20 MM) 2
MAIN PCB
ASSY
2 16 FM ANT.ACx2. 733-005020-00 BRASS EYELET BRASS EYELET DIA 2*4 3
MAIN PCB
ASSY
2 17 CN7. 718-020040-00 SOCKET PIN SOCKET 2PIN 2.5MM 1
MAIN PCB
ASSY
2 18 CN2.5. 160-102255-01 SOCKET PIN SOCKET 3PIN 2.5MM 2
MAIN PCB
ASSY
2 19
CN6.
2012-06-14
160-103255-01 SOCKET PIN SOCKET 12PIN 2.0MM 1
MAIN PCB
ASSY
2 20
J1.2.4-7.9-12.14-
16.18.19.21.22.24-27.
160-112205-01 JUMPER WIRE JUMPER WIRE 40*0.5MM 22
MAIN PCB
ASSY
2 21 R1. C16-005000-00 RESISTO
R CAR. RESISTOR 33 OHM 1/2W 1
MAIN PCB
ASSY
2 22 R45. 113-330205-12 RESISTOR CAR. RESISTOR 0 OHM (0805) 1
MAIN PCB
ASSY
2 23 L1. 113-000005-85 RESISTOR CAR RESISTOR 0 OHM (0603) 1
MAIN PCB
ASSY
2 24 R53. 113-000005-63 RESISTOR CAR RESISTOR 10 OHM (0603) 1
MAIN PCB
ASSY
2 25 R55. 113-100005-63 RESISTOR CAR. RESISTOR 100 OHM (0805) 1
MAIN PCB
ASSY
2 26 R35.36.43.48.52. 113-101005-85 RESISTOR CAR. RESISTOR 330 OHM (0603) 5
MAIN PCB
ASSY
2 27 R56. 113-331005-63 RESISTOR CAR. RESISTOR 470 OHM (0603) 1
9
9
9
