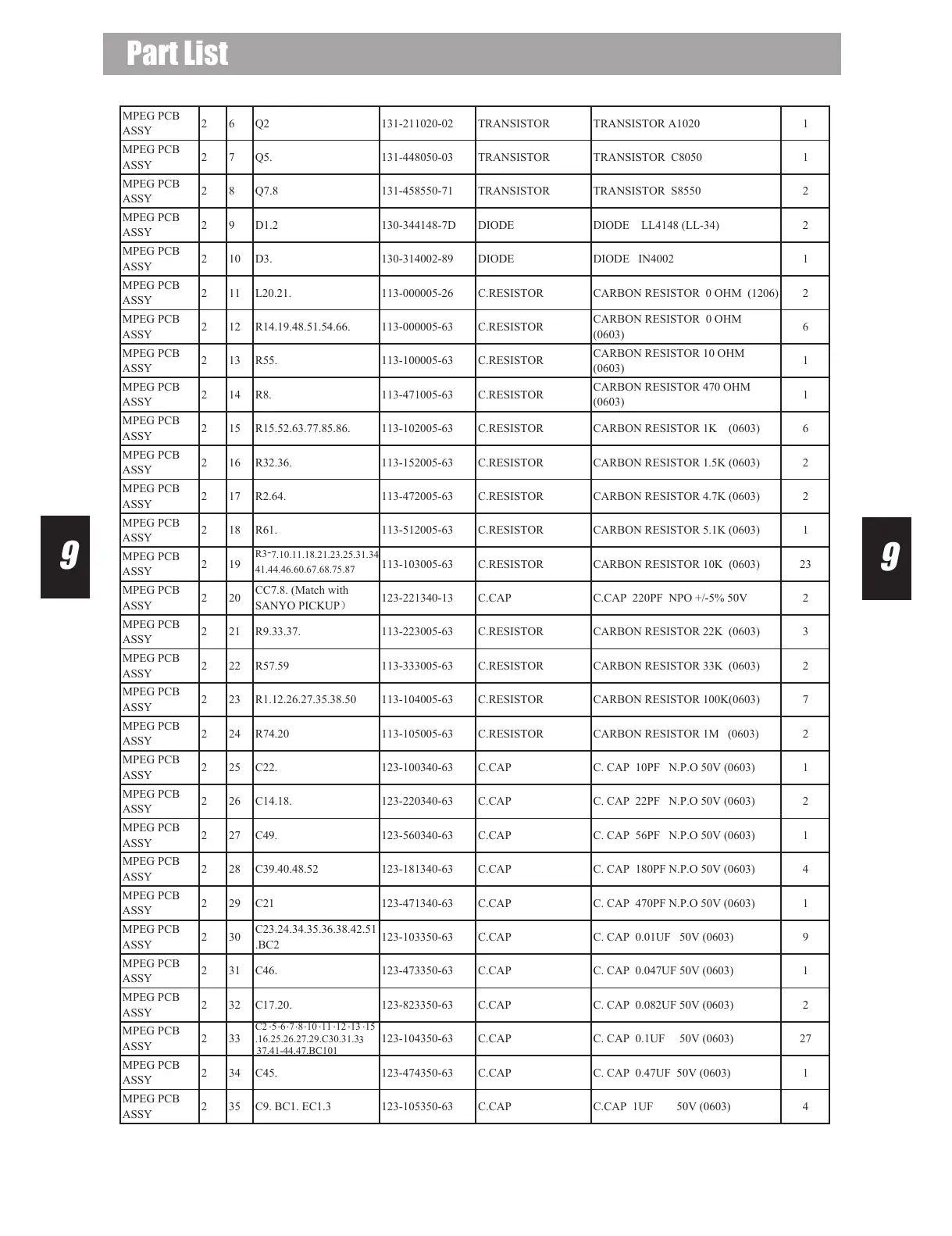

Daewoo MC-5210SU - Part List; Continuation of Component List

MPEG PCB
ASSY
2 6 Q2 131-211020-02 TRANSISTOR TRANSISTOR A1020 1
MPEG PCB
ASSY
2 7 Q5. 131-448050-03 TRANSISTOR TRANSISTOR C8050 1
MPEG PCB
ASSY
2 8 Q7.8 131-458550-71 TRANSISTOR TRANSISTOR S8550 2
MPEG PCB
ASSY
2 9 D1.2 130-344148-7D DIODE DIODE LL4148 (LL-34) 2
MPEG PCB
ASSY
12004NI EDOIDEDOID98-200413-031.3D012
MPEG PCB
ASSY
2 11 L20.21. 113-000005-26 C.RESISTOR CARBON RESISTOR 0 OHM (1206) 2
MPEG PCB
ASSY
2 12 R14.19.48.51.54.66. 113-000005-63 C.RESISTOR
CARBON RESISTOR 0 OHM
(0603)
6
MPEG PCB
ASSY
2 13 R55. 113-100005-63 C.RESISTOR
CARBON RESISTOR 10 OHM
(0603)
1
MPEG PCB
ASSY
2 14 R8. 113-471005-63 C.RESISTOR
CARBON RESISTOR 470 OHM
(0603)
1
MPEG PCB
ASSY
2 15 R15.52.63.77.85.86. 113-102005-63 C.RESISTOR CARBON RESISTOR 1K (0603) 6
MPEG PCB
ASSY
2 16 R32.36. 113-152005-63 C.RESISTOR CARBON RESISTOR 1.5K (0603) 2
MPEG PCB
ASSY
2 17 R2.64. 113-472005-63 C.RESISTOR CARBON RESISTOR 4.7K (0603) 2
MPEG PCB
ASSY
2 18 R61. 113-512005-63 C.RESISTOR CARBON RESISTOR 5.1K (0603) 1
MPEG PCB
ASSY
2 19
R3
-
7.10.11.18.21.23.25.31.34
113-103005-63 C.RESISTOR CARBON RESISTOR 10K (0603) 23
MPEG PCB
ASSY
2 20
CC7.8. (Match with
SANYO PICKUP）
123-221340-13 C.CAP C.CAP 220PF NPO +/-5% 50V 2
MPEG PCB
ASSY
2 21 R9.33.37. 113-223005-63 C.RESISTOR CARBON RESISTOR 22K (0603) 3
MPEG PCB
ASSY
2 22 R57.59 113-333005-63 C.RESISTOR CARBON RESISTOR 33K (0603) 2
MPEG PCB
ASSY
2 23 R1.12.26.27.35.38.50 113-104005-63 C.RESISTOR CARBON RESISTOR 100K(0603) 7
MPEG PCB
ASSY
2 24 R74.20 113-105005-63 C.RESISTOR CARBON RESISTOR 1M (0603) 2
MPEG PCB
ASSY
2 25 C22. 123-100340-63 C.CAP C. CAP 10PF N.P.O 50V (0603) 1
MPEG PCB
ASSY
2 26 C14.18. 123-220340-63 C.CAP C. CAP 22PF N.P.O 50V (0603) 2
MPEG PCB
ASSY
2 27 C49. 123-560340-63 C.CAP C. CAP 56PF N.P.O 50V (0603) 1
MPEG PCB
ASSY
2 28 C39.40.48.52 123-181340-63 C.CAP C. CAP 180PF N.P.O 50V (0603) 4
MPEG PCB
ASSY
2 29 C21 123-471340-63 C.CAP C. CAP 470PF N.P.O 50V (0603) 1
MPEG PCB
ASSY
2 30
C23.24.34.35.36.38.42.51
.BC2
123-103350-63 C.CAP C. CAP 0.01UF 50V (0603) 9
MPEG PCB
ASSY
2 31 C46. 123-473350-63 C.CAP C. CAP 0.047UF 50V (0603) 1
MPEG PCB
ASSY
2 32 C17.20. 123-823350-63 C.CAP C. CAP 0.082UF 50V (0603) 2
MPEG PCB
ASSY
2 33
C2
.
5
.
6
.
7
.
8
.
10
.
11
.
12
.
13
.
15
.16.25.26.27.29.C30.31.3 123-104350-63 C.CAP C. CAP 0.1UF 50V (0603) 27
MPEG PCB
ASSY
2 34 C45. 123-474350-63 C.CAP C. CAP 0.47UF 50V (0603) 1
MPEG PCB
ASSY
2 35 C9. BC1. EC1.3 123-105350-63 C.CAP C.CAP 1UF 50V (0603) 4
9
9
41.44.46.60.67.68.75.87
3
37.41-44.47.BC101
Part List
