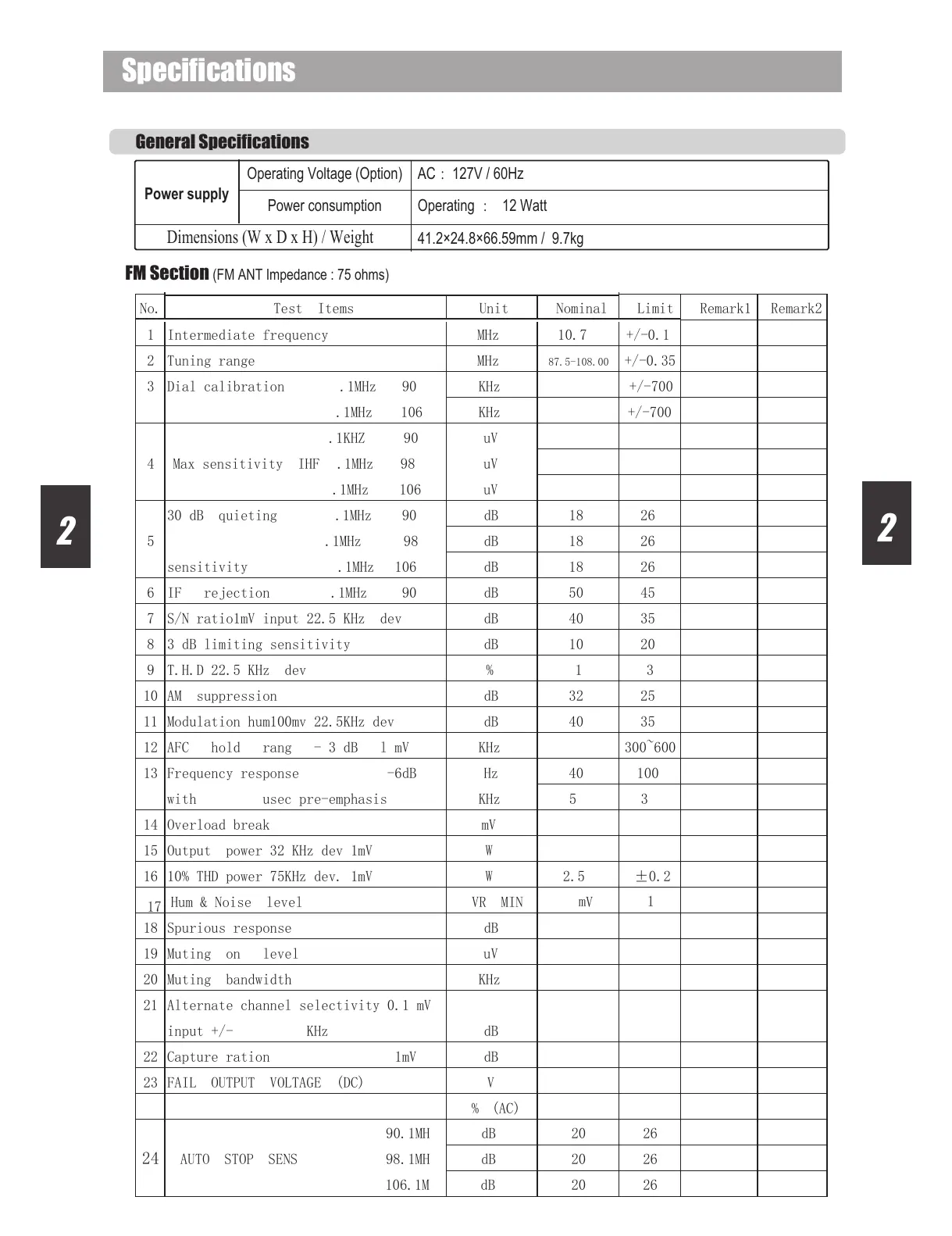

Specifications
1
11
1
2
9
Power supply
AC ：127V / 60Hz
Operating ： 12 Watt
41.2×24.8×66.59mm / 9.7kg
Operating Voltage (Option)
Power consumption
Dimensions (W x D x H) / Weight
FM Section (FM ANT Impedance : 75 ohms)
General Specifications
No. Test Items Unit Nominal Limit Remark1 Remark2
1 Intermediate frequency MHz 10.7 +/-0.1
2 Tuning range MHz
87.5-108.00 +/-0.35
3 Dial calibration 90.1MHz KHz +/-700
106.1MHz KHz +/-700
90.1KHZ uV
4 Max sensitivity IHF 98.1MHz uV
106.1MHz uV
30 dB quieting 90.1MHz dB 18 26
5 98.1MHz dB 18 26
sensitivity 106.1MHz dB 18 26
6 IF rejection 90.1MHz dB 50 45
7 S/N ratio1mV input 22.5 KHz dev dB 40 35
8 3 dB limiting sensitivity dB 10 20
9 T.H.D 22.5 KHz dev % 1 3
10 AM suppression dB 32 25
11 Modulation hum100mv 22.5KHz dev dB 40 35
12 AFC hold rang - 3 dB l mV KHz 300~600
13 Frequency response -6dB Hz 40 100
with usec pre-emphasis KHz 5 3
14 Overload break mV
15 Output power 32 KHz dev 1mV W
16 10% THD power 75KHz dev. 1mV W 2.5 ±0.2
17
Hum & Noise level VR MIN
m
V
1
18 Spurious response dB
19 Muting on level uV
20 Muting bandwidth KHz
21 Alternate channel selectivity 0.1 mV
input +/- KHz dB
22 Capture ration 1mV dB
23 FAIL OUTPUT VOLTAGE (DC) V
(AC)%
90.1MH dB 20 26
24 AUTO STOP SENS 98.1MH dB 20 26
106.1M dB 20 26
2 2
2
2
