3
CF65/75/85 series Removal and installation
MECHANICAL GEARBOX CONTROL
3-9
3.4 REMOVAL AND INSTALLATION OF GEAR LEVER BALL
Removing the gear lever ball
1. Make sure there are no loose items in the
cab. Tilt the cab.
2. After marking them, remove the air pipes
that run from the switch to the various
valves.
3. Slide the gaiter over the threaded bush and
then loosen it from the connection piece
between the gear lever and the selector
valve.
4. Remove the gear lever control rod and
secure it so that no damage can be caused
to the air pipes.
5. Remove the switch with the selector valve
and air pipes from the gear lever.

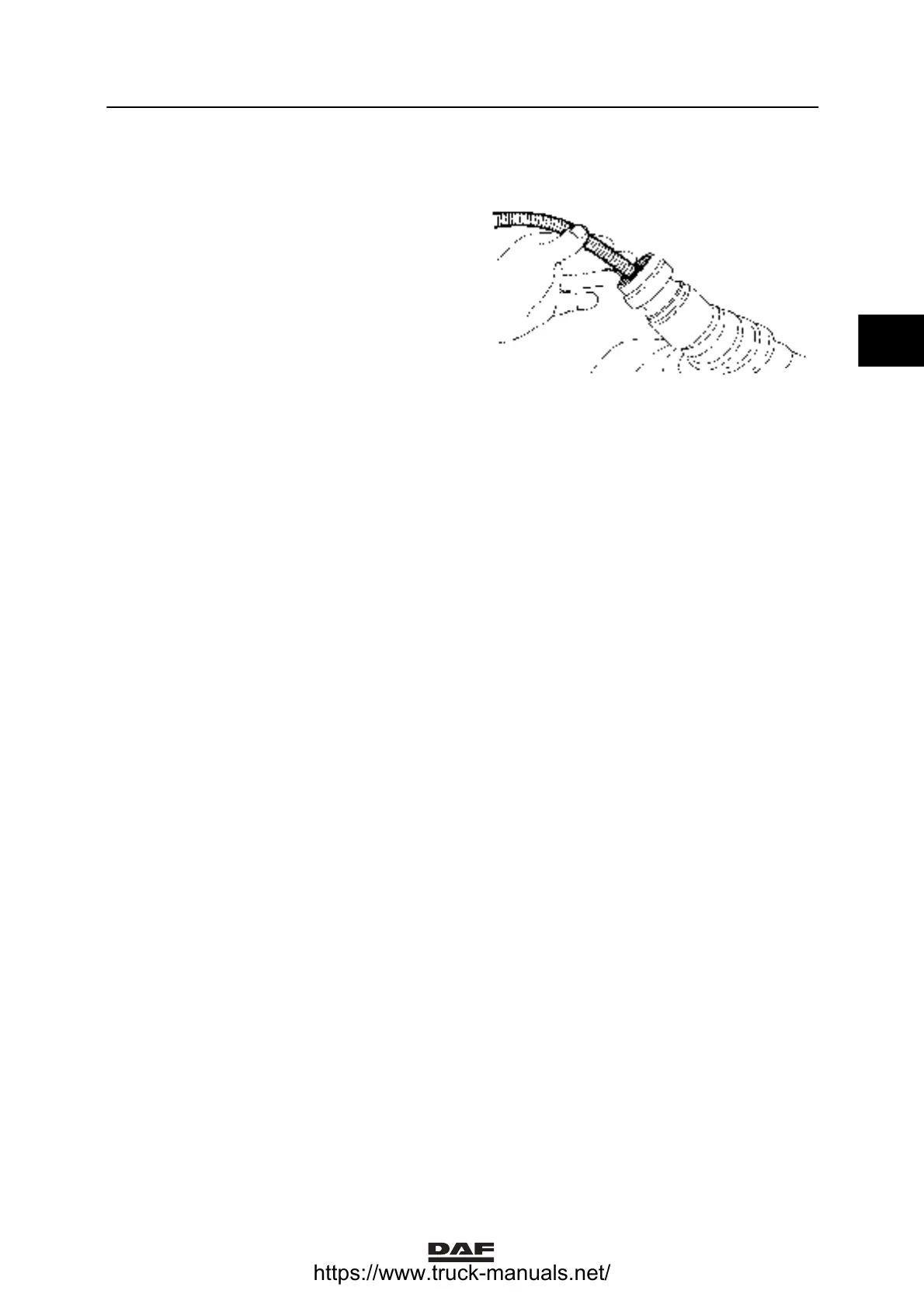

6. Loosen the gaiter from the locking plate by
lifting the gaiter and pulling the gaiter lips
away from the locking plate.
7. Then remove the Seeger ring that has
become visible from the bearing cover. It is
now possible to remove the gear lever from
the bearing cover.
8. Use a press to remove the ball from the
gear lever.
Heat the ball if necessary.
W 302069
2
ᓻ 0111
