CF65/75/85 series Removal and installation, gearbox
ZF 8/9/16S-109 GEARBOX
4-5
4.3 REMOVAL AND INSTALLATION, OUTPUT SHAFT OIL SEAL
Removing the output shaft oil seal
1. Detach the prop shaft from the flange and
secure it.
2. Remove the drive flange.
3. Remove the attachment bolts from the area
of the bearing cover.
4. Tap the bearing cover with a plastic mallet.

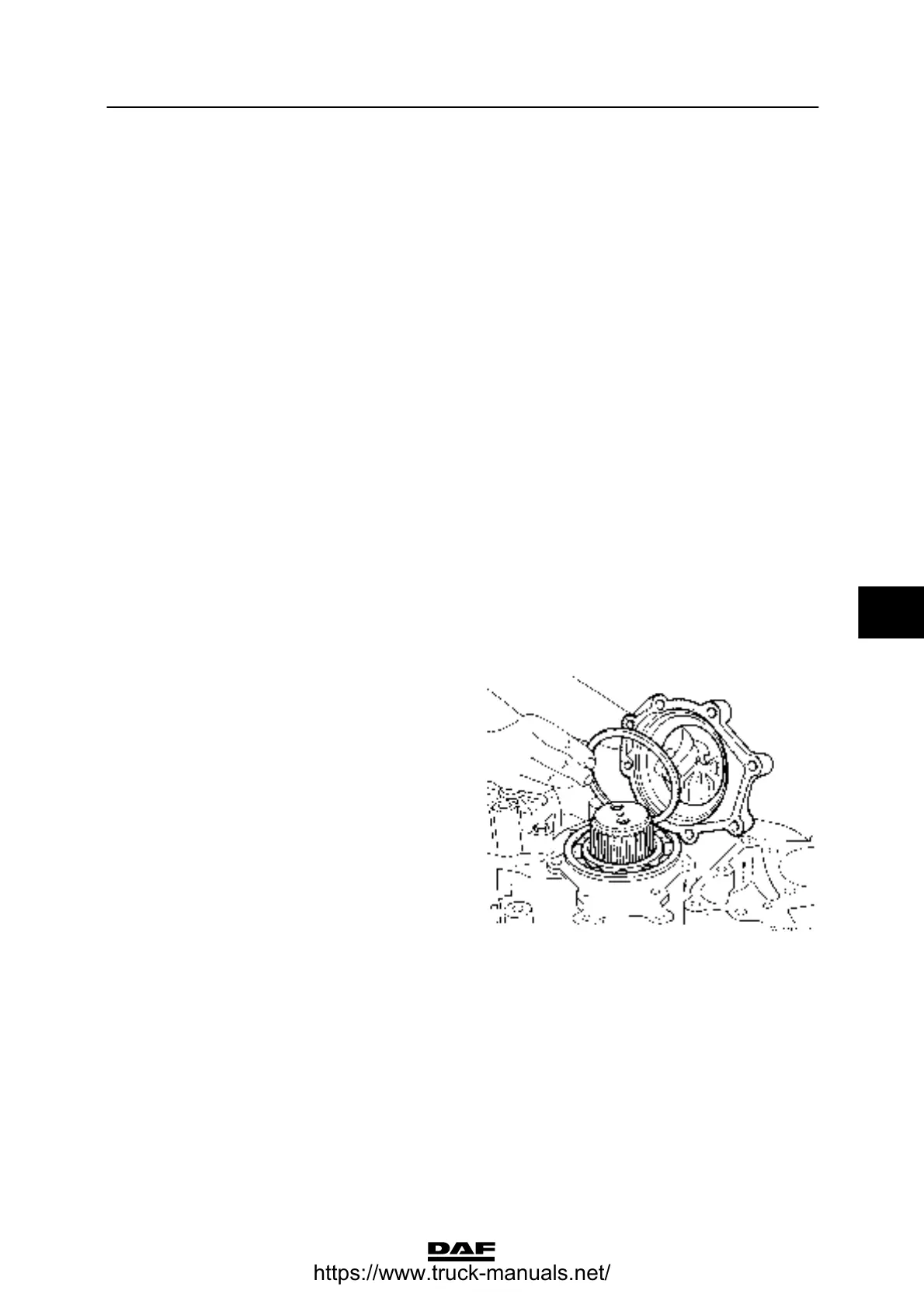

5. Remove the bearing cover, shim and oil
seal.
6. Drive the oil seal out of the cover with a
plastic driver.
Installing the output shaft oil seal
1. Fit the oil seal in the bearing cover using
special tool (DAF Nos. 1240491 and
1240483). Apply small amount of liquid
gasket to the oil seals fitted with a steel
sleeve on the outside.
2. Apply a rubber coating to the oil seals’
exterior and apply green soap sparingly.
3. Check the output shaft bearing play. See
“Inspection and adjustment”.
4. Fit a new gasket to the bearing cover and
install the bearing cover and adjusting ring
to the gearbox housing.
5. Fit the attachment bolts and tighten to the
specified torque. See “Technical data”.
6. Fit the drive flange.
7. Attach the prop shaft.
