CF65/75/85 series Removal and installation
ZF INTARDER
4-13
4.9 REMOVAL AND INSTALLATION, INTARDER DRIVE
12
11
10
9
8
7
5
6
4
3
2
1
13
V300077

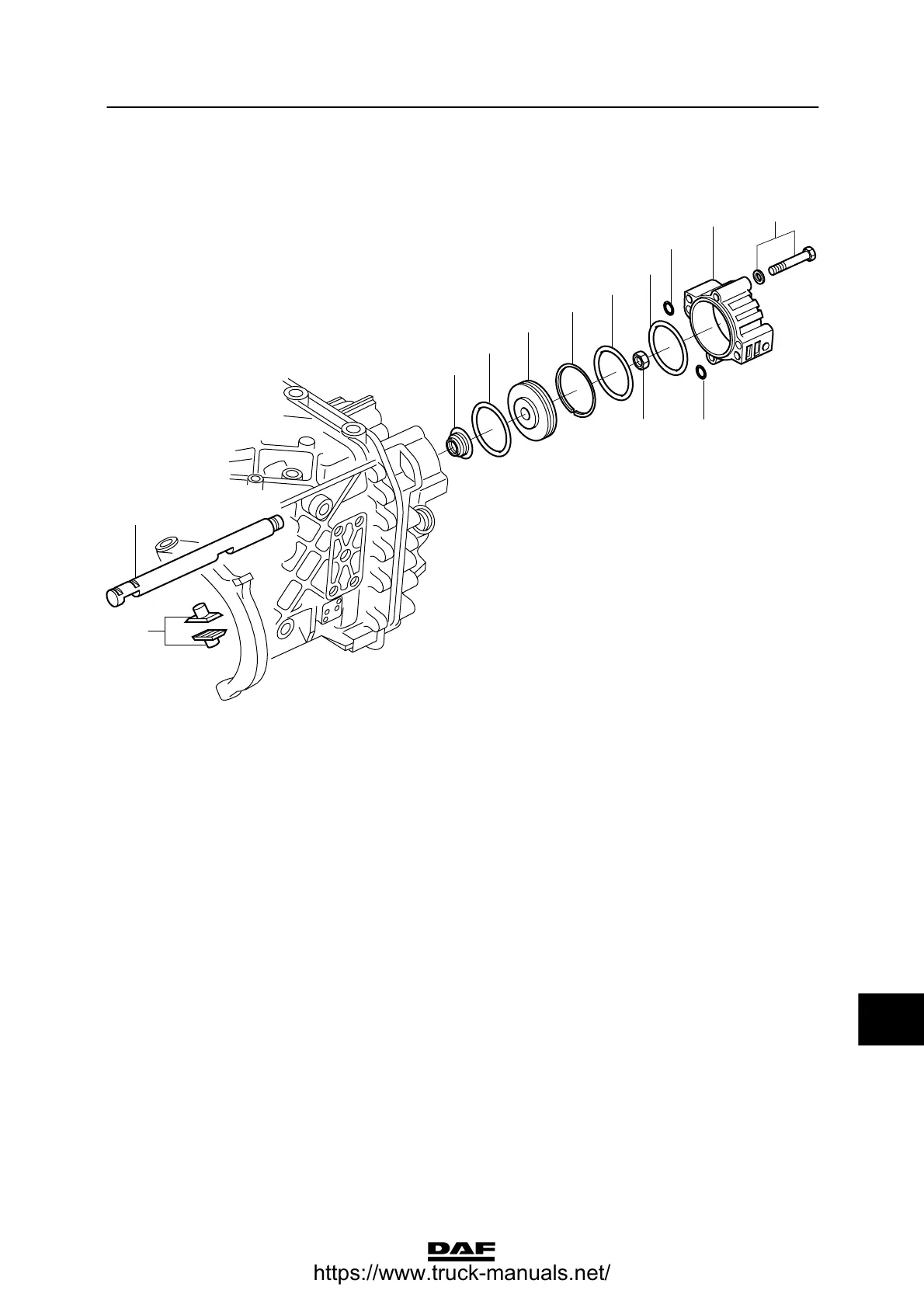

Removing the intarder drive
1. Remove the intarder.
2. Remove the air connections from the
high/low shift control to the cylinder (2).
3. Remove the attachment bolts (1) of the
cylinder (2) and remove the cylinder.
4. Remove the lock nut (6) of the piston (9)
and remove the piston and its O-rings.
5. Remove the two locking bolts of the
high/low shifting fork.
