DAF CF85 Series User Manual

0
3
CF65/75/85 series ZF 8/9/16S-109 gearbox
TECHNICAL DATA
5-1
5. ZF 8/9/16S-109 GEARBOX
5.1 GENERAL
Gearbox type
Each gearbox has a type-plate attached to it,
indicating the type of gearbox. This data is also
stated on the identity card of the relevant
vehicle.

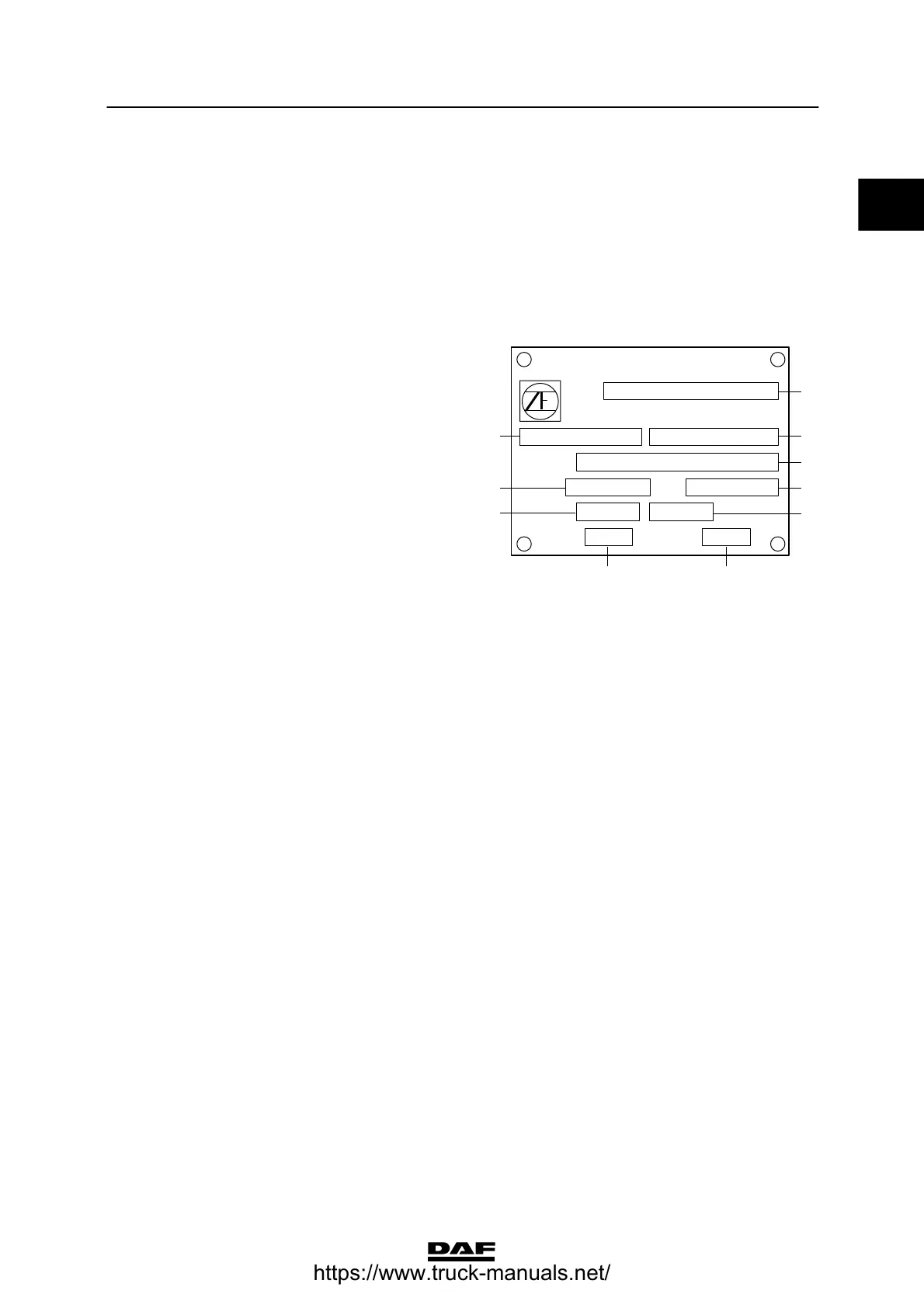

ZF gearbox type-plate
1. Type of gearbox
2. Series no. (ZF)
3. Parts list (ZF)
4. Specification no.
5. Pulse generator ratio
6. Gearbox ratio
7. Engine speed using PTO
8. PTO speed
9. Gearbox oil capacity
10. Oil specification
V300049
1
2
4
5
3
8
6
7
10
9
Output shaft bearing axial play
Output shaft bearing axial play 0.00 - 0.10 mm
Bearing axial pre-load, main and
input shafts
Bearing axial pre-load, main and input shafts
8/9S-109 0.18 - 0.30 mm
16S-109 0.18 - 0.30 mm
Bearing axial pre-load, auxiliary shaft
Bearing axial pre-load, auxiliary shaft
8/9S-109 0.18 - 0.30 mm
16S-109 0.18 - 0.30 mm
Retaining element
Standard spring force 168 N
Heavy-duty spring force 191 N
ᓻ 200337
