Inspection and adjustment CF65/75/85 series
3-2

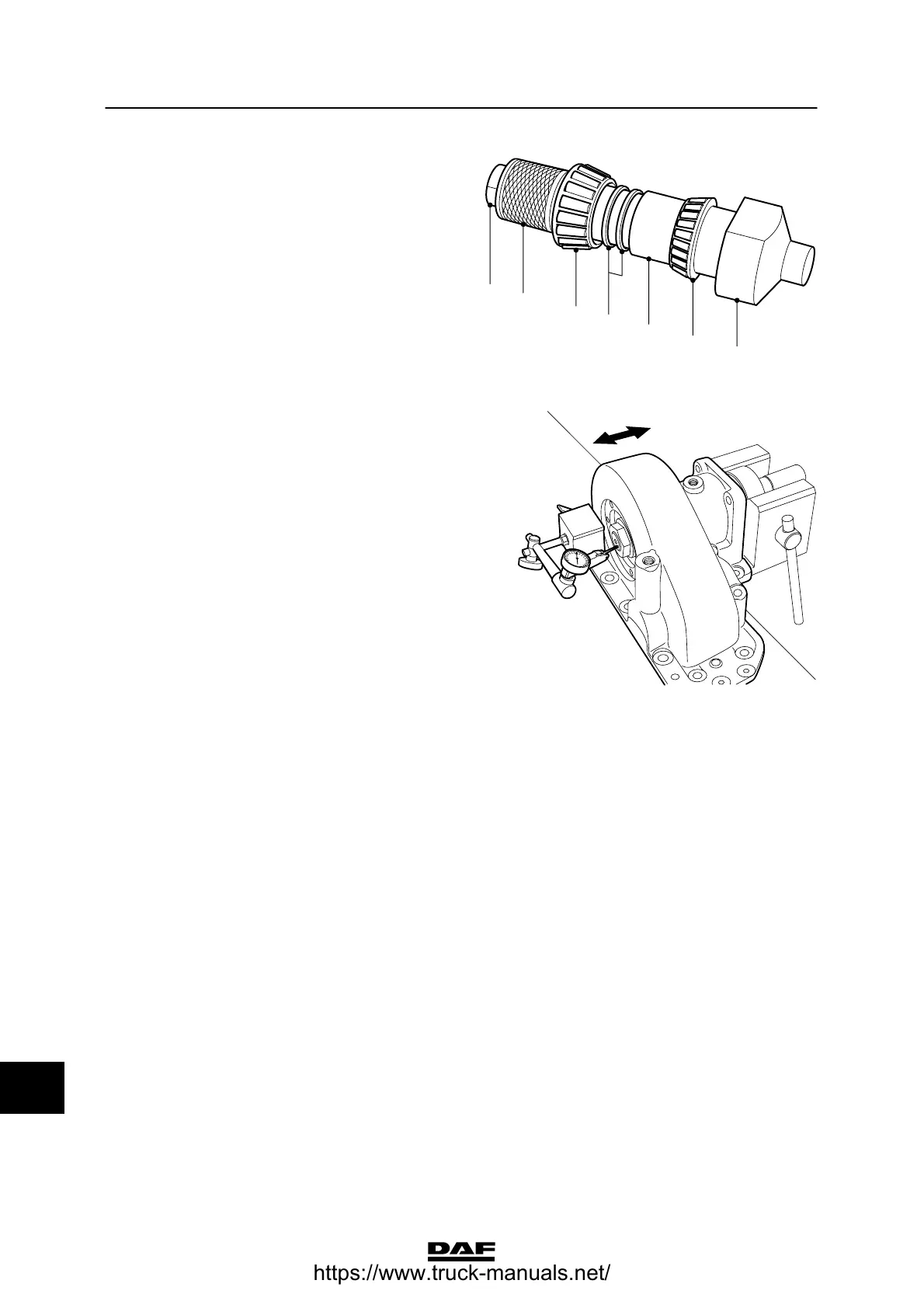

6. Fit the inner bearing (5) and the knurled
sleeve (6) onto the driving tool (the knurled
sleeve is used to simulate the
PTO gearwheel).
7. Fit the lock nut (7) and tighten to the
specified torque. See “Technical data”.
V300633
1
2
3
4
5
6
7
8. Place the dial gauge holder onto the
PTO housing and allow the stylus of the dial
gauge to rest on the driving tool.
9. Check the bearing play by moving the
PTO housing up and down relative to the
clamped driving tool in the axial direction.
See “Technical data”.
Note:
Select the proper shim if the axial play is
incorrect.
10. Disassemble the driving tool fully when the
correct shim thickness has been
established. See “Technical data”.
