2 Device Appearance
Two-door one-way access controller appearance and dimension are shown in Figure 2- 1
Dimension 1 and Figure 2- 2 Dimension 2. Unit is mm.

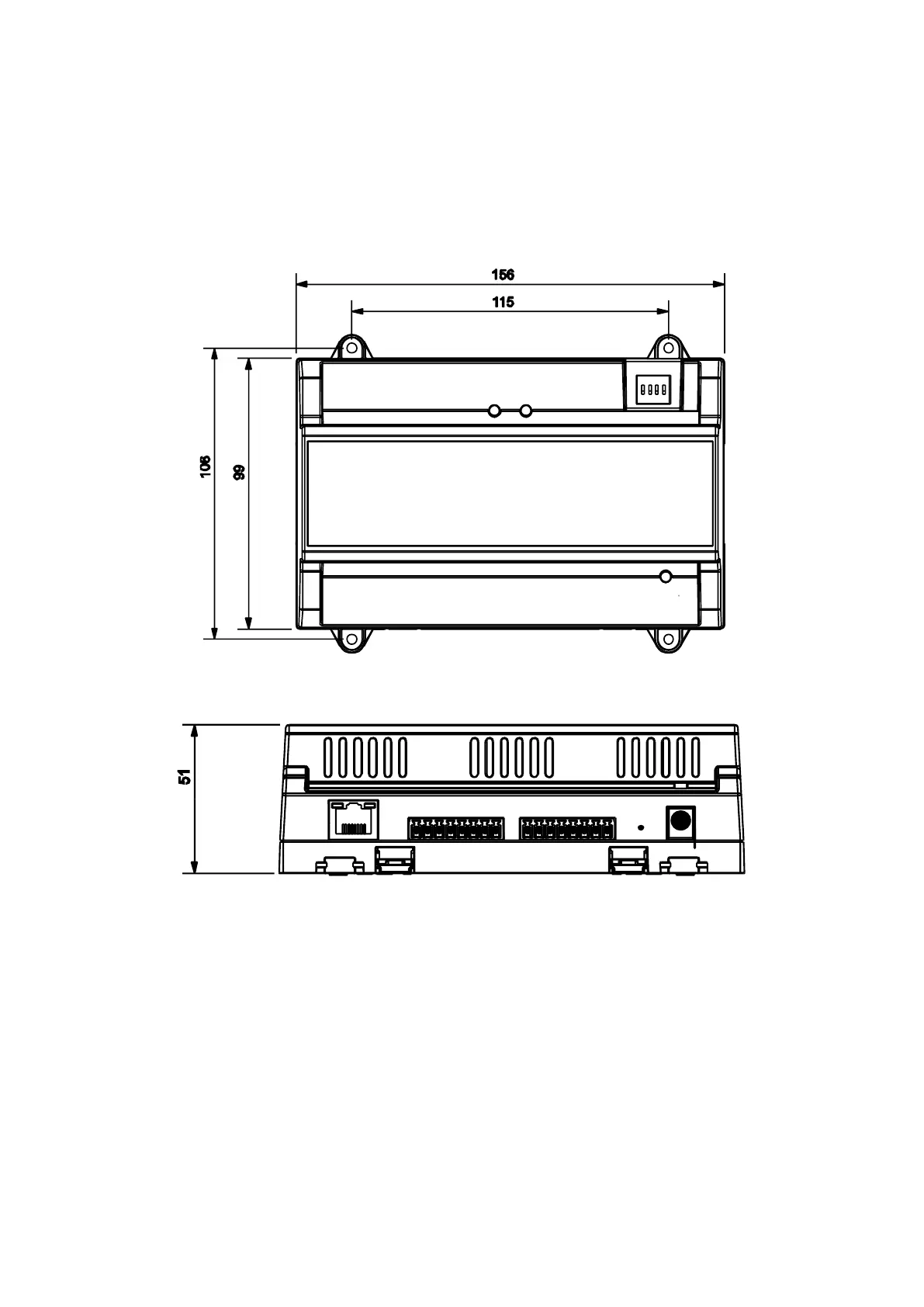

Figure 2- 1 Dimension 1
Figure 2- 2 Dimension 2
