User’s Manual
10
No. Description
No. Description
5
Traffic light power input
11
IR input
6 Traffic light output 12 RS-485 communication

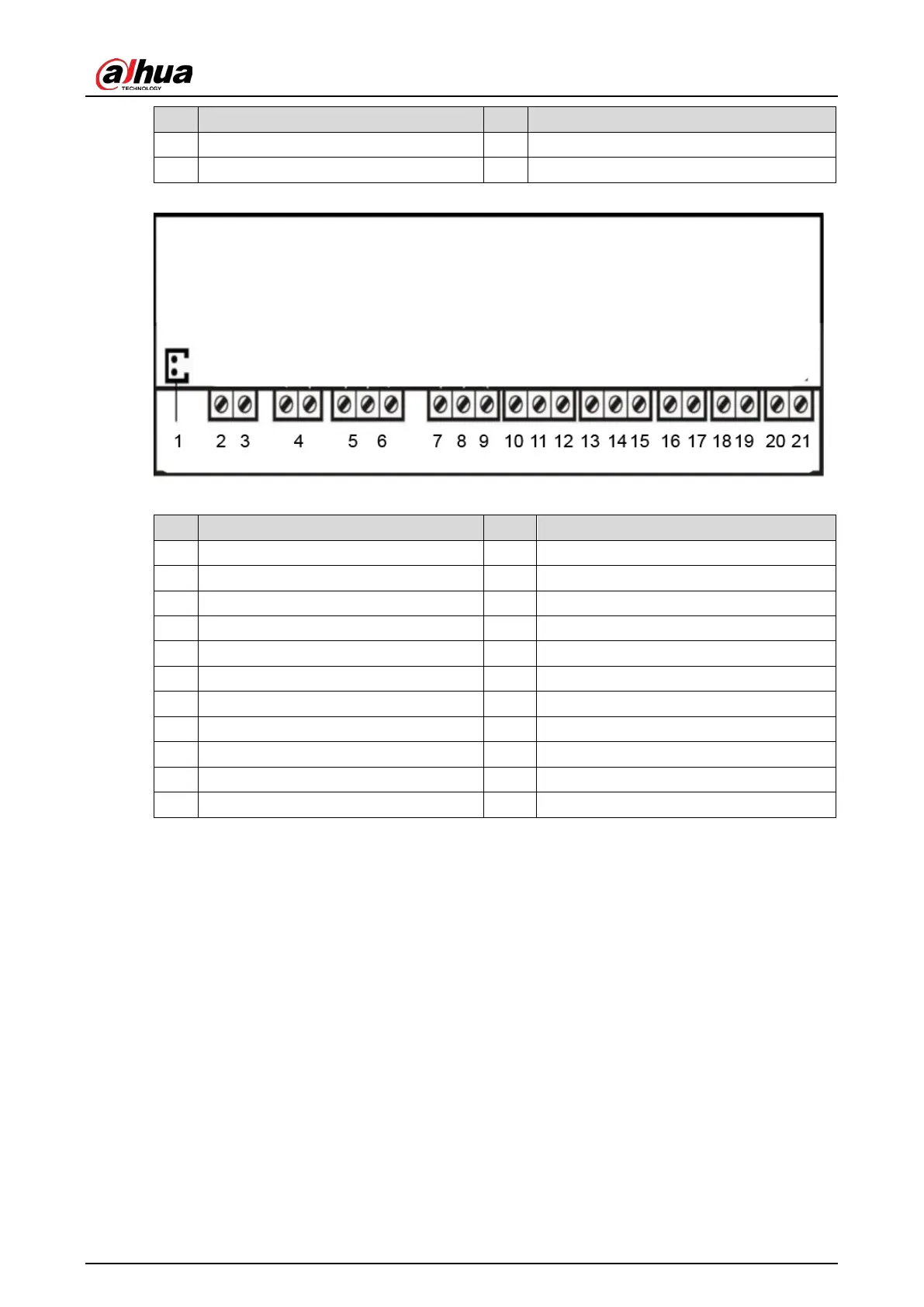

Control board wiring Figure 3-6
Table 3-5 Description of control board
No. Description
No. Description
1 Power off when arm rises 12 GND
2
24V DC power input
13
Radar loop
3 IN power output 14 Radar loop
4 Reserved 15
GND
5 Reserved 16 12V DC power input
6
Reserved
17
OUT output
7
Opened
18
Radar loop
8 Closed 19 GND
9 COM
20
RS485_A
10 Open Barrier 21 RS485_B
11
Close Barrier
—
—
Opening and Closing Control
Opening priority (falling barrier arm will rise if there is a rise signal) and closing priority (rising
barrier arm will fall if there is a fall signal) functions are available. It can be controlled by digital
on-off input, remote control, and RS-485 serial commands.
Automatic Rise when the Barrier Arm Meets Obstacle (Pressure Wave
Anti-smashing)
Falling barrier arm will immediately rise to the vertical state when it meets obstacles, to protect
vehicles or pedestrians. Sensitivity is adjustable.
