6
Main Menu
Main Menu
To activate, press the menu button on the bottom left of the bezel. The sub-menus of the main
menu are: PC Menu, Picture menu, Audio menu, OSD menu and Function menu.
Press the menu button to select the sub-menu item. The selected menu item will show a
bordered wireframe. Press the ▲▼ button to move among the secondary menu items of the
sub-menu.

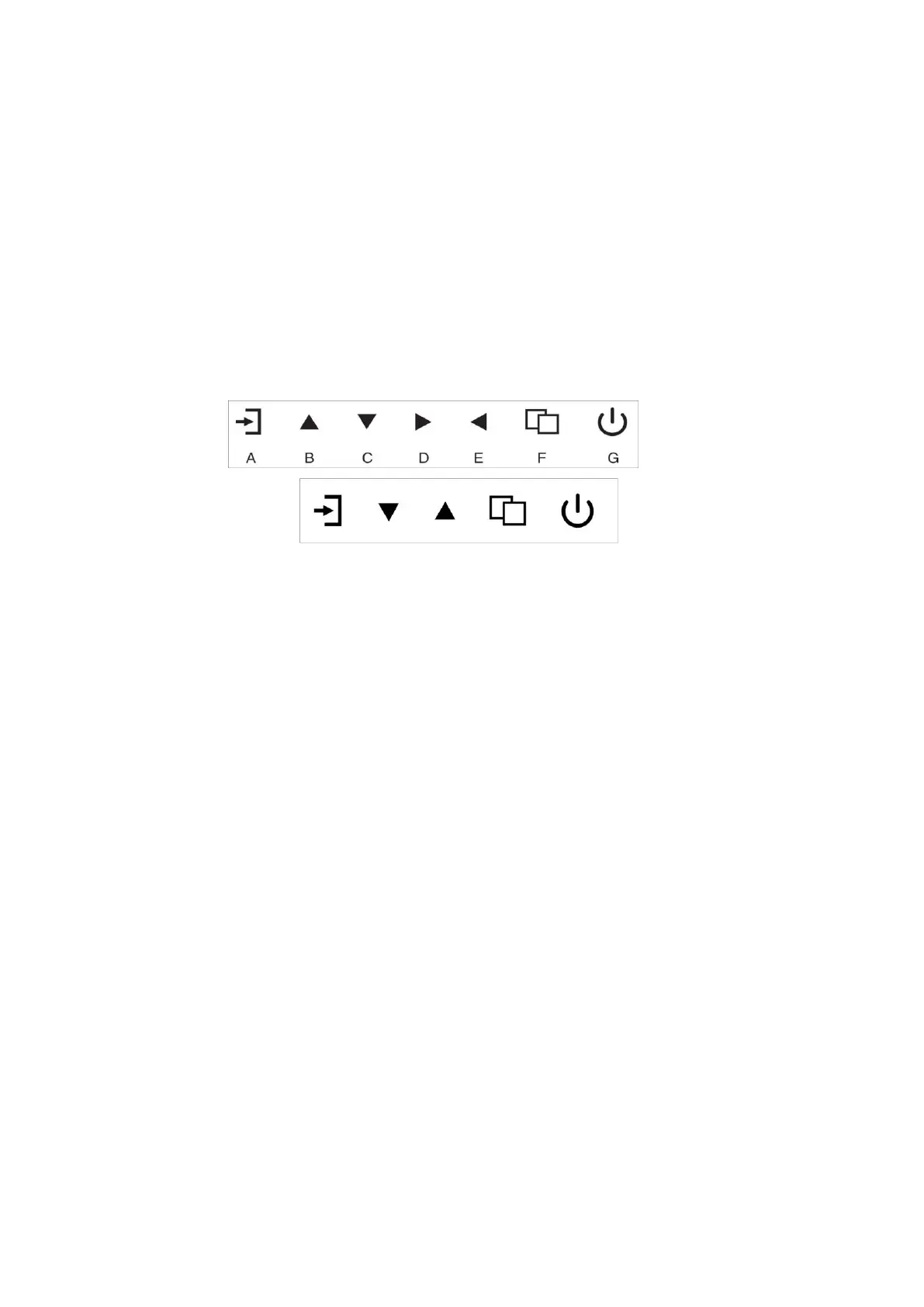

(7Key)
or (5 Key)
A. “Source” button
Press the button to display all the signal channel menus.
B. “Upward” button
Press the button to move the cursor to the needed function.
Press the button to change the selected function in OSD menu item.
C. “Downward” button
Press the button to move the cursor to the needed function.
Press the button to change the selected function in OSD menu item.
D. “Rightward” button
Press the button to move the cursor to the needed function.
Press the button to change the selected function in OSD menu item.
E. “Leftward” button
Press the button to move the cursor to the needed function.
Press the button to change the selected function in OSD menu item.
F. “Menu” button
Press the button to display the OSD main menu.
Press the button to Exit the OSD menu or menu item.
G. “Power” button
Press the button to turn on or turn off the display.
