3 Device Installation

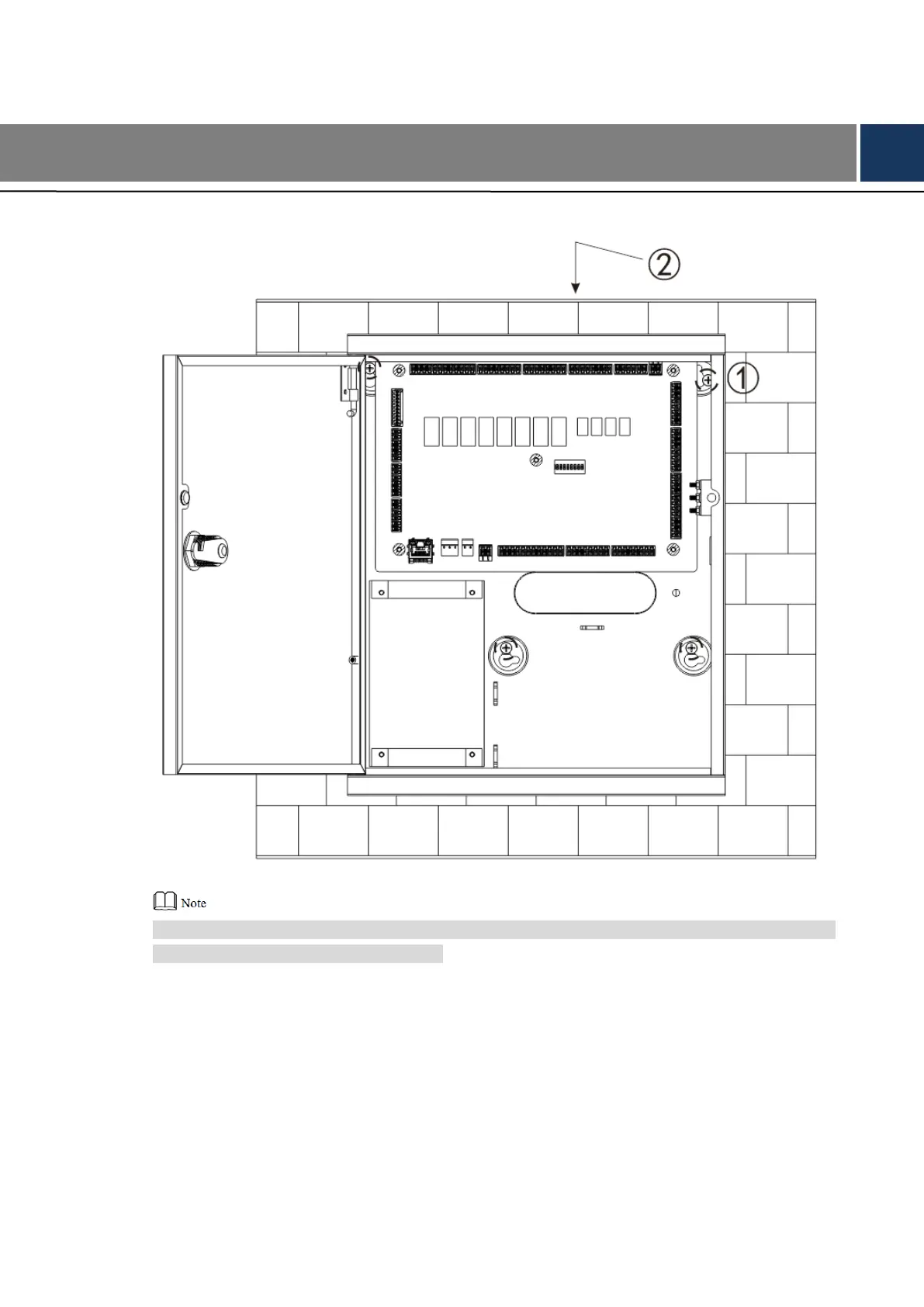

Device installation diagram is shown in Figure 3-1.
Figure 3-1
Please ensure that device mounting surface is able to bear 3 times as many as the total weight
of the device, bracket and accessories.
Installation steps:
Step 1 Measure every hole distance and position according to holes at rear shell of the device;
drill holes in the wall according to the measured positions, and embed expansion nuts.
Step 2 Fix screws into the wall via expansion nuts, and hang the whole device onto the
screws.
