Dahua DH-XVR4108HS-X User Manual

The Grand Tour 35
No.
Port Name
Function
5
HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Please note when the HDMI output resolution is 4K, the VGA
output stops.
6
VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.
7
Network port
Connects to Ethernet port.
8
RS-485
communication
port
Connects to the control devices such as speed dome PTZ.
RS-485_A port is connected by the cable A and RS-485_B is
connected to the cable B.
9
Ground terminal.
10
USB port
Connects to external devices such as USB storage device,
keyboard and mouse.
Table 3-25
3.3 Remote Control Operations
Please note the remote control is not our standard accessory and might not be included in the
accessary bag. It is supplied dependent on the model you purchased.

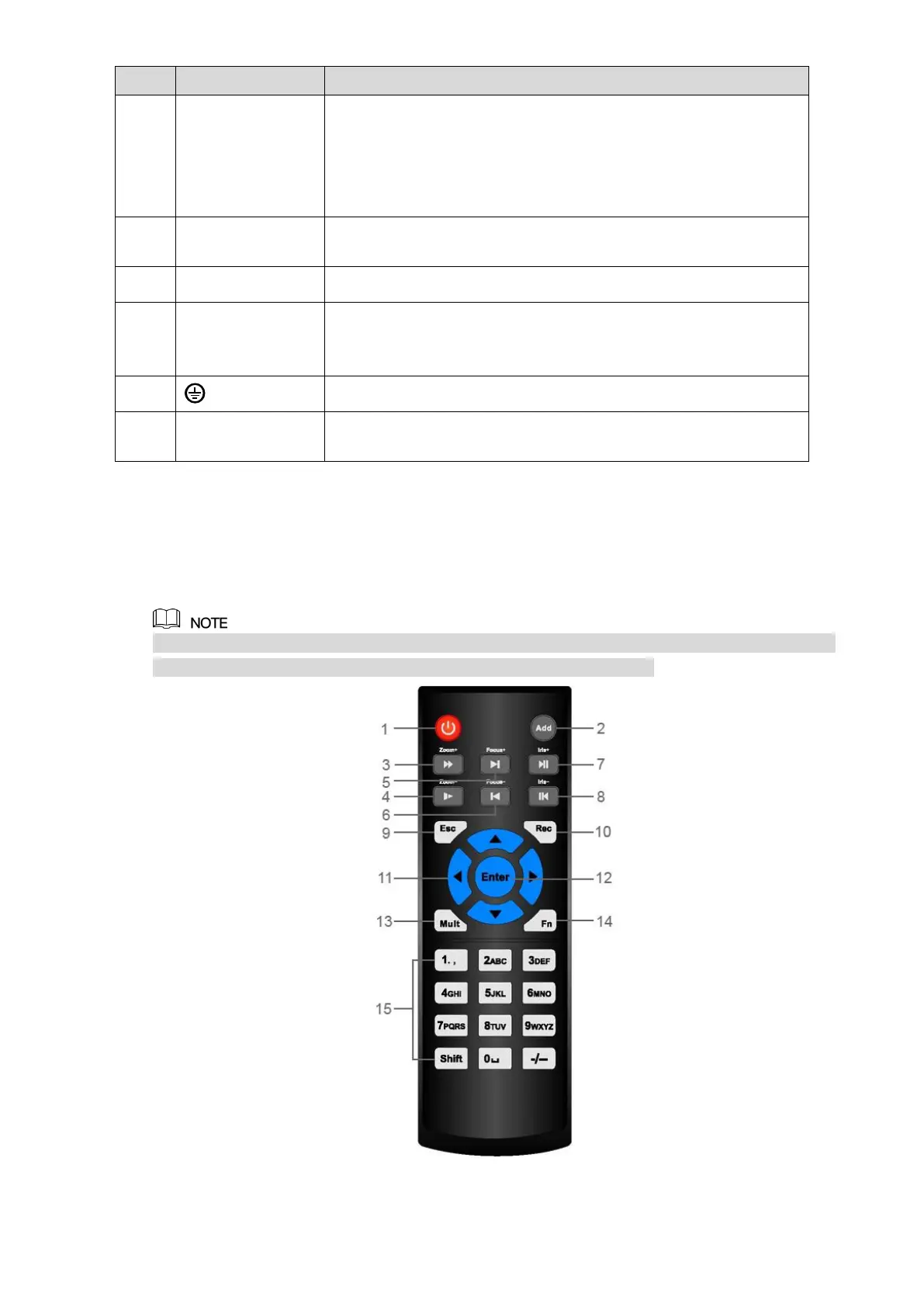

Figure 3-28

Dahua DH-XVR4108HS-X Specifications

General

Main Processor	Embedded Processor
Operating System	Embedded LINUX
Video Input	8 Channel, BNC
Audio In/Out	1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Output	1 HDMI, 1 VGA
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Internal HDD	1 SATA Port, up to 6TB capacity
Hard Drive	1 SATA Port, up to 6TB capacity
Compression	H.265+/H.265/H.264+/H.264
Power Supply	DC12V/1.5A
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
Operating Humidity	10% ~ 90% RH
Weight	0.8kg (1.8 lb) (without HDD)
Channels	8
Recording Resolution	1080p; 720p; 960H; D1; CIF
Bit Rate	1Kbps ~ 6144Kbps Per Channel
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection), Alarm
Resolution	1920×1080, 1280×1024, 1280×720
Ethernet	1 RJ-45 Port (100M)
Network Interface	RJ-45 port (10/100M)
Network Functions	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search
Storage Capacity	Up to 6TB
USB Interface	2x USB 2.0
Power Consumption	<10W (Without HDD)
Working Environment	-10°C ~ +55°C / 10% ~ 90% RH
Dimension	260mm×236mm×48mm (10.2"×9.3"×1.9")
Dimensions	260mm×236mm×48mm (10.2"×9.3"×1.9")
