Dahua DH-XVR5108H-4KL-X User Manual

The Grand Tour 35
No.
Port Name
Function
5
HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Please note when the HDMI output resolution is 4K, the VGA
output stops.
6
VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.
7
Network port
Connects to Ethernet port.
8
RS-485
communication
port
Connects to the control devices such as speed dome PTZ.
RS-485_A port is connected by the cable A and RS-485_B is
connected to the cable B.
9
Ground terminal.
10
USB port
Connects to external devices such as USB storage device,
keyboard and mouse.
Table 3-25
3.3 Remote Control Operations
Please note the remote control is not our standard accessory and might not be included in the
accessary bag. It is supplied dependent on the model you purchased.

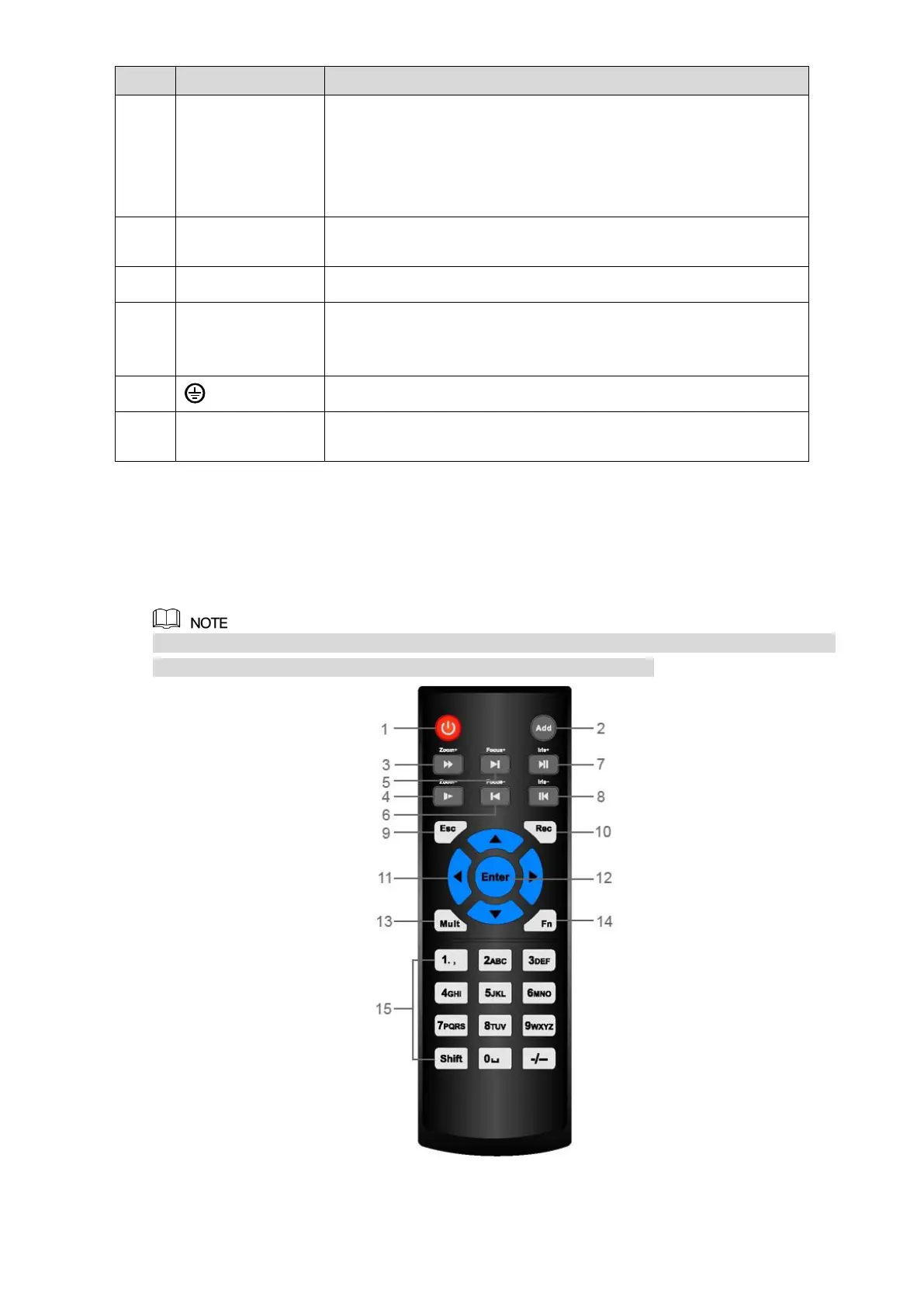

Figure 3-28

Dahua DH-XVR5108H-4KL-X Specifications

General

Video Input Channels	8
Max Resolution	4K (3840 × 2160)
Max IP Camera Input	8
Smart H.265+/H.265	Yes
Operating System	Embedded Linux
Working Humidity	10% to 90% (non-condensing)
Video Output	HDMI, VGA
Compression Format	H.265, H.264
Storage Capacity	Up to 10TB
Network Interface	1 × 10/100/1000 Mbps
Power Supply	12V DC
Audio Input/Output	1/1
Max Recording Resolution	8MP
Hard Drive Bays	1 SATA
Working Temperature	-10°C to +55°C
