Figure 2-5 Wall mount
2.2.2 86 Box Mount
Step 1 Put an 86 box in the wall at an appropriate height.
Step 2 Fasten the installation bracket to the 86 box with 2 screws.
Step 3 Wire the Time & Attendance.
Step 4 Fix the Time & Attendance on the bracket.
Step 5 Screw in 1 screw securely at the bottom of the Time & Attendance.

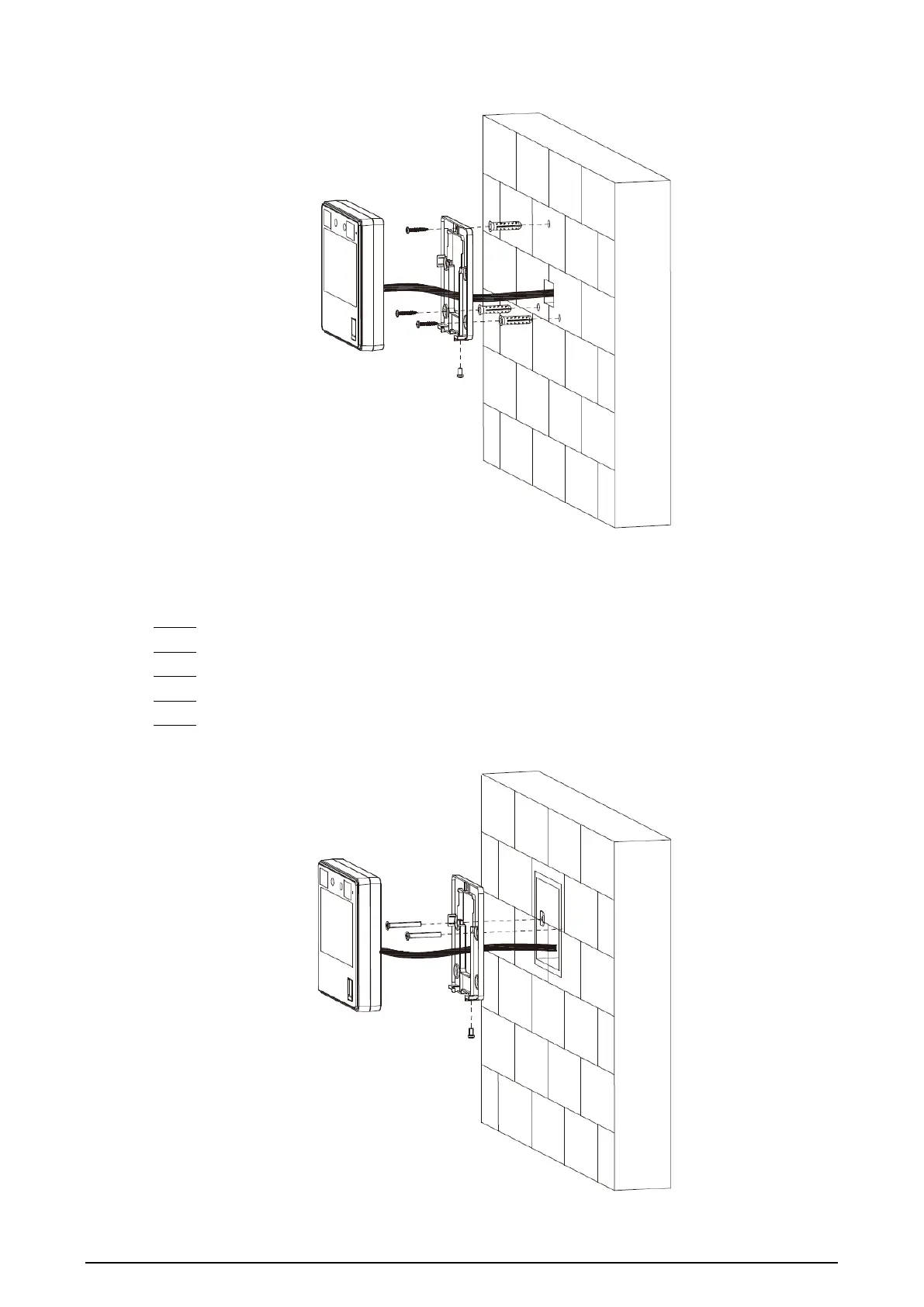

Figure 2-6 86 box mount
