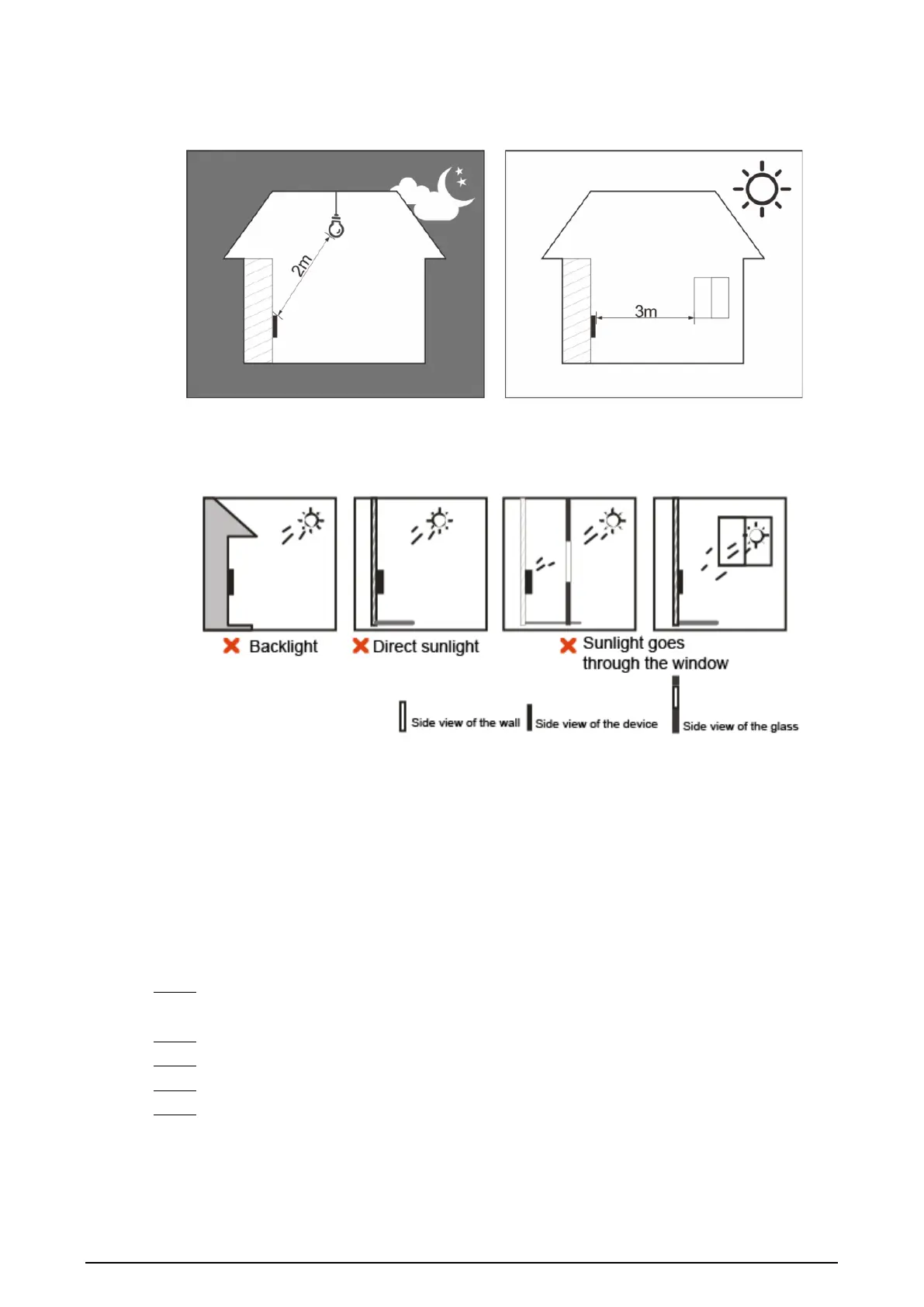

Recommended Installation Location
Figure 2-3 Recommended installation location
Installation Location Not Recommended
Figure 2-4 Installation location not recommended
2.2 Installation Process
All the Time & Attendance has the same installation method. This section takes fingerprint model of
Time & Attendance as an example.
2.2.1 Wall mount
Step 1 According the position of the holes in the installation bracket, drill 3 holes in the wall. Put
expansion bolts in the holes.
Step 2 Use the 3 screws to fix the installation bracket to the wall.
Step 3 Wire the Time & Attendance.
Step 4 Fix the Time & Attendance on the bracket.
Step 5 Screw in 1 screw securely at the bottom of the Time & Attendance.
