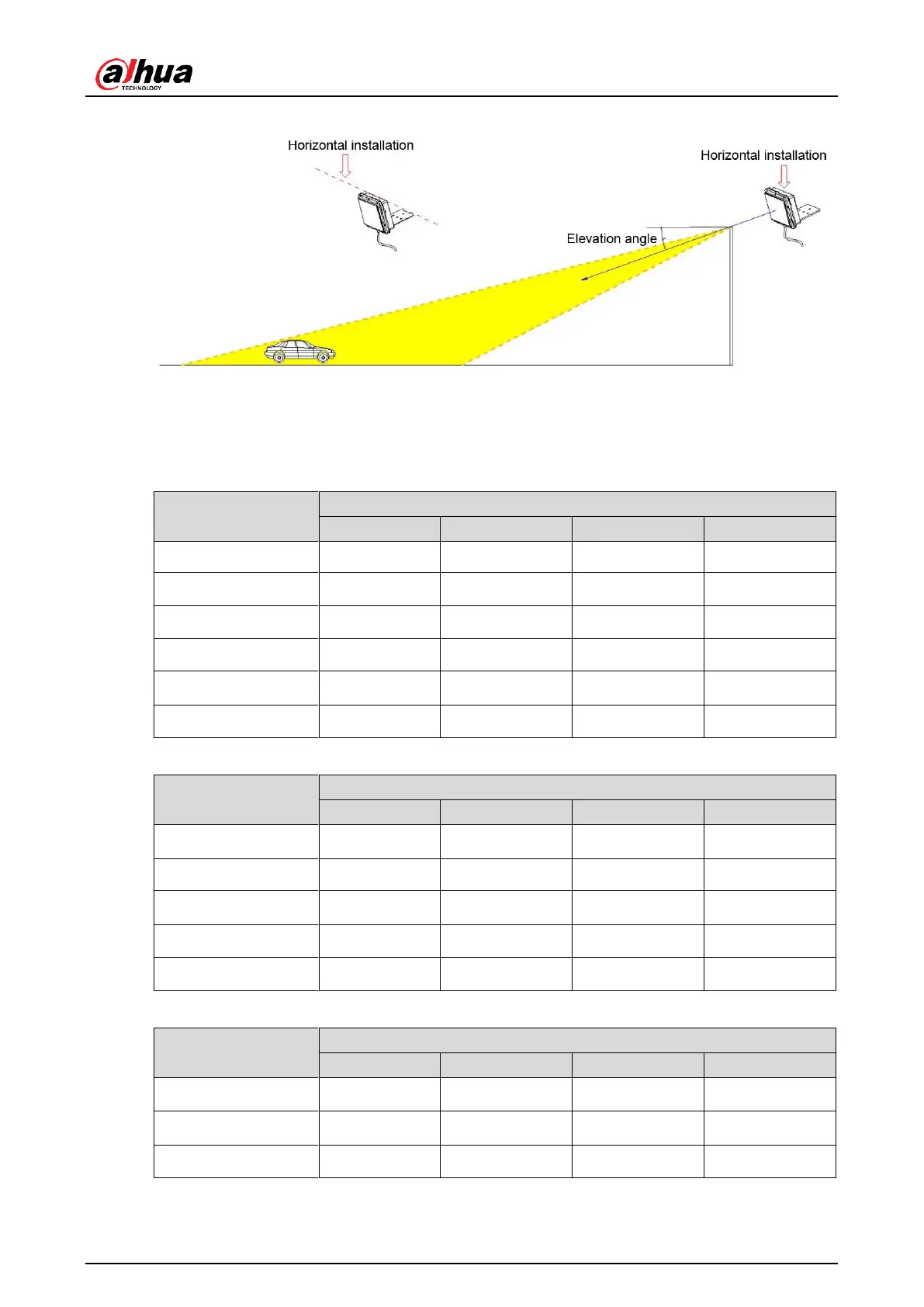

Adjust elevation angle of Radar Figure 3-2
How to adjust the elevation angle of the Radar:
 Measure the elevation angle by using a protractor, and then adjust the angle (if necessary)
according to Table 3-1, Table 3-2, and Table 3-3.
Table 3-1 Typical elevation angle in approaching mode (m (ft))
Capture Distance
Installation Height
5 (16.4)
6 (19.7)
7 (23.0)
8 (26.3)
19 (62.3)
12°
14°
16°
19°
21 (68.9)
12°
14°
16°
17°
23 (75.5)
12°
13°
15°
16°
25 (82.0)
11°
13°
15°
15°
27 (88.6)
11°
13°
14°
15°
29 (95.1)
11°
13°
14°
15°
Table 3-2 Typical elevation angle in receding mode (m (ft))
Capture Distance
Installation Height
5 (16.4)
6 (19.7)
7 (23.0)
8 (26.3)
25 (82.0)
16°
18°
20°
22°
26 (85.3)
15°
17°
19°
21°
28 (91.9)
14°
16°
18°
20°
30 (98.4)
14°
15°
17°
19°
32 (105.0)
13°
15°
16°
17°
Table 3-3 Typical elevation angle in both-direction mode (m (ft))
Capture Distance
Installation Height
5 (16.4)
6 (19.7)
7 (23.0)
8 (26.3)
25 (82.0)
13°
15°
170°
19°
27 (88.6)
12°
14°
16°
18°
29 (95.1)
11°
13°
15°
17°
 Adjust the elevation angle by using a laser pointer.
