20

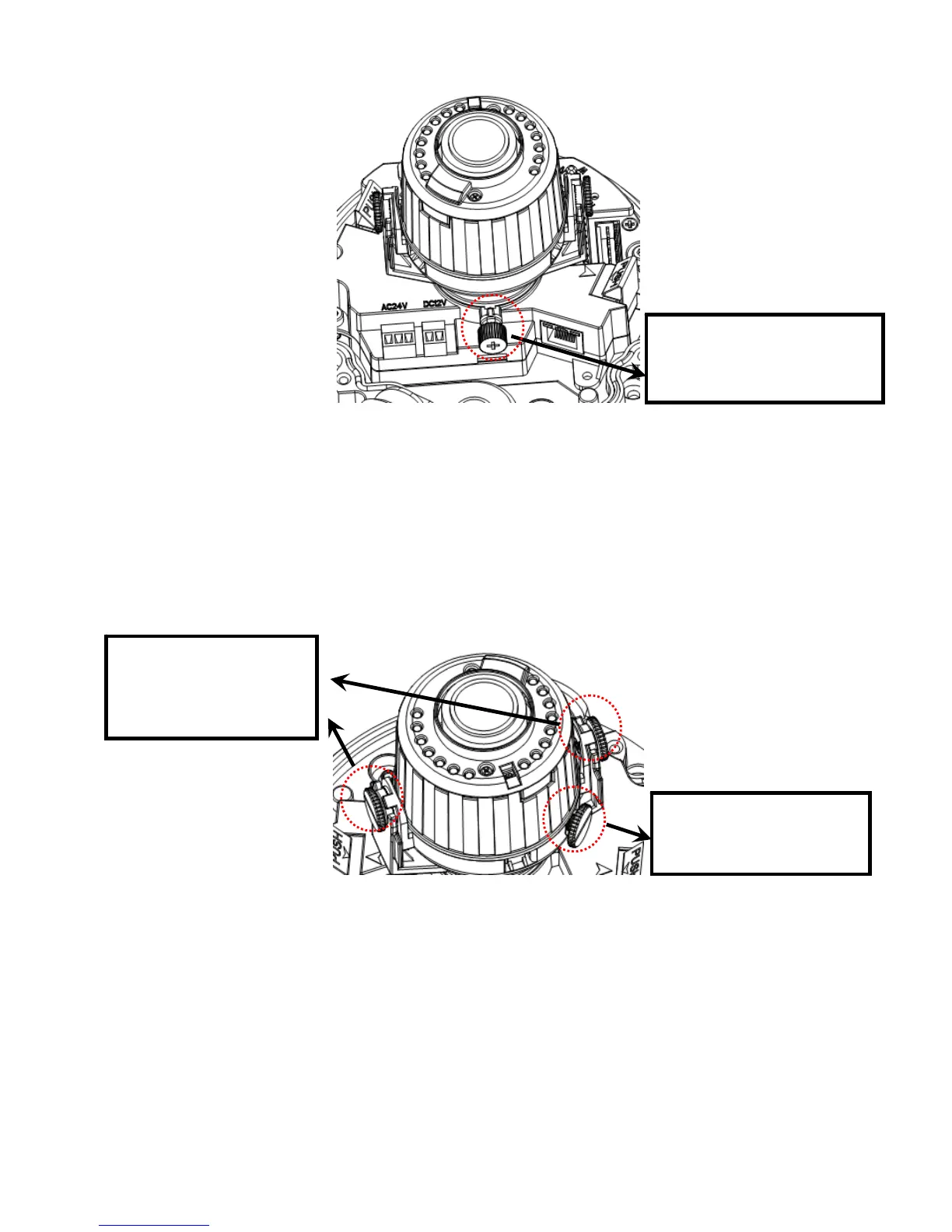

Figure 3-6
c). Lens tilt rotation angle. Please refer to Figure 3-7 to unfasten the lock screw B and lock screw C and
adjust the tilt monitor angle to the proper position. Then fix the lock screw B and lock screw C. The tilt
angle ranges from -23°~+73°.
d). Image pan rotation angle setup. Please refer to Figure 3-7 to turn lock screw D to adjust the video
pan angle. Then fix the lock screw B and C. The video pan angle ranges from 0°~+350°.
Figure 3-7
e) For the motorized zoom series product, please skip current step. Please refer to chapter 3.2.2 for the
lens zoom and focus operation of the manual focus series product.
f) For the IR series product, please skip current step and complete the angle setup directly. For the non-
IR series product, please put back the black plastic decoration enclosure to complete the angle setup.
Important
Lock Screw A
Adjust lend pan rotation
angle.
Lock screw B/C
Adjust lens tilt rotation
angle.
Lock screw D
Adjust lend pan rotation
angle.
To Next Page
