Step 2
Before you go to the Step 4 in the chapter 3.2.1 installation steps, please pull through cable with the
waterproof airproof plug to the device chassis via the installation hole at the bottom of the chassis and
then connect the cable pins.
Step 3
Refer to Step 4 and Step 5 in the chapter 3.2.1 installation steps to install and connect the cable pin to
the device and then follow the proper steps to go on the installation.
Important
This series product has the power connection pin and I/O connection pin for you to pull through
the signal cable.
3.3 SD Installation
Warning!
Please unplug the device power cable and then shutdown the device before you install the SD
card.
Step 1
Please refer to Step2 in chapter 3.2.1 installation steps to open the device protection enclosure.
Step 2
Please find the “SD” mark inside the device and adjust the SD card direction according to prompt
direction. Insert the card to the slot and then install the SD card. See Figure 3-11.

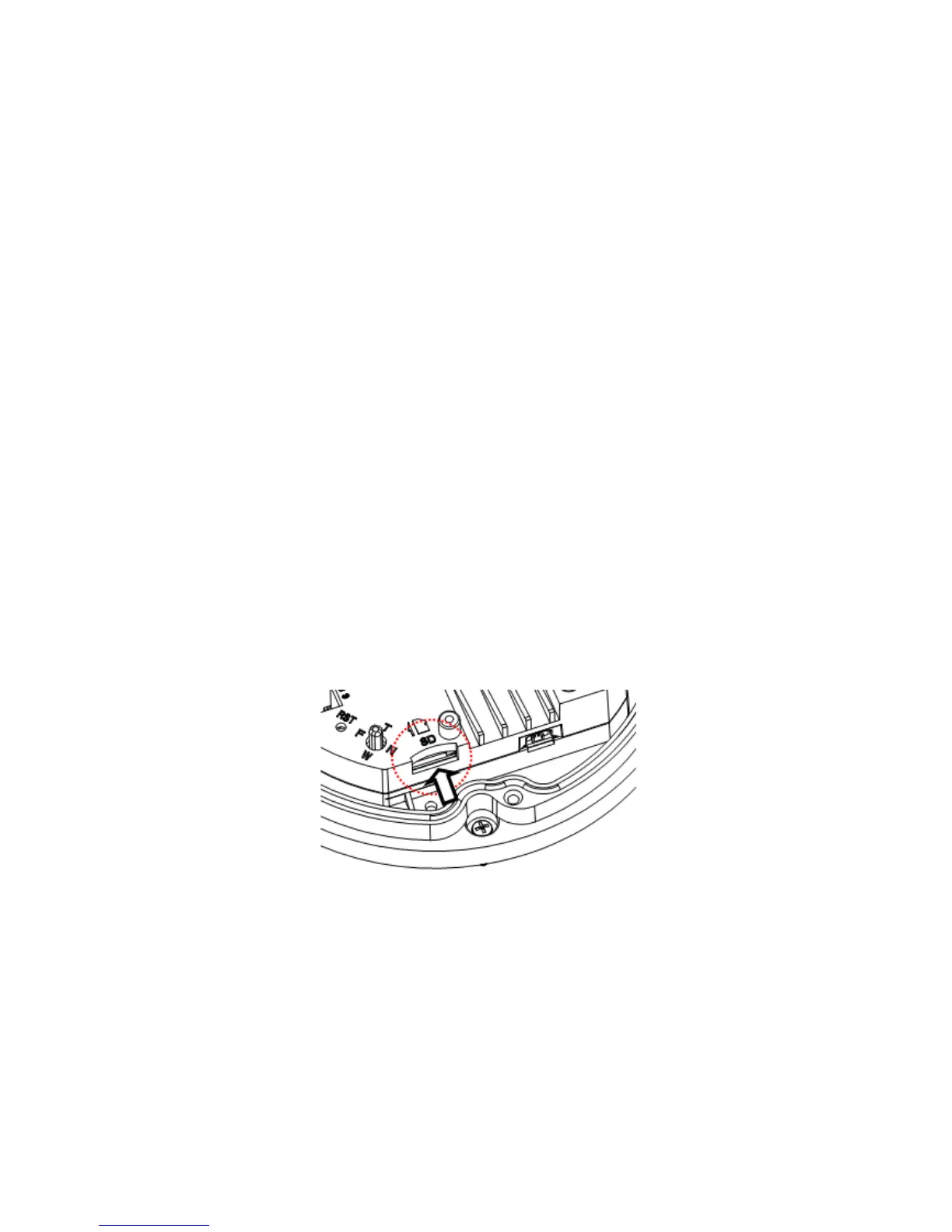

Figure 3-11
Step 3
Please refer to Step 7 in chapter 3.2.1 to put the device protection enclosure back.
