HD IR Waterproof Network Camera Quick Start Guide
16

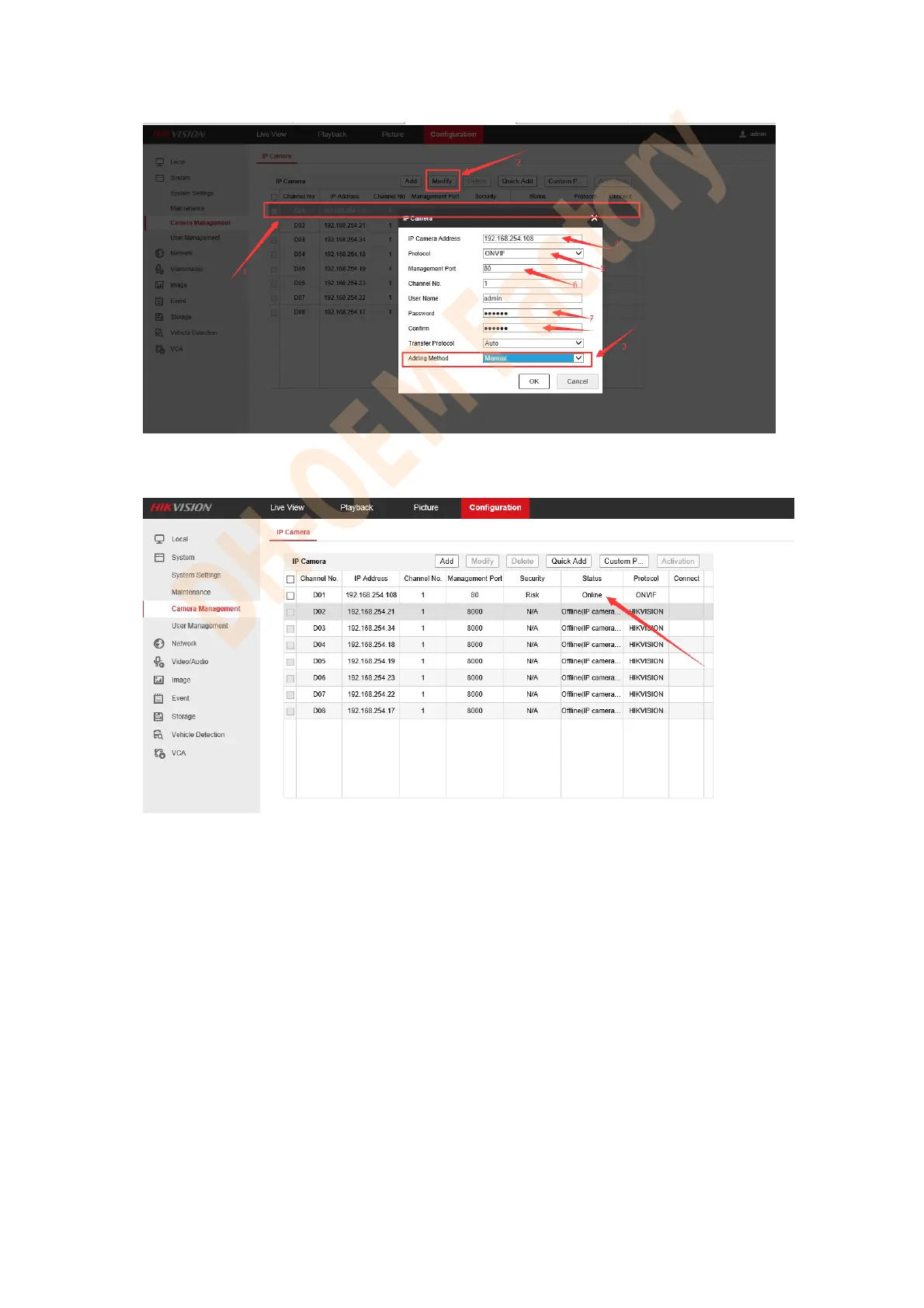

Click camera channel , then click “modify”, adding method select “manual”, enter camera IP,
protocol select “ ONVIF”, Port “80”, enter the camera password, click “OK”. Shown in Figure 2-9
Figure 2-9
Refresh several times, status will be online, connected successful. Shown in Figure 2-10.
Figure 2-10
2.2.2 Camera connect to Hikvison NVR via Router or POE Switch (NVR havn’t POE Ports)
The camera , NVR and router IP must be in same Segment, such as the Router IP is 192.168.1.1,the
camera and NVR IP have to be 192.168.1.XX. Log in the NVR, Select “Configuration> Camera
Management > IP camera, See Figure 2-11
To Next Page
