23

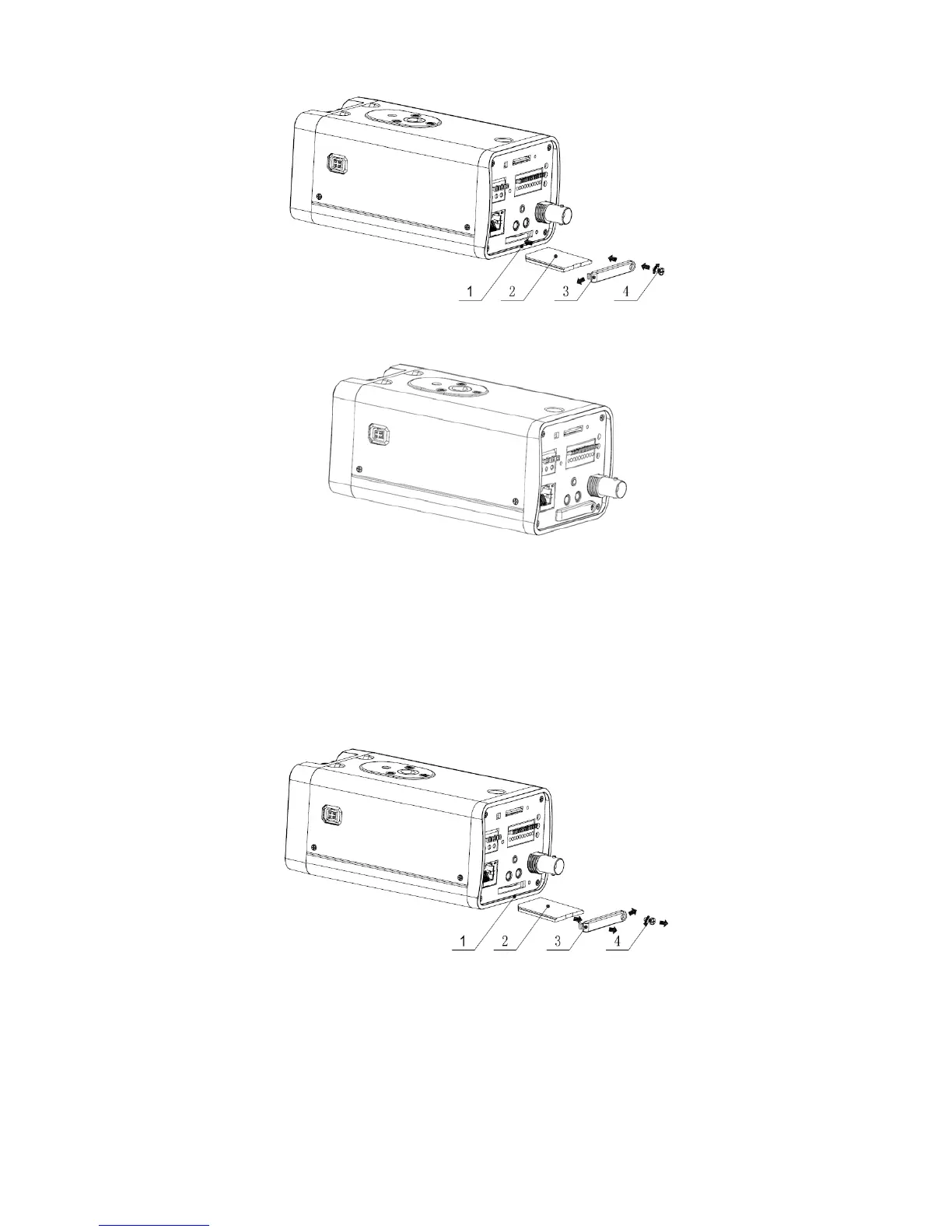

Figure 3-4
Figure 3-5
3.2.2 Remove
Please follow the steps listed below to remove SD card. The interface is shown as Figure 3-6.
z Use the screwdriver to loosen the screw of SD card protection cap in the rear panel.
Remove the cap from the camera.
z Follow the SD card direction to remove the SD card.
z Insert the SD card protection cap.
z Use the screwdriver to fix the screw to secure the protection cap.
Figure 3-6
3.3 3G Card
3.3.1 Installation
The 3G card installation is the same with the SD card.
Please follow the steps listed below to install 3G card. The interfaces are shown as Figure 3-7
and Figure 3-8.
