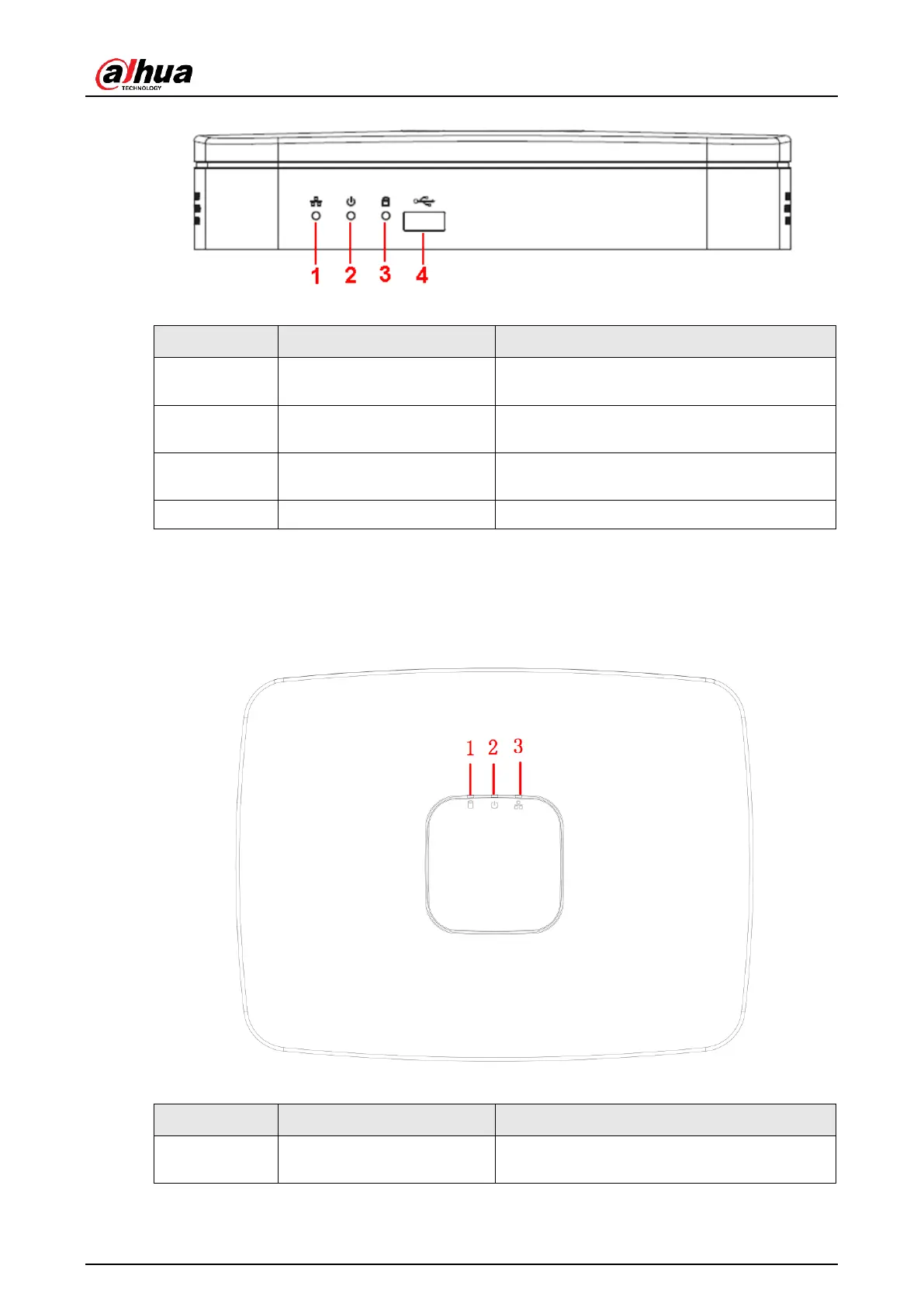

Figure 2-4 Front panel
Table 2-4
SN
Name
Function
1
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
HDD status indicator light
The red light becomes on when HDD is
abnormal.
4
USB
USB port.
2.1.5 NVR41-8P-4KS2/L Series
The front panel is shown as below. See Figure 2-5.
Figure 2-5
Table 2-5
SN
Name
Function
1
HDD status indicator light
The red light becomes on when HDD is
abnormal.
