Dahua NVR5216-16P-I - NVR54-16 P-I;4416-16 P-I;4432-I Series; NVR52-16 P-I;52-8 P-I;4216-16 P-I;4208-8 P-I;4216-I Series

Device Installation 29
Figure 3-17
3.6.2 NVR54-16P-I/4416-16P-I/4432-I Series

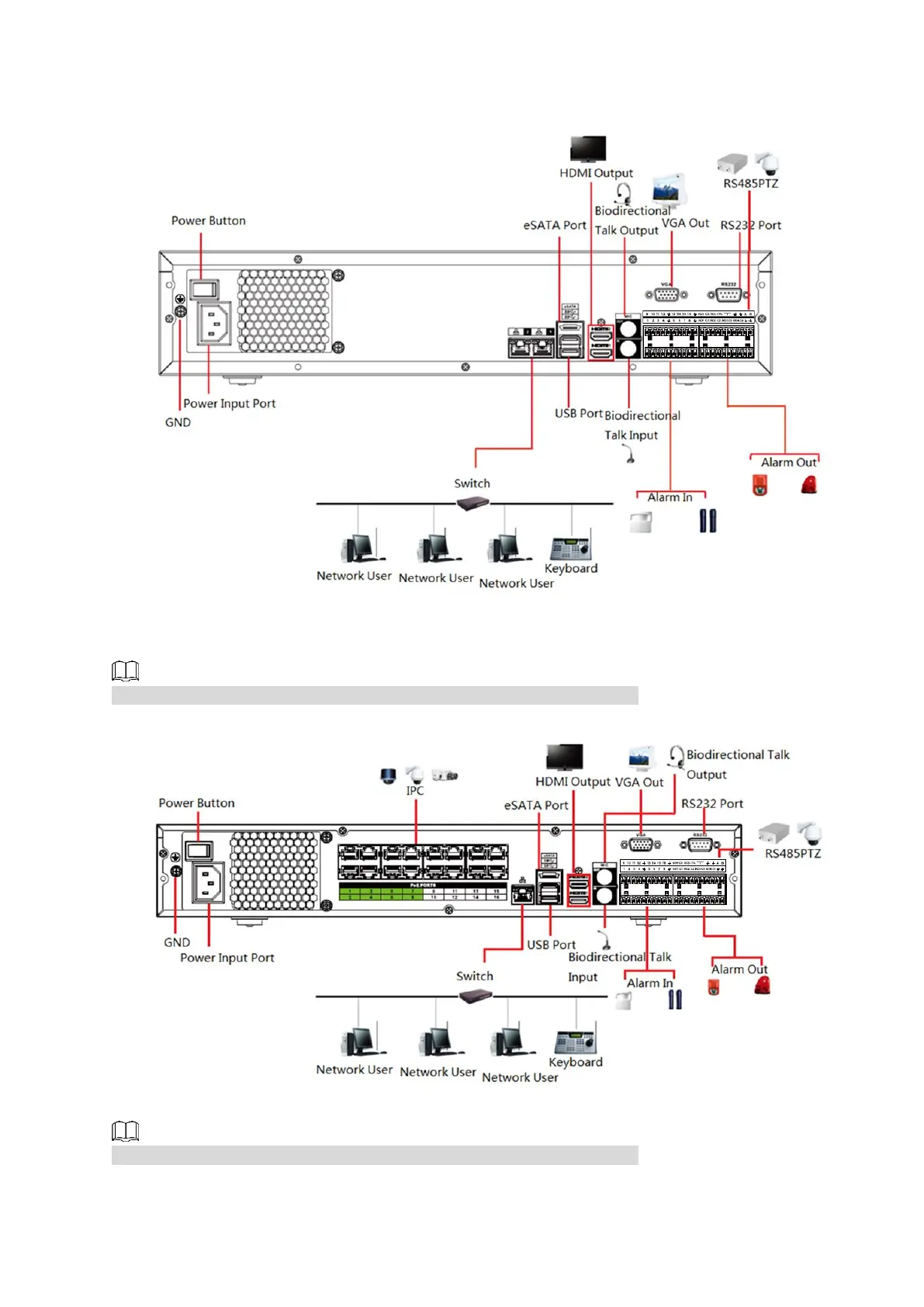

The following figure is for reference only. The actual product shall prevail.
Figure 3-18
3.6.3 NVR52-16P-I/52-8P-I/4216-16P-I/4208-8P-I/4216-I Series
The following figure is for reference only. The actual product shall prevail.
