Dahua PTZ Network Camera User Manual

Structure 6
Cable Description
The Camera is equipped with a multi-functional cable including power cord, video cable, audio
cable, RS-485 control cable, alarm cable, network cable, high-frequency cable, and optical fiber

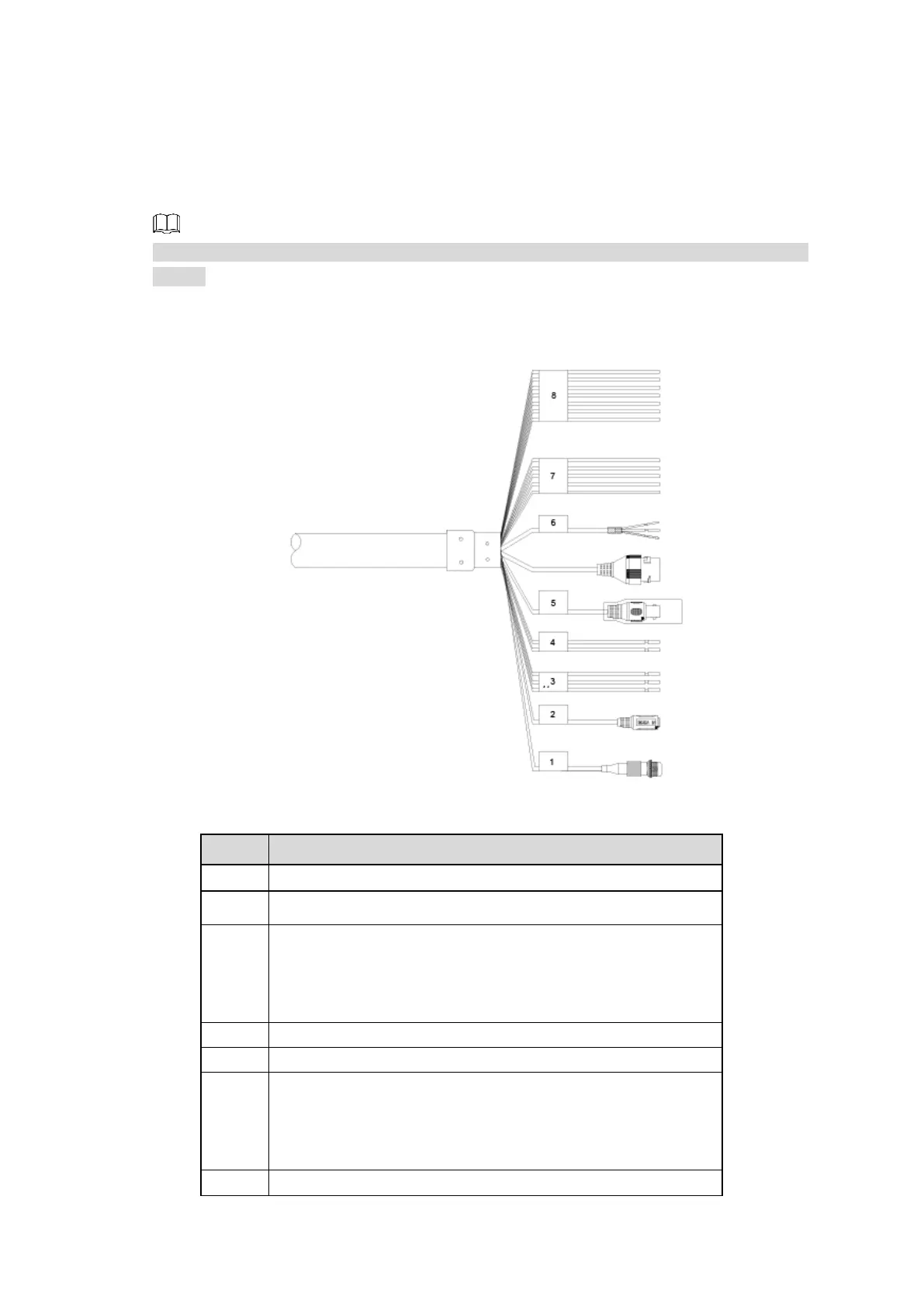

cable. For picture of the multi-functional combination cable, see Figure 2-6.
Camera cables can be different depending on different models, and the actual cables shall
prevail.
Cables Figure 2-6
Table 2-5 Cable descriptions
No.
Description
1
FC connector.
2
DC power supply input port
3
24V AC power supply input
Red: V+

Black: V–

Yellow and green: Ground line

4
RS-485: Yellow: A+, Orange: B–
5
Video output port
6
Ethernet port:
White: audio input

Red: audio output

Black: audio ground line

7
Blue: alarm output 1

