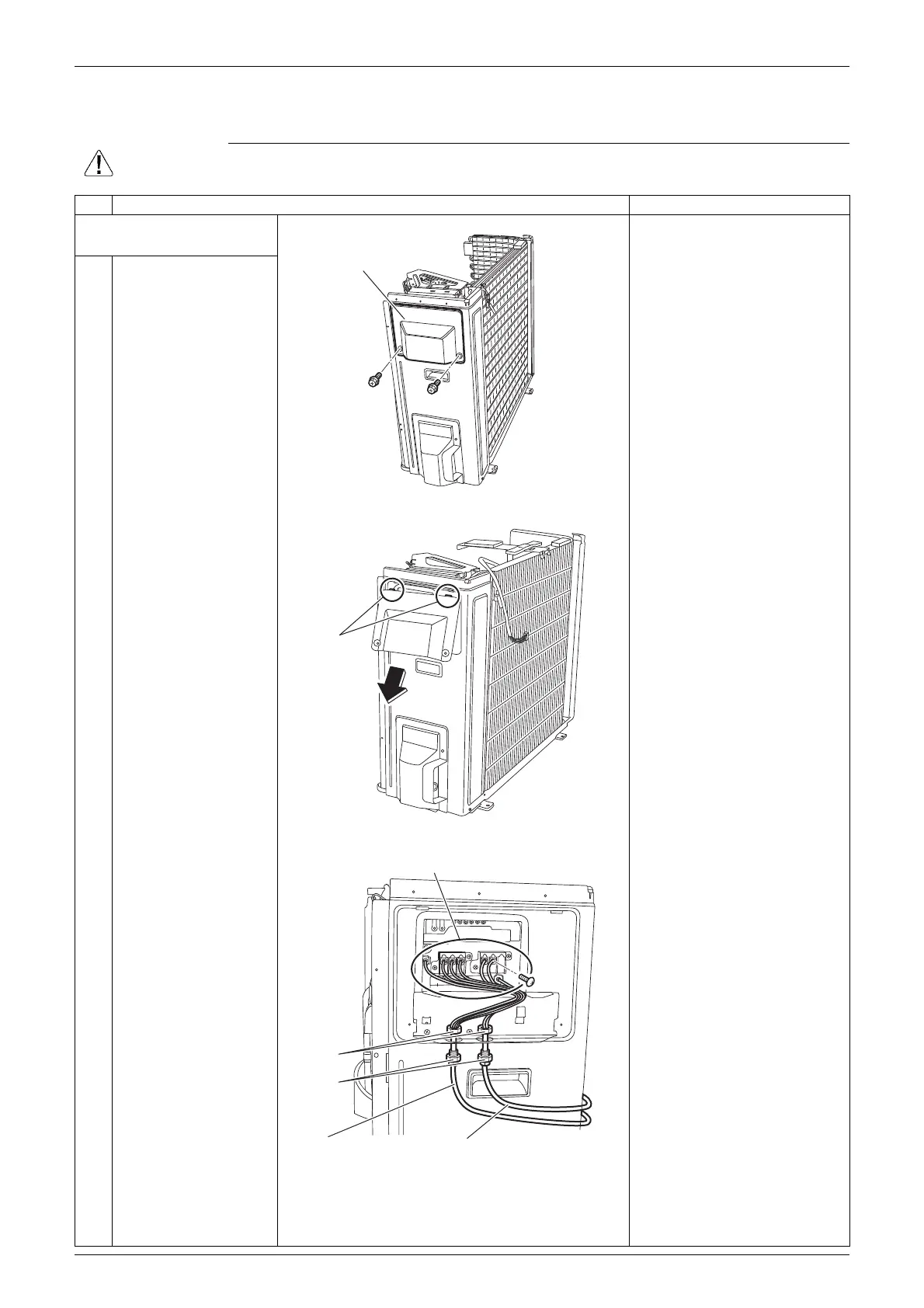

Si002155E Right Side Panel / Electrical Box
Removal Procedure 7
3. Right Side Panel / Electrical Box
Warning  Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the right side
panel.
1 Remove the 2 screws
of the terminal cover.
2
3
Open the terminal cover
and pull down to
unfasten the 2 hooks.
Remove the terminal
cover.
4
5
Loosen the 7 screws on
the terminal strip and
disconnect the
connecting wire and
power supply wire.
Loosen the 2 nuts of the
conduits and remove
the connecting wire and
power supply wire.
Terminal cover
(R24844)
(R26184)
Hook
Terminal strip
Nut
Conduit
Connecting wire
Power supply wire
(R24846)
