Wiring Diagrams SiUS122226E
282 Part 8 Appendix
Note

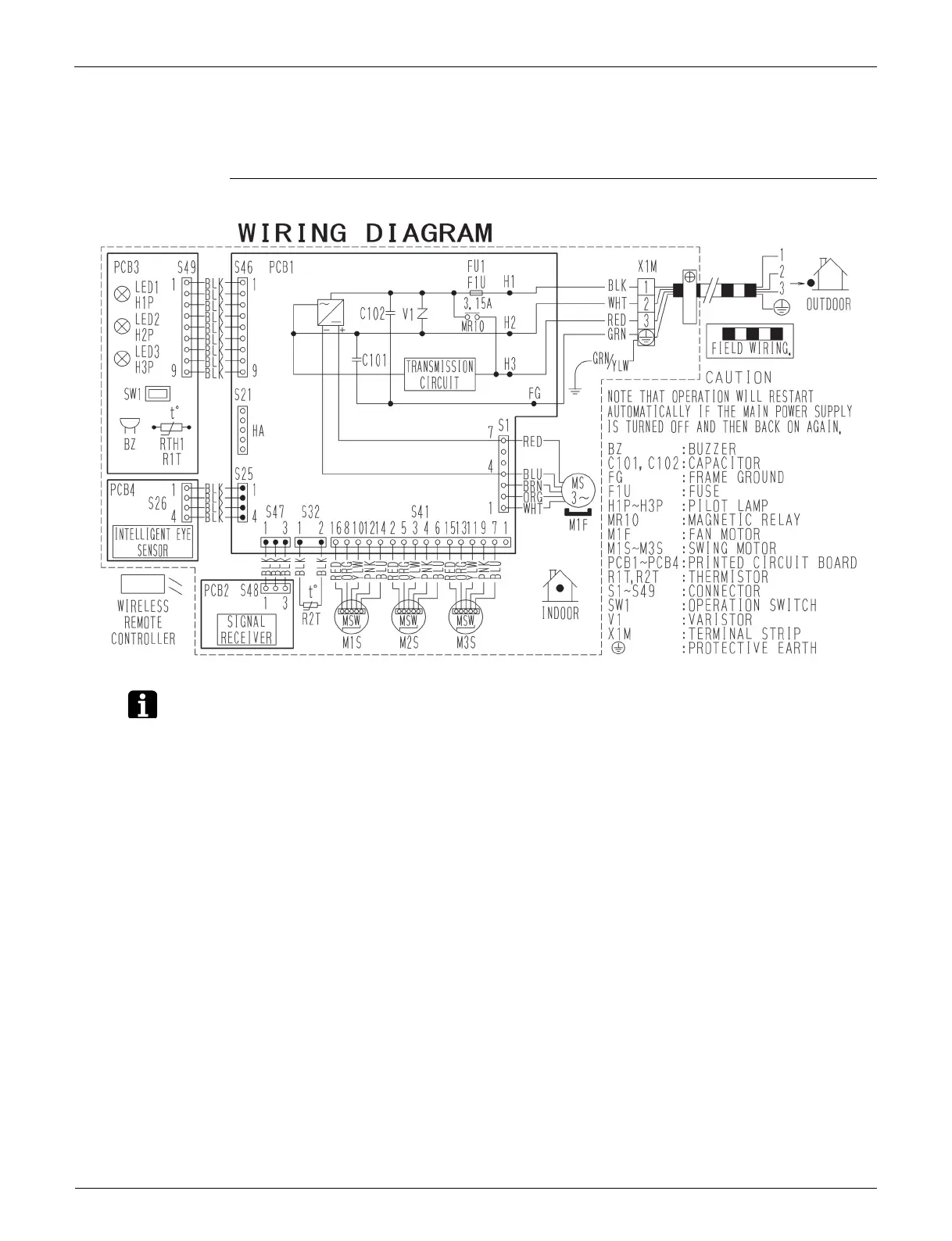

2. Wiring Diagrams
2.1 Indoor Unit
CTXS07WVJU9, FTXS09/12WVJU9
PCB1: Control PCB
PCB2: Signal receiver PCB
PCB3: Display PCB
PCB4: INTELLIGENT EYE sensor PCB
Refer to page 30 for Printed Circuit Board Connector Wiring Diagram.
3D058246M

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Daikin 4MXL36WVJU9 and is the answer not in the manual?

Daikin 4MXL36WVJU9 Specifications

General IconGeneral
Model Number4MXL36WVJU9
CategoryAir Conditioner
BrandDaikin
RefrigerantR-410A
Frequency (Hz)60
Number of Connectable Indoor UnitsUp to 4
Inverter TechnologyYes
Cooling Capacity (BTU/h)36000
Voltage (V)208-230
PhaseSingle
Wi-Fi CapableYes
