■English 6
Indoor Unit Installation
1.
Installing the mounting plate
• The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring
points on the wall.
2) Secure the mounting plate to the wall with screws.

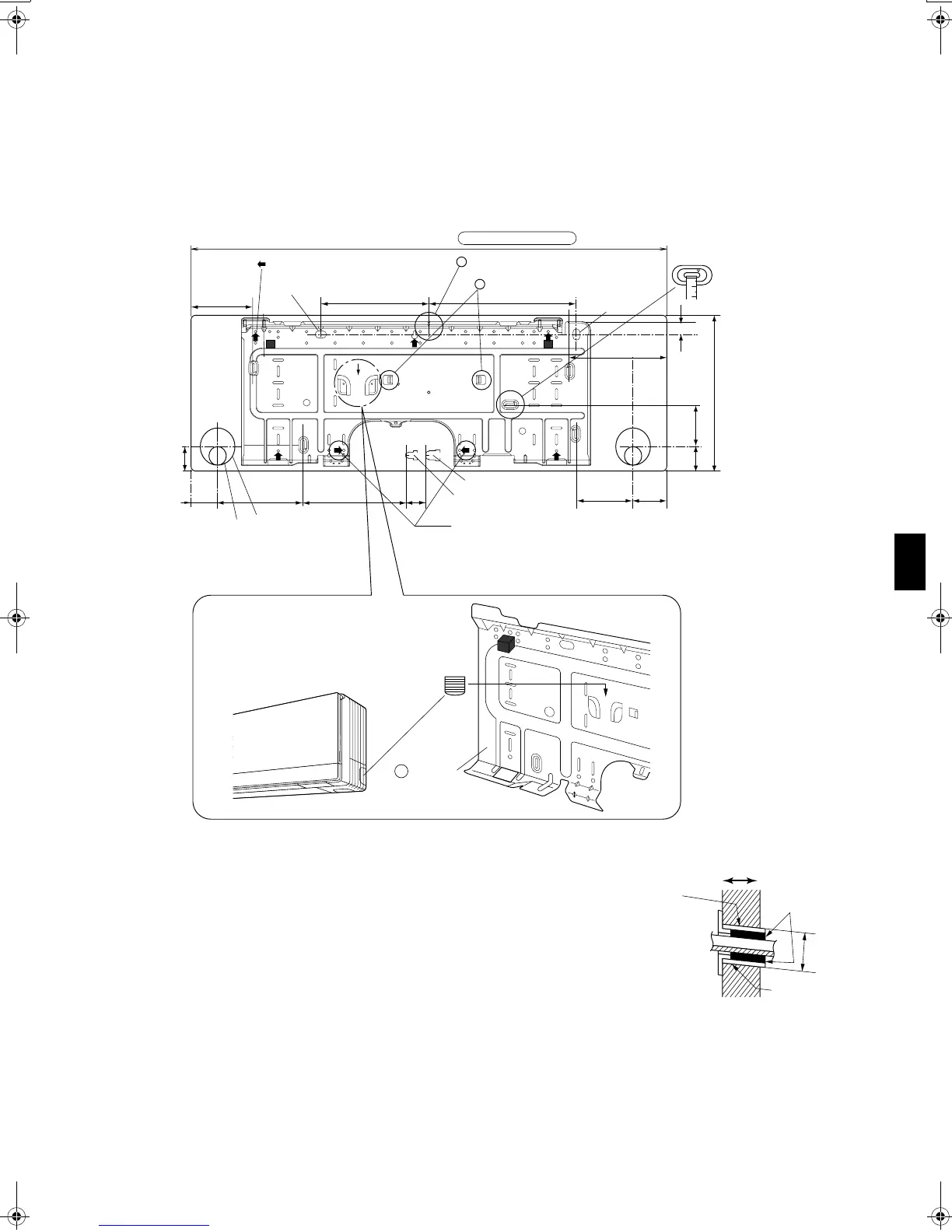

Recommended mounting plate retention spots and Dimensions
2.
Boring a wall hole and installing wall embedded pipe
• For walls containing metal frame or metal board, be sure to use a wall
embedded pipe and wall cover in the feed-through hole to prevent possible
heat, electrical shock, or fire.
• Be sure to caulk the gaps around the pipes with caulking material to prevent
water leakage.
1) Bore a feed-through hole of 65mm in the wall so it has a down slope
toward the outside.
2) Insert a wall pipe into the hole.
3) Insert a wall cover into wall pipe.
4) After completing refrigerant piping, wiring, and drain piping, caulk pipe
hole gap with putty.
275
110
100
60
170
44.5 70
23
a
b
18215048 35
44.5
840
Removed pipe
port cover
* The removed pipe port cover can be
kept in the mounting plate pocket
Mounting
plate
A
260190
(Bolt size : M10)
(Bolt size : M10)
Recommended mounting plate
retention spots (6 spots in all)
Dangle a weighted thread and
align thread with vertical arrow.
Place a leveler on raised tab.
Use tape measure
as shown.
Position the end of
tape measure at
∇
.
Unit outline
(unit: mm)
Gas pipe end
Liquid pipe end
Through-the-wall hole
Drain hose position
Leveling mounting plate
Secure the installation plate to the wall on
the side where the bottom frame and the
installation plate are secured to each other.
Inside Outside
Caulking
Wall embedded pipe
(Field supply)
Wall hole cover
(Field supply)
Wall embedded pipe
(Field supply)
φ65
01_EN_3P166464-1.fm Page 6 Saturday, September 17, 2005 11:08 AM
