7-6 Press On/Off button within about
10 seconds. The test operation starts.
Check operation condition for
3 minutes.
Note) In the case of above-men- ∗
tioned procedures 7-5 and
7-6 in reverse order, test
operation can start as well.
Press Menu/Enter button in the basic 7-7
screen. Main menu is displayed.
In the case of a model having airfl ow 7-8
direction setting function, select
Airfl ow Direction in the main menu
and check that airfl ow direction is
actuated according to the setting.
For operation of airfl ow direction
setting, see the operation manual.
After the operation of airfl ow direction 7-9
is confi rmed, press Menu/Enter button.
Basic screen returns.
Press and hold Cancel button for 7-10
4 seconds or longer in the basic
screen.
Field setting menu is displayed.
Select 7-11 Test operation ON/OFF in the
fi eld setting menu, and press Menu/
Enter button. Basic screen returns and
normal operation is conducted.
Check the functions according to the 7-12
operation manual.
When the decorative panel is not 7-13
installed, shut off the power supply
after the test operation fi nishes.
If interior work is not completed after the ●
test operation fi nish, explain to the
customer that operation should not be
performed until the interior work comple-
tion to protect the indoor unit.
(If the operation is performed, the
indoor unit may be contaminated with
the materials which arise from paints or
adhesives during the interior work, and
water splash or water leak may occur.)

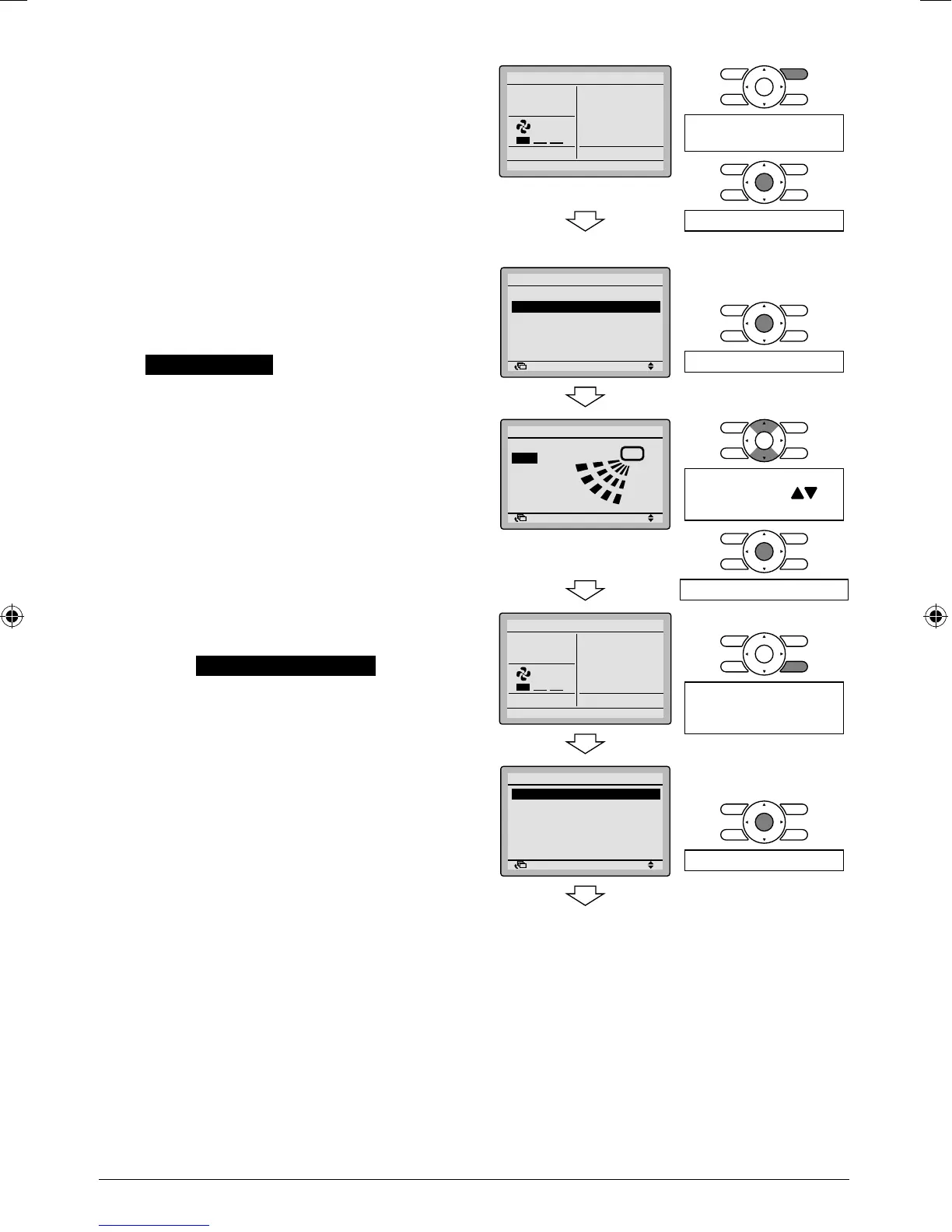

67-
77-
Set temperature
28°C
Cool
Test Operation
Press On/Off button
(within 10 seconds).
Press Menu/Enter button.
<Main menu screen>
87-
Return Setting
MainMenu
Set temp mode changeover
Airflow Direction
Quick Cool/Heat On/Off
Ventilation
Timer setting
Service Contact/Model Info
1/2
Press Menu/Enter button.
97-
Return Setting
Airflow Direction
Swing
Change the airfl ow
direction by using
(Up/Down)button.
Press Menu/Enter button.
107-
Set temperature
28°C
Cool
Test Operation
Press and hold Cancel
button for 4 seconds or
longer during backlight lit.
117-
Return Setting
Field setting
Test operation ON/OFF
Register Service Contract
Field setting list
Group No. setting
Indoor unit Airnet No. set
Outdoor unit Airnet No. set
1/2
Press Menu/Enter button.
<Basic screen>
01_EN_EM08A086.indd 1701_EN_EM08A086.indd 17 4/7/2009 7:32:16 PM4/7/2009 7:32:16 PM
