16 English

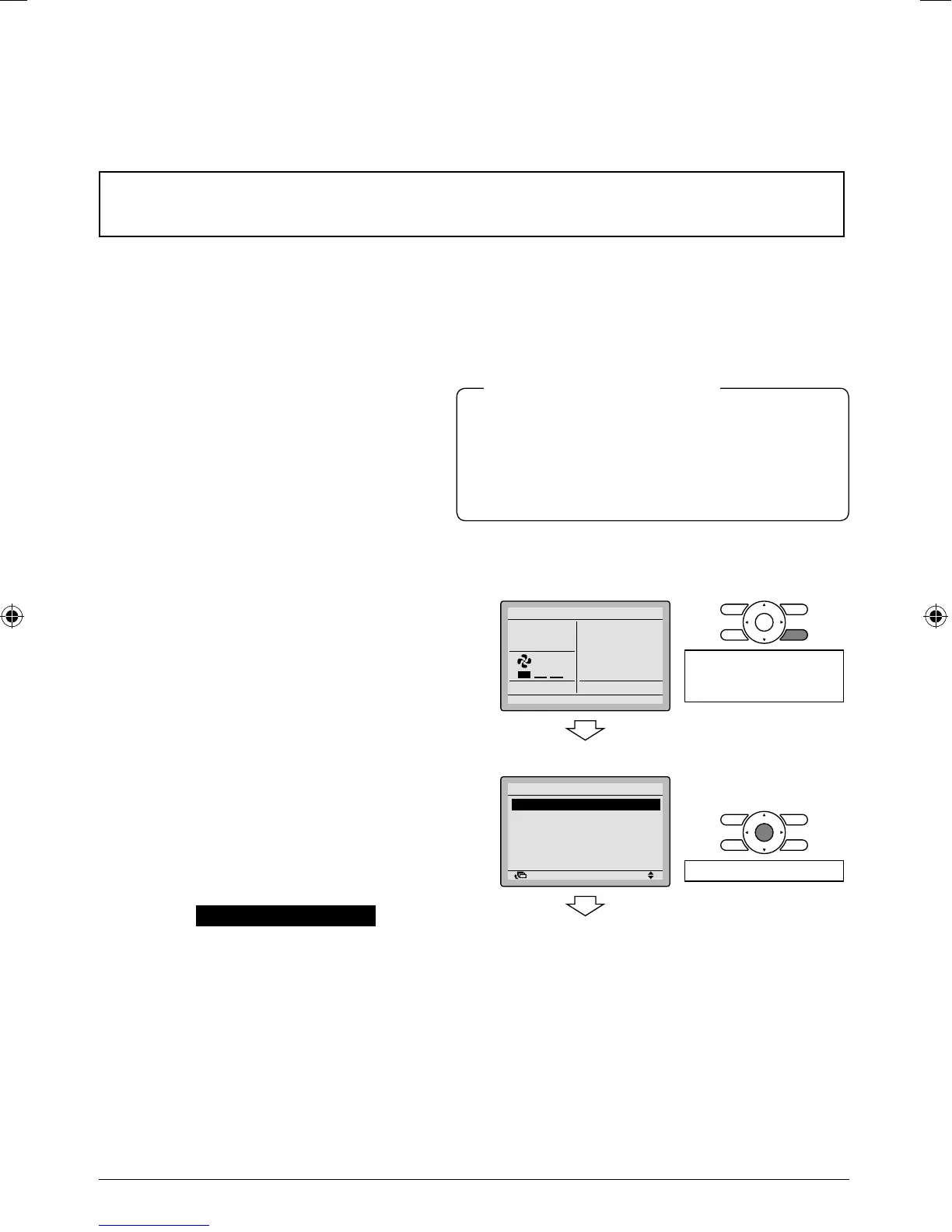

Test operation method (in the case of 7.
SkyAir)
In the case of VRV, see the manual attached to the outdoor unit.
Also see installation manuals attached to the indoor unit and the outdoor
unit.
Check that wiring work of the indoor unit and the outdoor unit is completed.
Check that EL. COMPO. BOX cover of the indoor unit and the outdoor unit is closed.
After refrigerant piping, drain piping and electric wiring are completed, clean inside of the indoor unit
and decorative panel.
Perform the test operation according to following procedure.
7-1 Make sure to turn on the power supply
more than 6 hours before operation
start with front panel closed to protect
compressor.
Con rm that stop valves of both liquid 7-2
and gas are opened.
<Make sure that outer panel and
piping cover is closed before
operation (danger of electric
shock). >
After air purge by vacuum pump,
refrigerant pressure may not rise
even though the stop valve is
opened. The reason is that refriger-
ant system of the outdoor unit is
blocked by electrical expansion valve
or the like. Operation is no problem.
Set the operation mode to cooling by 7-3
using the remote controller.
Press and hold Cancel button for 7-4
4 seconds or longer. Field setting
menu is displayed.
Select 7-5 Test operation ON/OFF in the
eld setting menu, and press Menu/
Enter button. Basic screen returns and
“Test operation” is displayed.
The backlight will be light for approximately
30 seconds by pressing any operation button.
Operate the buttons during the backlight lit.
However, On/Off can be operated concur-
rently with the backlight lit.
Notes for backlight
<Basic screen>
37-
47-
Set temperature
28°C
Cool
Return Setting
Press and hold Cancel
button for 4 seconds or
longer during backlight lit.
<Field setting menu screen>
57-
Return Setting
Field setting
Test operation ON/OFF
Register Service Contract
Field setting list
Group No. setting
Indoor unit Airnet No. set
Outdoor unit Airnet No. set
1/2
Press Menu/Enter button.
