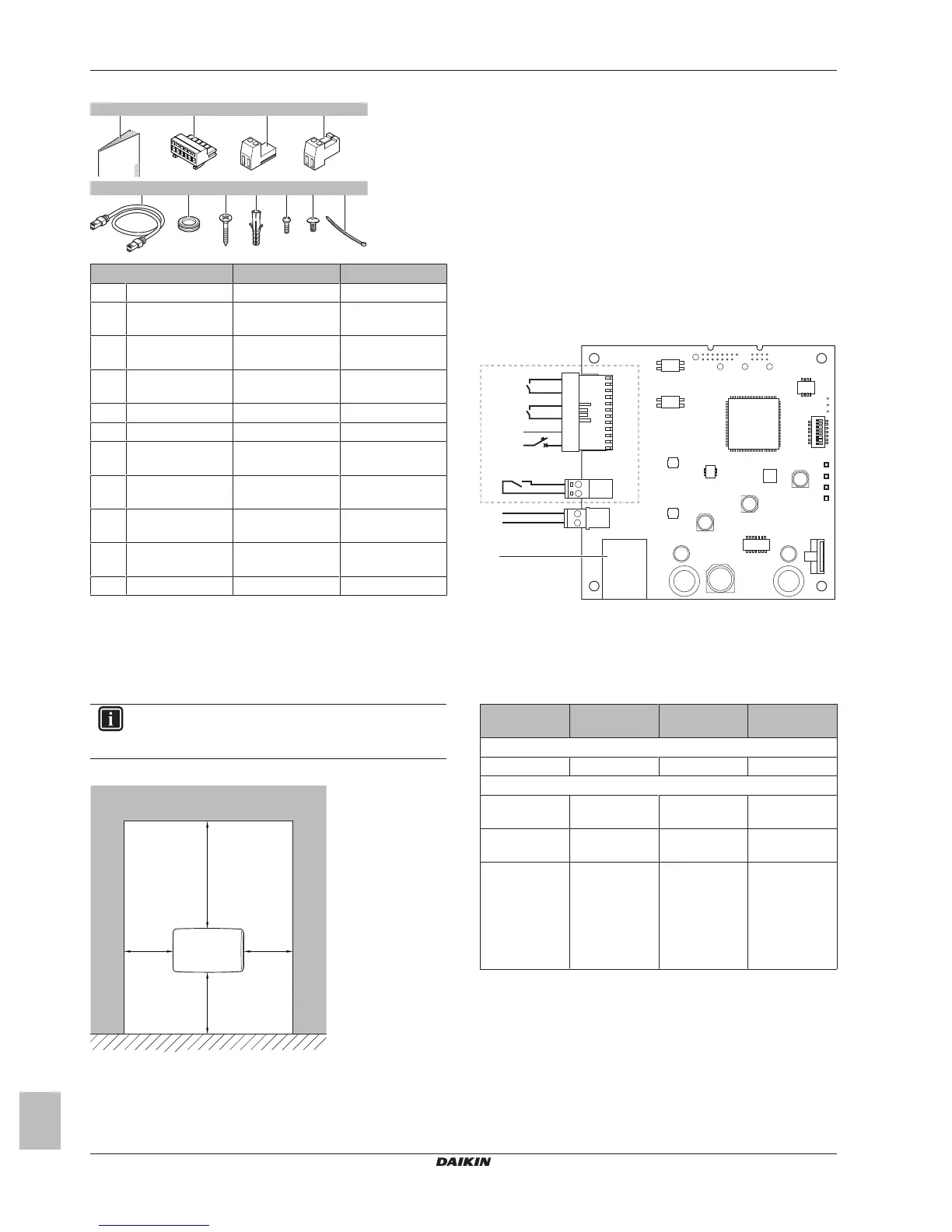

4 Preparation
Installer reference guide
8
BRP069A61+BRP069A62
Daikin Altherma LAN adapter
4P464229-1B – 2018.10
Accessories: BRP069A61
2× 1× 1×
a b c
1×
d
3× 3× 3×
f
1×
e f g h
4×
i
1× 1×
j k
Accessory BRP069A61 BRP069A62
a Installation manual O O
b 6‑pole slide
connector for X1A
O —
c 2‑pole slide
connector for X2A
O —
d 2‑pole slide
connector for X3A
O O
e Ethernet cable O O
f Grommets O O
g Screws to mount
rear casing
O O
h Plugs to mount rear
casing
O O
i Screws to mount
PCB
O O
j Screw to close
front casing
O O
k Cable tie O —
4 Preparation
4.1 Installation site requirements
INFORMATION
Also read the maximum cable length requirements set out
in "4.2Overview of electrical connections"on page8.
▪ Mind the following spacing installation guidelines:
>30 mm >30 mm
>90 mm
(a)
>160 mm
(b)
(a) Provide enough space to connect the Ethernet cable
without exceeding its minimum bend radius (typically
90mm)
(b) Provide enough space to open the casing with a flat-blade
screwdriver (typically 160mm)
▪ The LAN adapter is designed to be wall-mounted in dry, indoor
locations only. Make sure the installation surface is a flat and
vertical non-combustible wall.
▪ The LAN adapter is designed to be mounted in the following
orientation only: with the PCB on the right-hand side in the casing,
and the Ethernet connector facing the floor.
▪ The LAN adapter is designed to operate in ambient temperatures
ranging from 5~35°C.
Do NOT install the LAN adapter in the following places:
▪ In places with high humidity (max. RH=95%), such as bathrooms.
▪ In places where frost is possible.
4.2 Overview of electrical connections
Connectors
X4A
4
N
L
3
2
1
2
1
X1A
X2A
X3A
a1
A
b
c
a2
d
A BRP069A61 only
a1 To solar inverter/energy management system
a2 230VAC detection voltage
b To electricity meter
c To indoor unit (P1/P2)
d To router
Connections
Connection Cable section Wires Maximum
cable length
Accessory cables
Router (X4A) — — 50/100m
(a)
Field-supplied cables
Indoor unit (P1/
P2) (X3A)
0.75~1.25mm
2
2
(b)
200m
Electricity meter
(X2A)
0.75~1.25mm
2
2
(c)
100m
Solar inverter/
energy
management
system +
230VAC
detection
voltage (X1A)
0.75~1.5mm
2
Depends on
application
(d)
100m
(a) The Ethernet cable delivered as an accessory is 1m long.
It is, however, possible to use a field-supplied Ethernet
cable. In this case, respect the maximum allowed distance
between LAN adapter and router, which is 50m in case of
Cat5e cables, and 100m in case of Cat6 cables.
(b) These wires MUST be sheathed. Recommended strip
length: 6mm.
(c) These wires MUST be sheathed. Recommended strip
length: 6mm.
(d) All wiring to X1A MUST be H05VV. Required strip length:
7mm. For more information, see "4.2.4Solar inverter/
energy management system"on page9.
