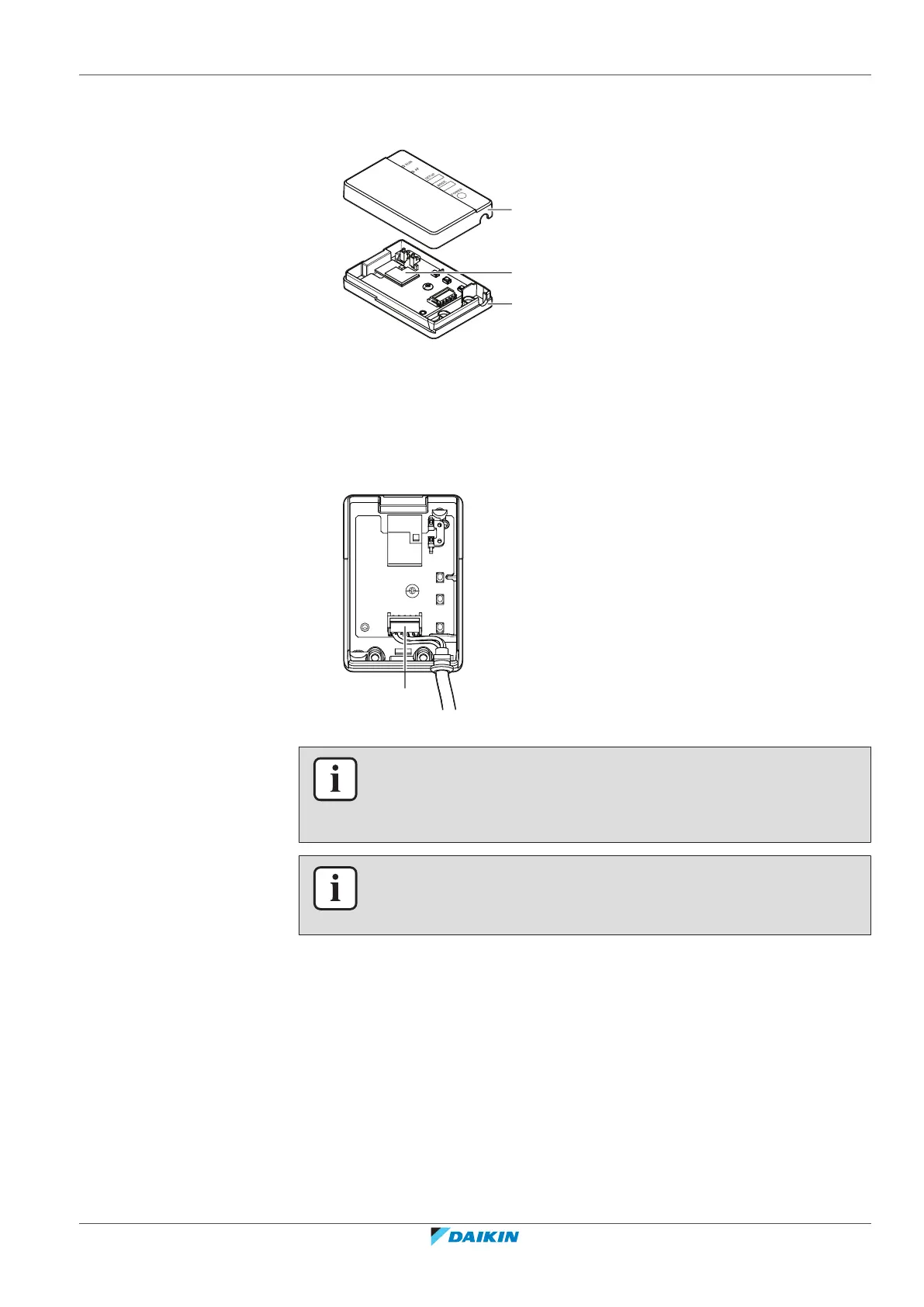

5.3.2 To connect the adapter with the unit
1 Separate the upper casing from the lower casing.
a
c
b
a Upper casing
b Adapter PCB
c Lower casing
2 Connect the forked end of the connection cable to the indoor unit.
3 Connect the other end of the connection cable to the connector on the
adapter PCB.
4 Fasten the cable and ensure strain relief.
a
a Connector
INFORMATION
Where to connect the electrical wiring on the indoor unit depends on the type of
indoor unit. For more information, see the addendum book for optional equipment
of the indoor unit.
INFORMATION
Provide strain relief at indoor unit side by using the cable tie and cable tie mounting
that are included as accessory.
5.4 Closing the adapter
5.4.1 To close the adapter
1 Hook the front casing into the rear casing.
