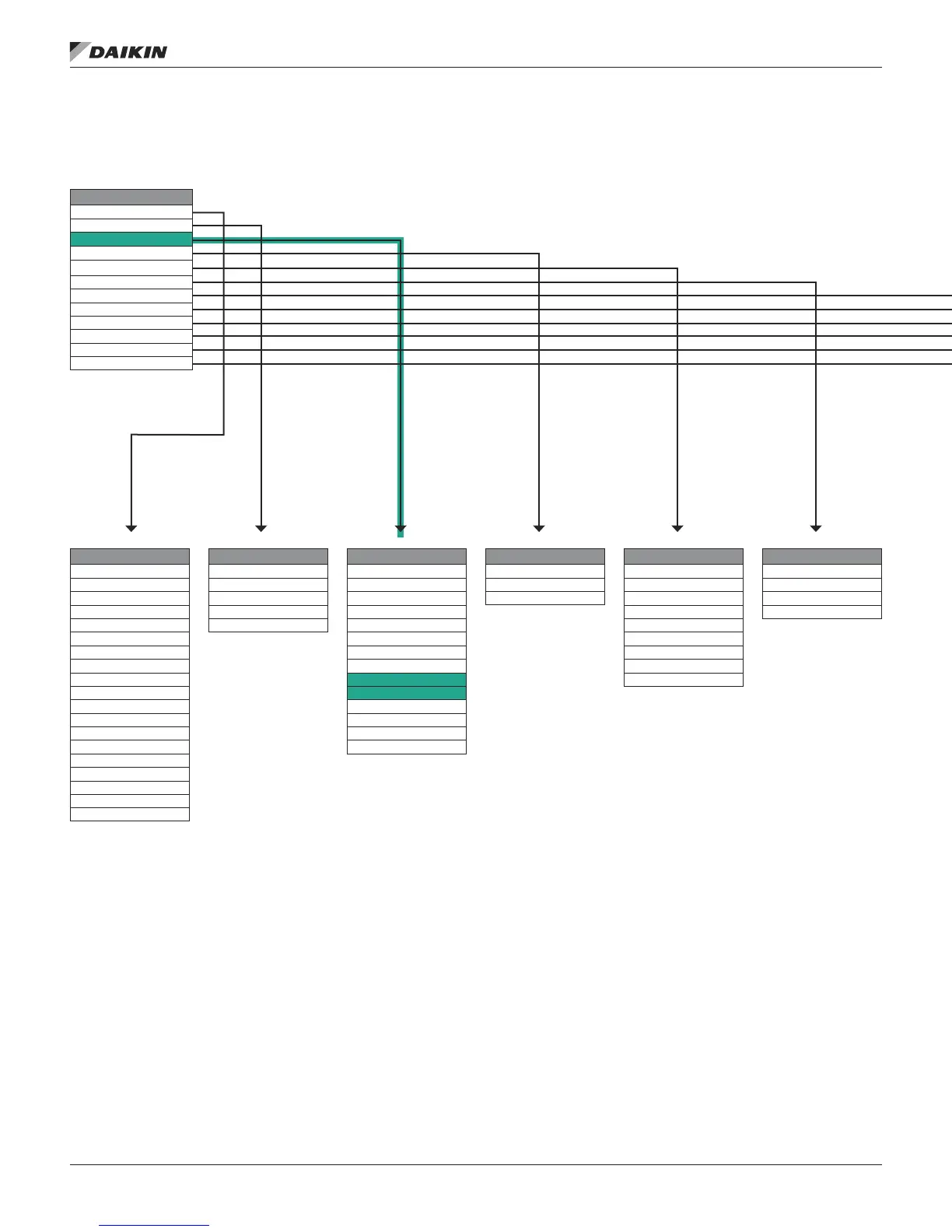

Figure 82: View/Set Unit – Keypad/Display Menu Structure
Unit Status/Settings
Unit State= ___________
Unit Status= __________
MWU Status=__________
Dehum Status= ________
Ctrl Mode= Off
Clg Status= ___________
Htg Status= ___________
Sup/Htg Status= _______
Econo Status= _________
Clg Capacity= XXX%
Htg Capacity= XXX%
Supl Htg Cap= XXX%
Reheat Cap= XXX%
SAF Speed= XXX%
RF/EF Cap= XXX%
OAD/Econo Cap=XXX%
Rel Humidiy= XXX%
Net Emrg Ovrd= Normal
Net App Mode= Auto
Temperatures
Control Temp= XXX°F
Disch Temp= XXX°F
Return Air= XXX°F
Space Temp= XXX°F
OA Temp= XXX°F
EF/LC Temp= XXX°F
ER LAT= XXX°F
ER EAT= XXX°F
DRT1= XXX°F
DRT3= XXX°F
SRT= XXX°F
DFT= XXX°F
IRT= XXX°F
ORT= XXX°F
Occupancy
Occupancy= __________
Occ Mode= Auto/Net
OccSrc= _____________
UnoccSrc= ___________
Tnt Ovrde Tm= 0 min
SAF Speed Control
SAF Speed= XXX%
Speed Cmd= XXX%
Duct Press= X.Xin
DuctSP Spt= 1.0in
IAQ PPM= XXXXPPM
OA Flw= XXXXXCFM
MinOAFlw Spt= 2000CFM
Bldg Press= X.XXin
BldgSP Spt= 0.05in
RF/EF Control
RF/EF Cap= XXX%
Speed Cmd= XXX%
Bldg Press- X.XXin
BldgSP Spt= 0.050in
Flow Status
Airow= ______________
Supply Fan= __________
Ret/Exh Fan= _________
View/Set Unit
Unit Status/Settings
►
Occupancy
►
Temperatures
►
Flow Status
►
SAF Spd Control
►
RF/EF Control
►
Cooling
►
Economizer
►
Min OA Damper
►
Heating
►
Dehumidication
►
Date/Time/Schedules
►
IM 1125-7 • REBEL ROOFTOPS 112 www.DaikinApplied.com
appendIx – keypad/dIsplay Menu sTruCTure
