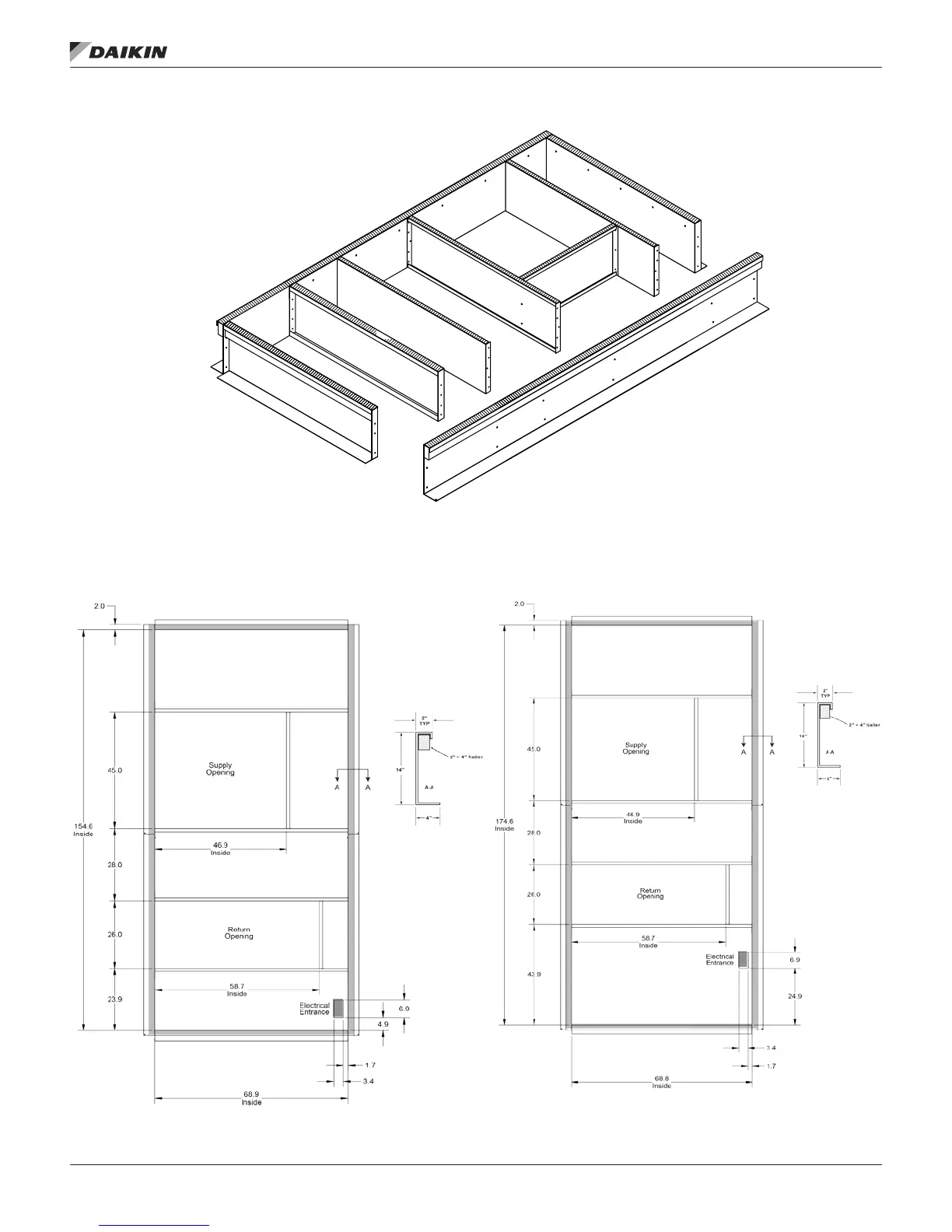

Figure 4: Roof Curb Assembly (DPS 016–028)
1
D
F
D
B
C
E
A
E
RETURN
AIR
SUPPLY
AIR
FRONT SIDE
RIGHT SIDE
BACK SIDE
LEFT SIDE
A
NOTE: 1. Check submittal drawing for gas/water/electrical/supply/return air opening
2. Horizontal above the roof gas connection only
3. All dimensions in inches
Standard Roof Curb – Large Cabinet
Roof Curb for ERW – Large Cabinet
