For the setting… Refer to…
Emitter type [3.7] "11.6.4Additional zone"[4173]
Control (read only) [3.9]
Setpoint mode [3.4]
Heating WD curve [3.5] (if
applicable)
Cooling WD curve [3.6] (if
applicable)
Schedule [3.1]
WD curve type [3.C] (read only)
Tank
Heat up mode [5.6] "11.6.6Tank"[4187]
Comfort setpoint [5.2]
Eco setpoint [5.3]
Reheat setpoint [5.4]
Hysteresis [5.9] and [5.A]
11.3 Possible screens
11.3.1 Possible screens: Overview

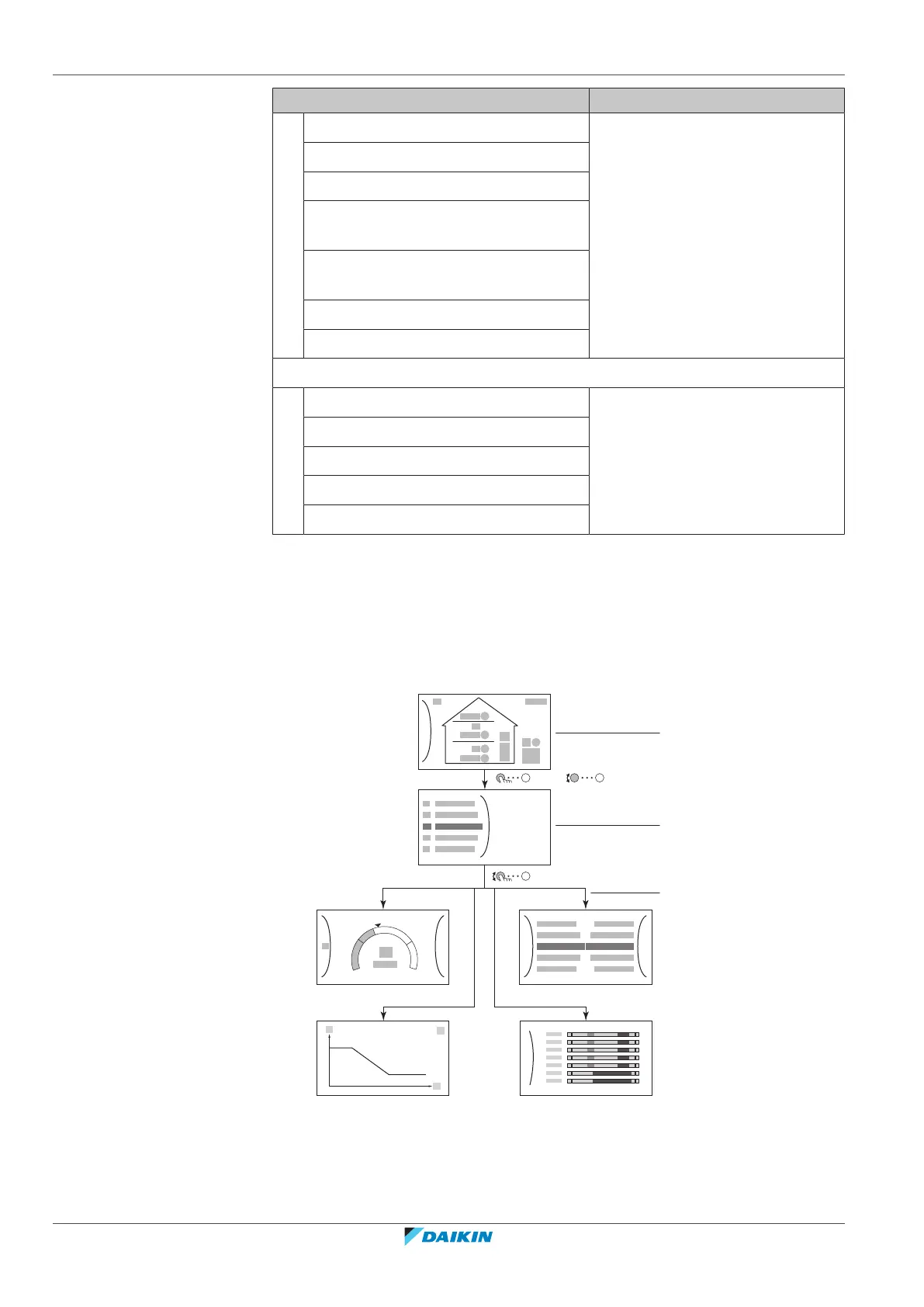

The most common screens are as follows:
+
–
a
OR
b
c
c2
c4
c1
c3
a Home screen
b Main menu screen
