7 | Unit installation
Installer reference guide
79
EPRA08~12EAV3+W1 + ETVH12SU18+23EA6V
Daikin Altherma 3 H MT F
4P644482-1 – 2021.03
4×

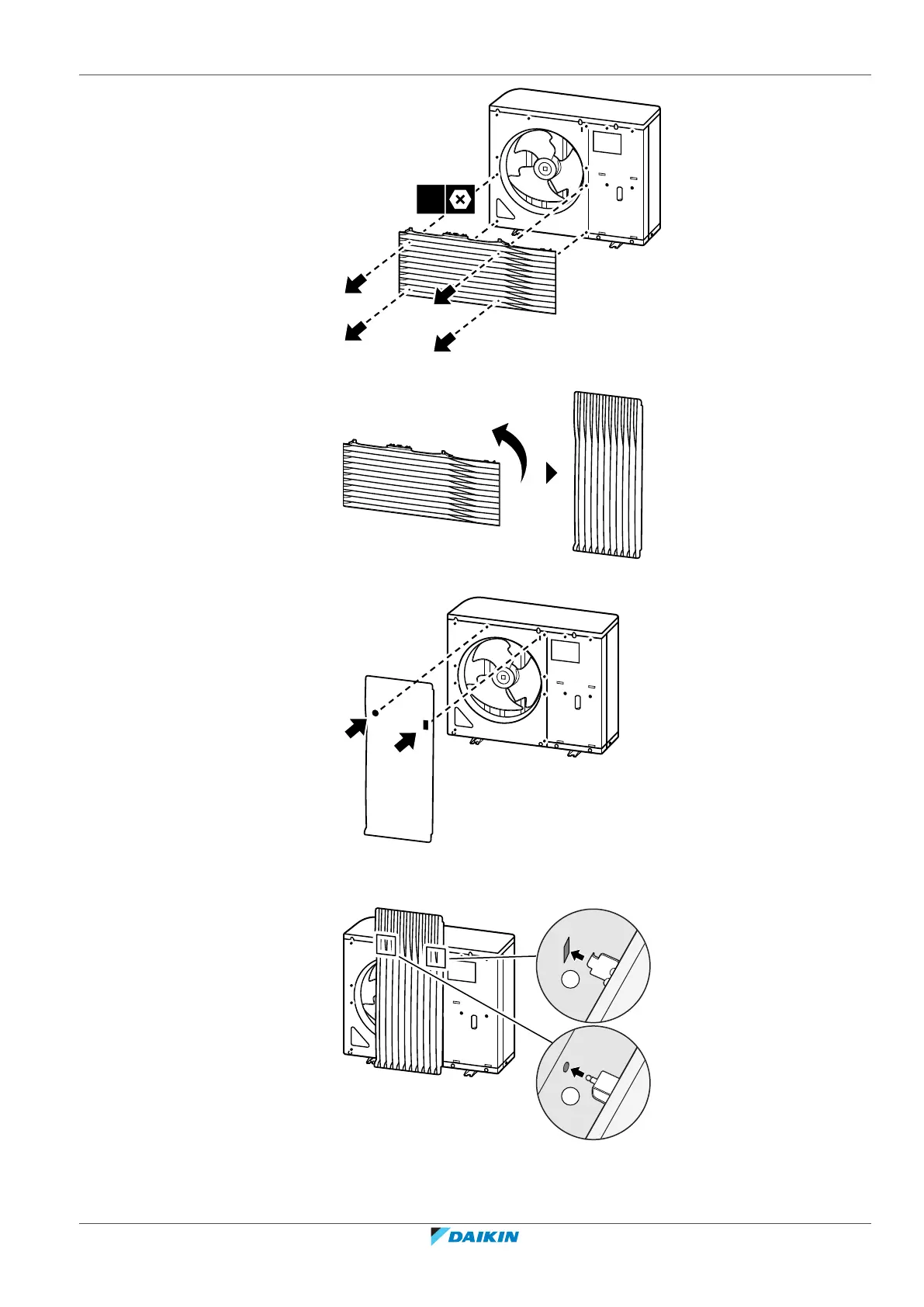

3 Rotate the lower part of the discharge grille.
4 Align the ball stud and hook on the grille with their counterparts on the unit.
5 Insert the hook.
6 Insert the ball stud.
6
5
